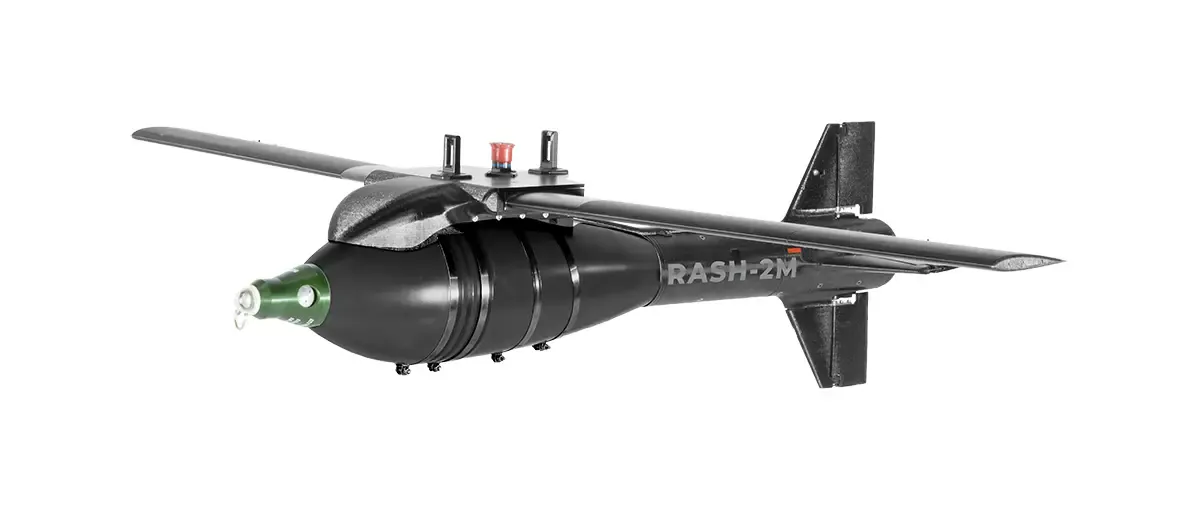

RASH – 2M
Product descripton: RASH – 2M by Adasi EDGE
The RASH – 2M converts a standard mortar into a low-cost, high-precision guided munition system capable of swiftly engaging unexpected smallto medium-sized threats. The system is ideal for patrol missions, border security, and accurately eliminating high-value threats.
Compact enough for integration into most tactical unmanned and manned aerial platforms (rotary and fixed-wing), this modern glider system features advanced automation and communication technologies. Designed and manufactured in the UAE, the RASH – 2M can support up to 24 precision guided munitions, giving users maximum flexibility during the retrofit process.
Technical specifications
KEY FEATURES
- Integrates into most tactical unmanned and manned aerial platforms
- (rotary and fixed-wing)
- Up to 24 launch slots and guided munitions possible
- Modular and configurable
SYSTEM OVERVIEW
- Launcher control box
- Real time communication system which allows transmission of data to the launch station
- Optional payload camera with target coordinates (Future upgrades)
| Wingspan | 1 m |
| Weight of guided munition | 14.5 kg |
| Max altitude | 25,000 ft |
| Max range at 5000 ft altitude | 4.5 km |
| Max range at 10000 ft altitude | 9 km |
| Max range at 15000 ft altitude | 13.7 km |
| Max range at 20000 ft altitude | 18.2 km |
| Max operating speed | 150 m/s (540 km/h) |
| Flight control | Fully autonomous |
| Guidance | GPS INS |
| Current targeting | Fixed coordinates/target of opportunity |
| Future targeting | Laser designation system |
| Max dive angle | 70 degrees |
| Fuse type | Impact (upgrade to proximity fuse in the future) |
