RATEL DEMINER
Product descripton: RATEL DEMINER by Ratel Robotics

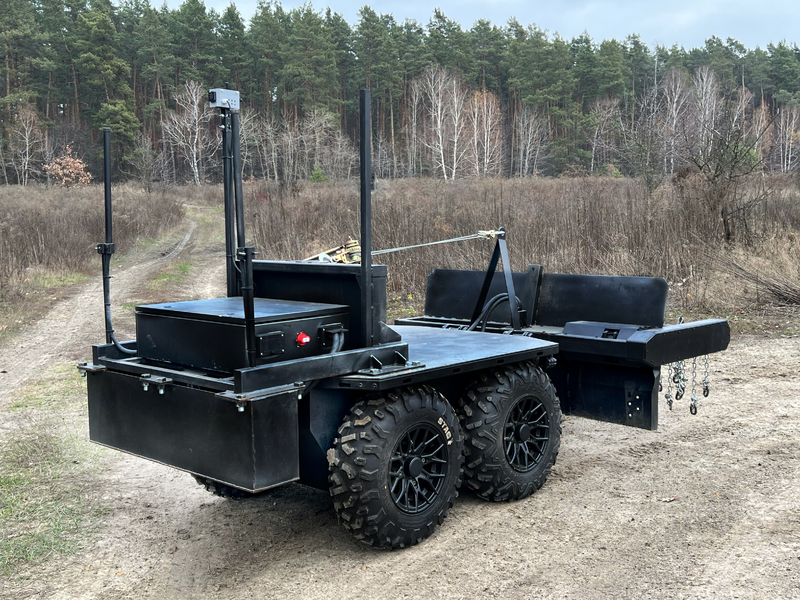

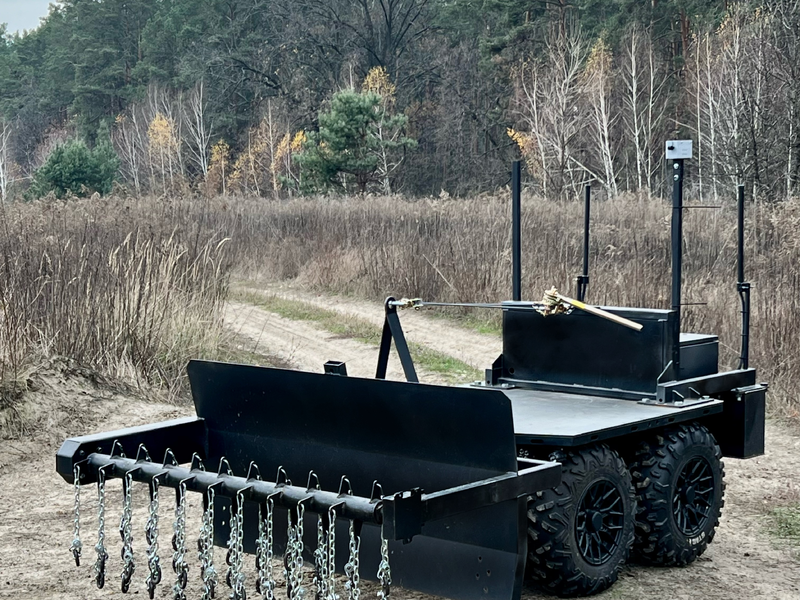

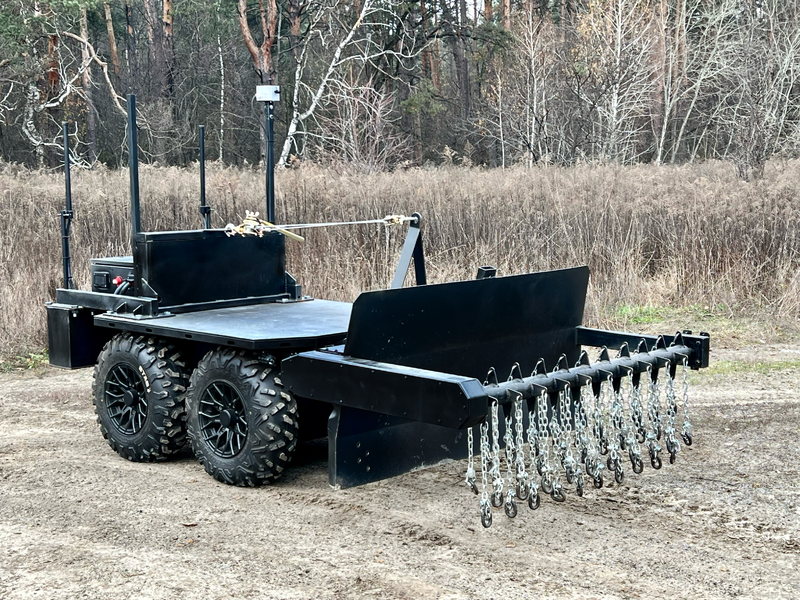

The RATEL DEMINER is a robotic demining complex created on the basis of the Ratel M logistics and evacuation platform. It is designed for the destruction of mines or activation of explosive devices using a rotary mine trawler.
The system supports remote operation and is equipped with a daytime vision camera to assist in precise navigation and control during demining operations.
Operational Role
The platform is designed for:
- Mine clearance and neutralization
- Controlled detonation of explosive devices
- Remote demining operations in hazardous zones
- Field route and area clearance
System Characteristics
RATEL DEMINER is operated remotely via a ground control station and can be supported by a multicopter repeater system for extended communication range. It is designed for low-speed, high-precision operation during mine neutralization tasks.
The system ensures operator safety by enabling remote control during active explosive hazard removal.
Equipment Set
- Remotely operated Ratel M platform with mine trawler attachment
- Ground control station
- Multicopter repeater
- Charging station
- User manual and documentation
- Additional operational components
Technical specifications
| Category | Specification |
|---|---|
| Platform Type | Robotic demining complex (UGV-based) |
| Base Platform | Ratel M |
| Mission Role | Mine clearance / explosive neutralization |
| Working Width | 1400 mm |
| Total Width (trawler) | 3050 × 1600 mm |
| Speed (neutralization) | up to 4 km/h |
| Travel Range | ≥ 10 km |
| Operational Radius | ≥ 2000 m |
| Control Range (no repeater) | ≥ 2000 m |
| Control Range (with repeater) | ≥ 6000 m |
| Sensors | Daytime camera |
| System Type | Remote-controlled mine clearance platform |
