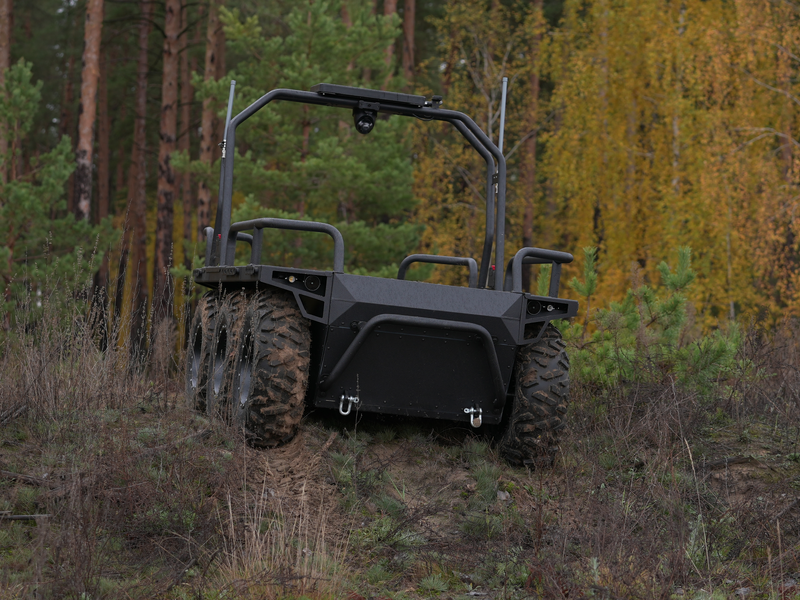

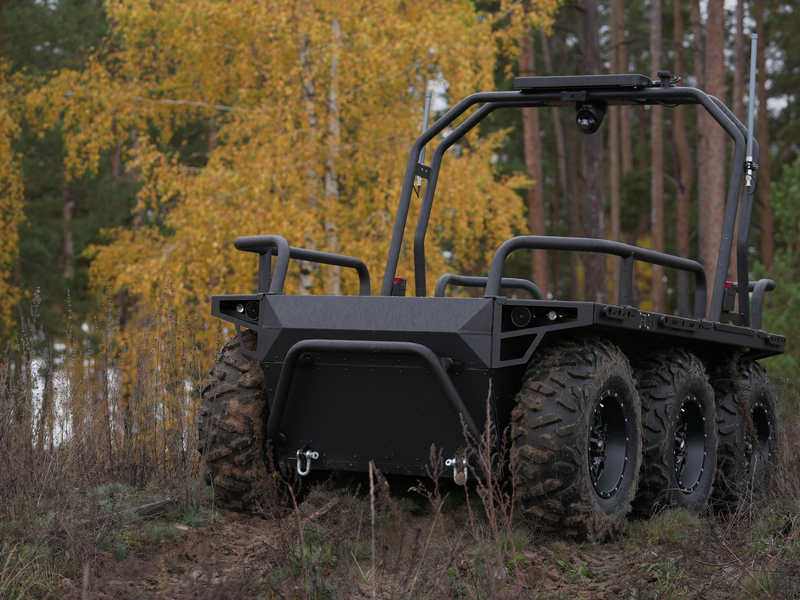

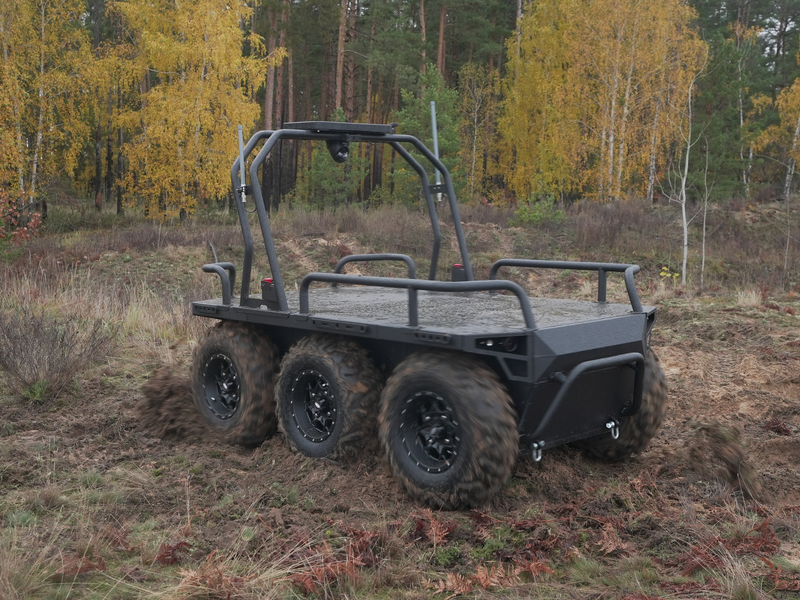

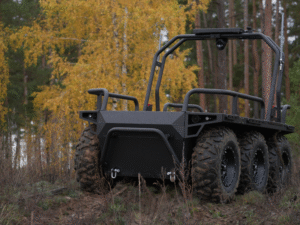

Ratel H
Product descripton: Ratel H by Ratel Robotics
The RATEL H ground robotic system is designed for multi-purpose use, including cargo transportation, ammunition delivery to positions, evacuation of wounded personnel, and installation of additional technical systems such as limited-range electronic warfare modules, combat modules, and evacuation stretchers.
It is a heavy-duty robotic logistician and tow platform intended for battlefield support in high-risk operational environments.
Operational Role
The system is designed for:
- Cargo and ammunition transport
- Medical evacuation of wounded personnel
- Installation of combat and EW modules (limited range)
- Evacuation stretcher deployment
- Tactical logistics support operations
System Characteristics
RATEL H is a remotely controlled heavy logistics platform equipped with daytime and night vision cameras. It is designed for stable operation under load and supports extended-range missions via satellite-based control systems.
The platform is optimized for multi-role battlefield logistics and support functions, combining transport and modular combat utility.
Equipment Set
- Remotely controlled Ratel H platform
- Ground control station
- Multicopter repeater
- Charging station
- Satellite-based control system
- User manual and documentation
- Additional mission modules
Technical specifications
| Category | Specification |
|---|---|
| Platform Type | Heavy robotic logistics / tow platform (UGV) |
| Mission Role | Logistics, evacuation, modular support systems |
| Payload Capacity | ≥ 400 kg |
| Total Weight | 1100 kg |
| Weight with Payload | 1500 kg |
| Dimensions | 2300 × 1300 × 1900 mm |
| Speed | 8 km/h |
| Operational Radius | ≥ 50 km |
| Travel Range (hard surface) | ≤ 60 km |
| Travel Range (off-road) | ≤ 60 km |
| Sensors | Daytime camera, night camera |
| Control System | Satellite-based remote control |
| Support Systems | Ground control station, repeater |
| System Type | Remote-controlled multifunction logistics platform |
