Ratel M
Product descripton: Ratel M by Ratel Robotics

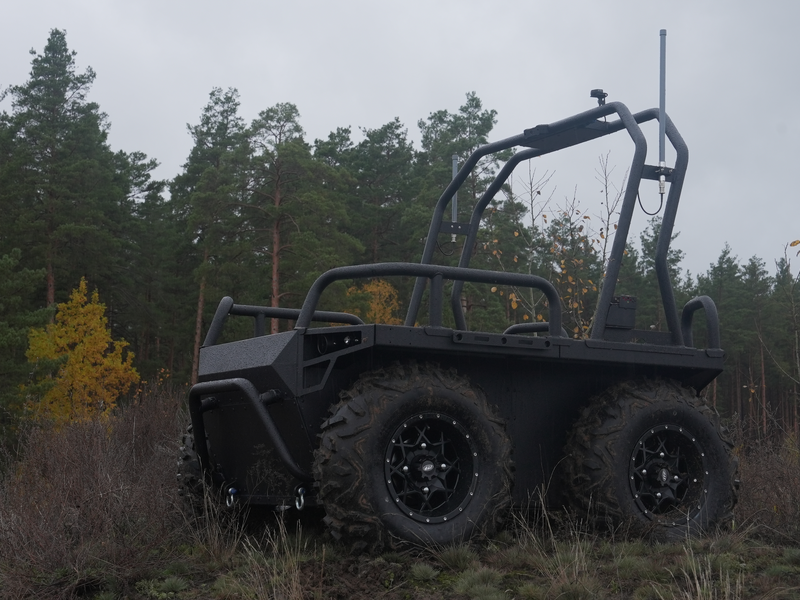

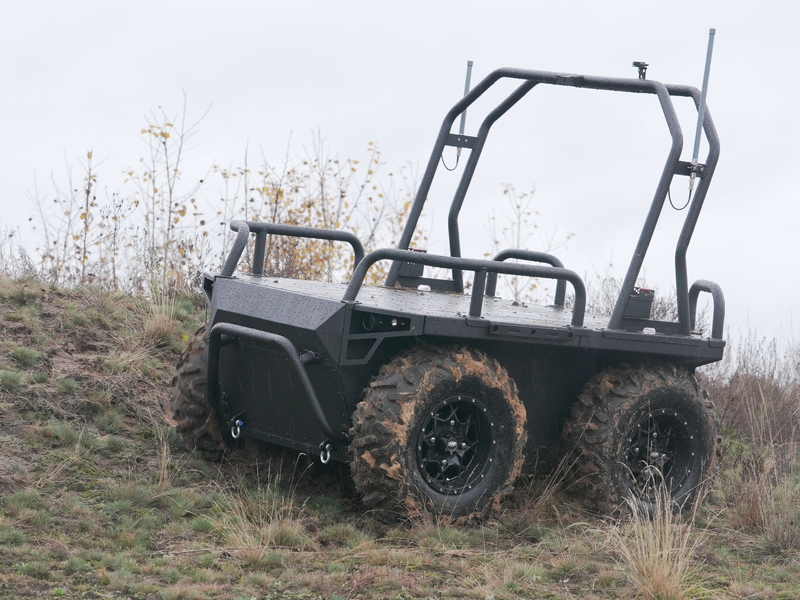

Ratel M is a ground robotic system designed for evacuation and logistics tasks with a payload capacity exceeding 200 kg. It is a multifunctional platform used across various operational fields and adapted to perform mission-specific roles.
The system is designed to transport cargo, supplies, and ammunition, and is additionally configured for medical evacuation tasks through stretcher integration.
Operational Role
The platform functions as a robotic logistician and tow vehicle, supporting:
- Cargo and ammunition delivery
- Medical evacuation and casualty transport
- Logistics support operations
- Equipment towing and field transport missions
System Characteristics
Ratel M is built for long-range field operations with extended operational radius and endurance. It is designed for use in complex environments and supports remote control via satellite-based systems, enabling operation over long distances.
The platform is adapted for installation of medical stretchers and specialized evacuation equipment.
Technical specifications
| Category | Specification |
|---|---|
| Platform Type | Ground robotic system (UGV) |
| Mission Role | Logistics, evacuation, towing |
| Payload Capacity | ≥ 300 kg (working weight ≥ 200 kg stated use) |
| Total Weight | 800 kg |
| Weight with Payload | 1100 kg |
| Speed | 8 km/h |
| Operational Radius | ≥ 50 km |
| Travel Range (loaded, hard surface) | ≥ 70 km |
| Travel Range (loaded, off-road) | ≥ 70 km |
| Dimensions | 1400 × 1200 × 1140 mm |
| Control System | Satellite-based remote control |
| Support Systems | Ground control station, repeater, charging station |
| Special Capability | Medical stretcher integration for evacuation |
| System Type | Remotely controlled robotic logistics/towing platform |
Equipment Set
- Remotely controlled platform “RATEL M”
- Ground control station
- Repeater for multicopter
- Charging station
- User manual and documentation
- Additional mission components
- Satellite-based remote control system
