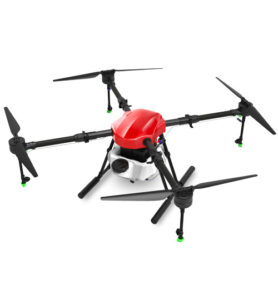

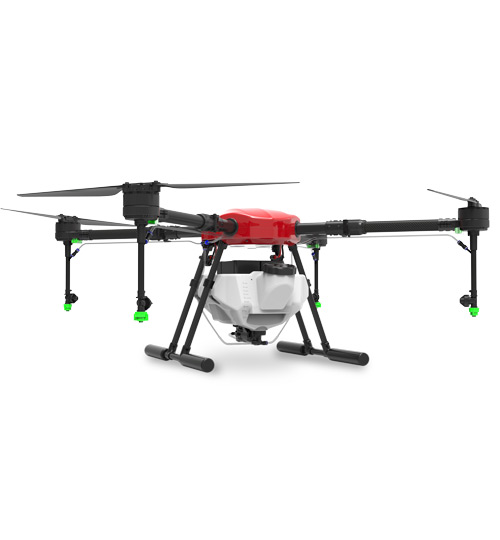

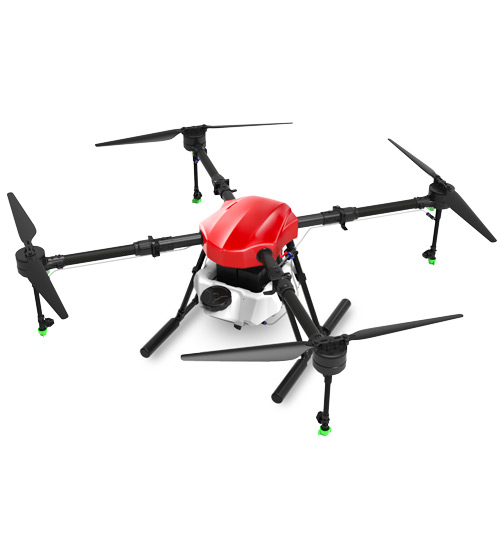

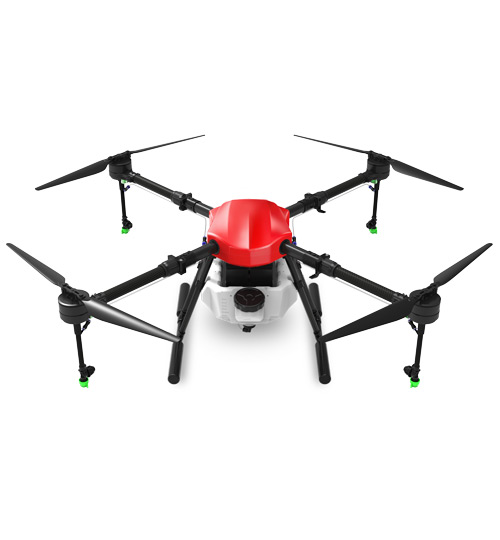

Reactive Drone Agric RDE410
Product descripton: Reactive Drone Agric RDE410 by Reactive Drone
Electric 10-liter agricultural drone Reactive Drone Agric RDE410 designed for applying agrochemicals, fertilizers, and desiccants. Ideal solution for small-scale farms.
This model is serially produced by Reactive Drones in two versions: Basic and Professional.
Basic package: Reactive Drone Agric RDE-410, 2 batteries, 1 charging station, battery tester, tool kit
Professional package: Reactive Drone Agric RDE-410, 4 batteries, 2 charging station, battery tester, tool kit
Reactive Drone Agric RDE-410 – 10-Liter Electric Agricultural Drone for Agrochemical, Fertilizer, and Micronutrient Spraying
The Reactive Drone Agric RDE-410 is ideal for small farms to treat their own fields.
Equipped with a spraying system featuring a pump capacity of 5 L/min and 4 single nozzles. The nozzles are standard slit type ST.
Actual Performance:
-
Up to 8 ha/hour (up to 2 ha per flight) on flat fields without elevation changes, with runs of 500–1000 m.
-
Up to 6 ha/hour (up to 1.5 ha per flight) on complex fields with minor elevation changes and runs of 500–1000 m.
-
Up to 4 ha/hour (up to 1 ha per flight) on complex fields with elevation changes up to 20 m and runs of 500–1000 m.
Tank capacity: 10 liters
Number of nozzles: 4 pcs
Pump capacity: 5 L/min
Application rate: 5–8 L/ha
Flight speed: up to 10 m/s
Flight altitude: up to 25 m
Maximum wind resistance: up to 10 m/s
Battery capacity: 27,000 mAh
Battery charging time (AC): 20 minutes
Battery charging time (generator): up to 25 minutes
Equipment: flow meter, altitude control radar, obstacle detection radar
Battery lifecycle: up to 1000 charge/discharge cycles or up to 1500 hectares treated
Technical specifications
| Specification | Value |
|---|---|
| Drive type | Electric |

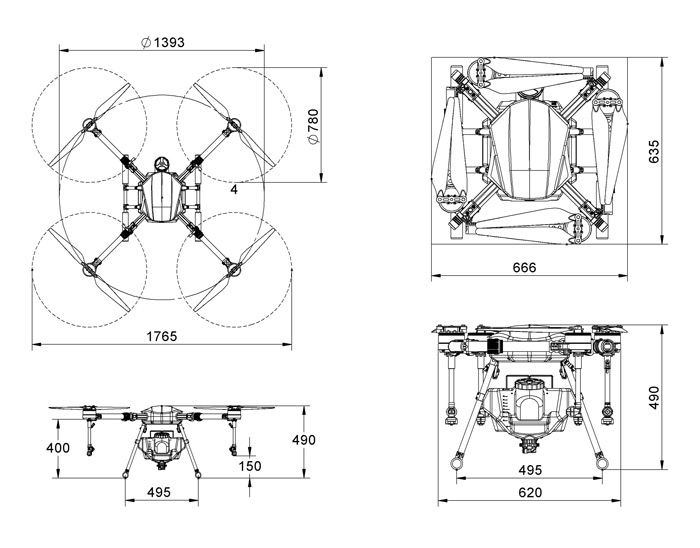

| Dimensions (in operation) | 1393(1765) × 1393(1765) × 500 mm |

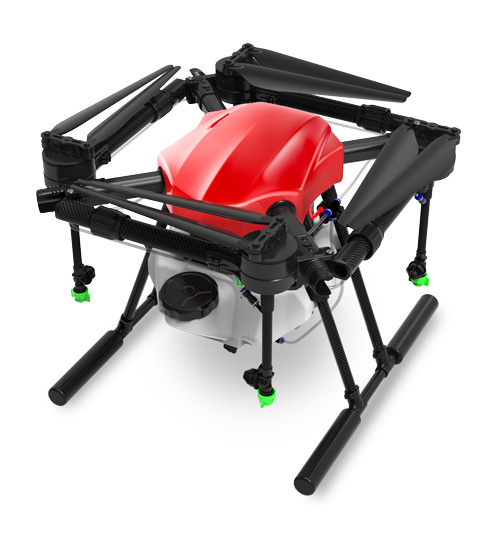

| Dimensions (folded) | 666 × 666 × 500 mm |
| UAV weight | 14 kg |
| Takeoff weight | 20 kg |
| Maximum weight | up to 31 kg |
| Motors | 4 × X8 100 kV motors |
| Propellers | 30 × 10.5 inches |
| Flight speed | 2–15 m/s |
| Spraying flight speed | 2–10 m/s |
| Flight time (empty) | at least 20 minutes |
| Flight time (with payload) | approx. 12 minutes |
| Flight altitude | 0–25 m |

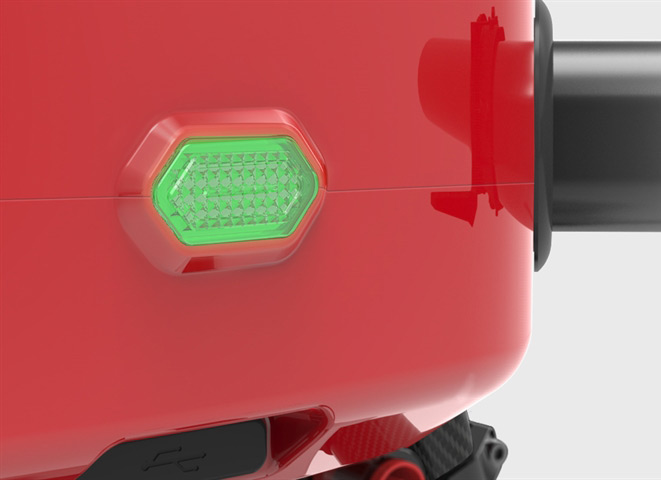

| Night flight mode | Available (2 LED illumination lights) |
| Terrain following radar | Depends on configuration |
| Obstacle detection radar | Depends on configuration |
| Spraying tank capacity | 10 (12) liters |
| Nozzles | 4 pcs |
| Spraying width | 4.5–7 m |
| Flow rate | 0.5–5 L/min (3–8 L/ha) |
| Productivity | up to 1.5 ha per flight (5–6 ha/hour) |
| Control modes | Manual / Automatic |
| Flight control system | GPS / Double IMU / RTK |
| Battery capacity | 27,000 mAh |
| Control range | up to 3 km |
| Data transmission range | 3 km |
| Photo/Video | Forward-facing HD camera |
