Reactive Drone Agric RDE616M
Product descripton: Reactive Drone Agric RDE616M by Reactive Drone

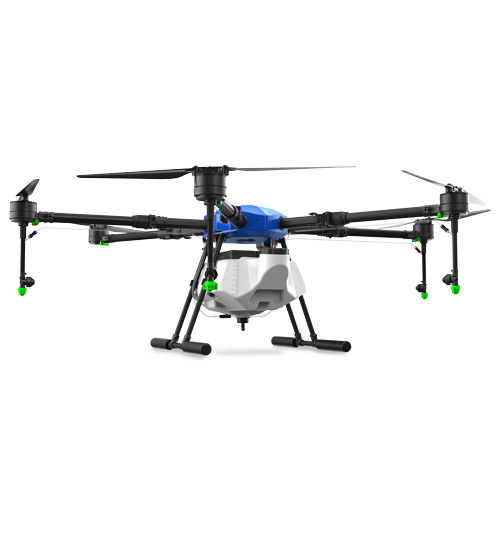

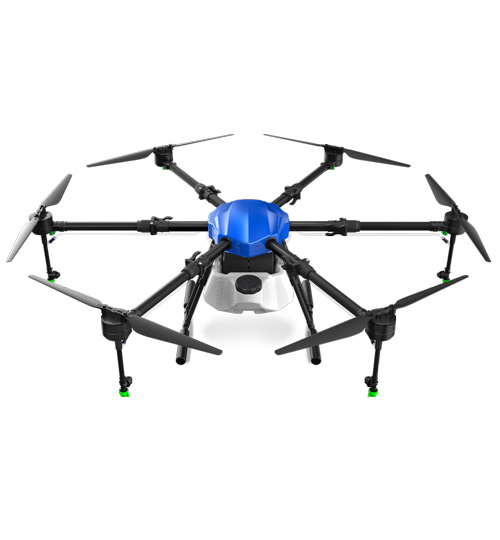

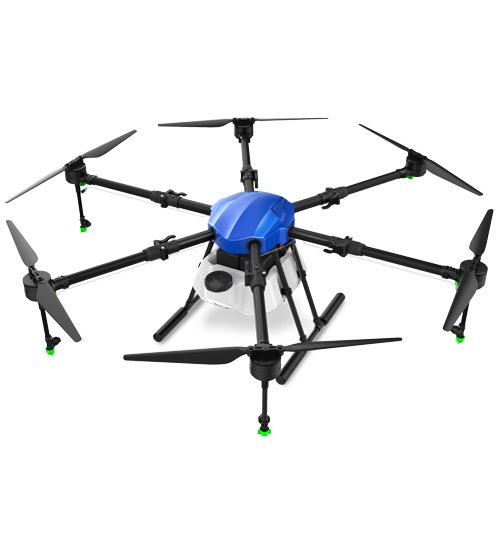

The Reactive Drone Agric RDE616M is a 20-liter, 6-rotor electric UAV designed for spraying agricultural fields with agrochemicals, fertilizers, and micronutrients.
Basic configuration: 1 drone, 2 batteries, 1 charging station, battery tester, tool kit.
Professional configuration: 1 drone, 4 batteries, 2 charging stations, battery tester, tool kit.
This professional-grade agricultural drone is ideal for large-scale agricultural enterprises with extensive land resources, as well as for service providers specializing in agrochemical application.
Actual Performance:
- Up to 10-12 ha/hour (up to 3 ha per flight) on flat fields without elevation changes, with runs of 500–1000 m.
- Up to 8-10 ha/hour (up to 2.5 ha per flight) on complex fields with minor elevation changes and runs of 500–1000 m.
- Up to 6-8 ha/hour (up to 2 ha per flight) on complex fields with elevation changes up to 20 m and runs of 500–1000 m.
Tank capacity: 20 liters
Number of nozzles: 4 pcs
Pump capacity: 6 L/min
Application rate: 5–10 L/ha
Flight speed: up to 10 m/s
Flight altitude: up to 25 m
Maximum wind resistance: up to 10 m/s
Battery capacity: 34,000 mAh Reactive Drone LiPo
Battery charging time (AC): 20 minutes
Battery charging time (generator): up to 25 minutes
Equipment: flow meter, altitude control radar, obstacle detection radar
Battery lifecycle: up to 1000 charge/discharge cycles or up to 2500 hectares treated
Technical specifications
| Specification | Value |
|---|---|
| Drive type | Electric |

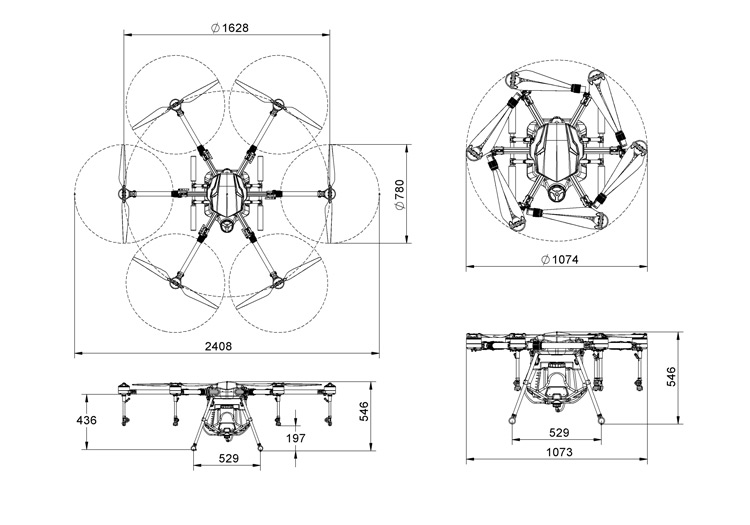

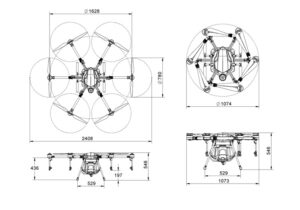

| Dimensions (in operation) | 1630(2450) × 1630(2450) × 550 mm |

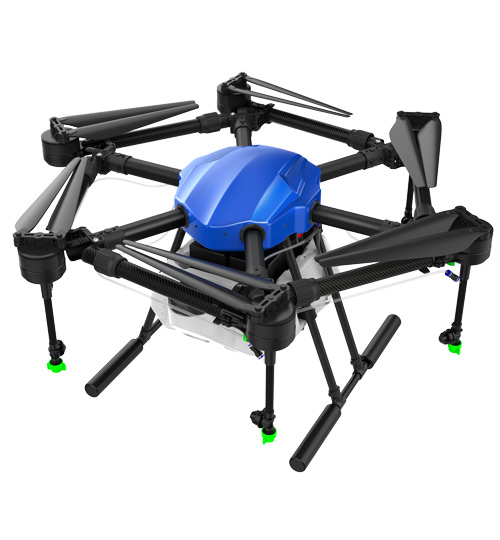

| Dimensions (folded) | 950 × 950 × 550 mm |
| UAV weight | 18 kg |
| Takeoff weight | 24 kg |
| Maximum weight | up to 45 kg |
| Motors | 6 × X8 100 kV motors |
| Propellers | 30 × 10.5 inches |
| Flight speed | 2–15 m/s |
| Spraying flight speed | 2–10 m/s |
| Flight time (empty) | at least 20 minutes |
| Flight time (with payload) | approx. 12 minutes |
| Flight altitude | 0–25 m |

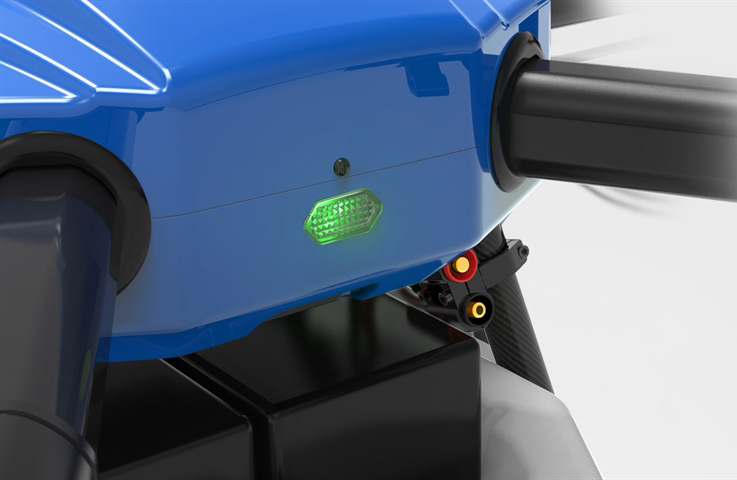

| Night flight mode | Available (2 LED illumination lights) |
| Terrain following radar | Depends on configuration |
| Obstacle detection radar | Depends on configuration |

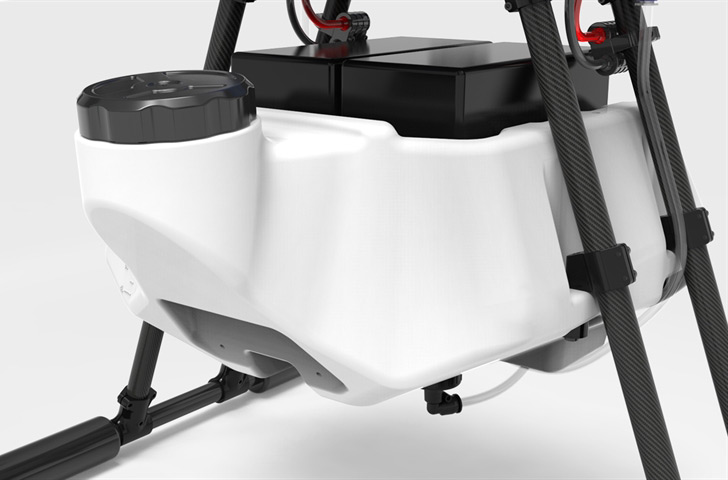

| Spraying tank capacity | 20 liters |
| Nozzles | 4 pcs |
| Spraying width | 4.5–7 m |
| Flow rate | 0.5–5 L/min (3–8 L/ha) |
| Productivity | up to 2.5 ha per flight (10–12 ha/hour) |
| Control modes | Manual / Automatic |
| Flight control system | GPS / Double IMU / RTK |
| Battery capacity | 34,000 mAh |
| Control range | up to 4 km |
| Data transmission range | 4 km |
| Photo/Video | Forward-facing HD camera |
