Reactive Drone Hybryd RDHC2015
Product descripton: Reactive Drone Hybryd RDHC2015 by Reactive Drone

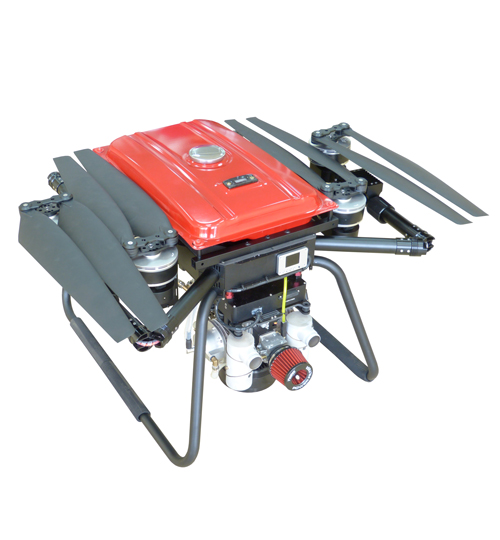

The Reactive Drone Hybryd RDHC2015 is a hybrid cargo UAV designed for transporting various payloads.
-
Standard payload capacity: 20 kg
-
Maximum payload capacity: 25 kg
-
Flight speed: up to 15 m/s
-
Flight altitude: up to 1000 meters
Flight range:
-
With 20 kg payload: up to 60 km
-
With 25 kg payload: up to 40 km
The drone is powered by a 7.5 kW gasoline-electric hybrid system with a 15-liter fuel tank.
Fuel type: A95 gasoline mixed with 2-stroke engine oil (2DT).
Propulsion is provided by electric motors with 40-inch propellers.
The control system supports:
-
Manual control up to 15 km
-
Telemetry and video transmission up to 30 km
An optional second remote controller is available upon request.
Technical specifications
| Specification | Value |
|---|---|
| Drive type | Hybrid power system 7.5 kW |
| Dimensions (in operation) | 2430 × 2430 × 550 mm |
| Dimensions (folded) | 980 × 1050 × 550 mm |
| UAV weight | 32 kg |
| Takeoff weight | 50 kg |
| Maximum weight | up to 75 kg |
| Motors | 4 × 120 kV motors |
| Propellers | 40 inches |
| Flight speed | up to 15 m/s |
| Fuel tank capacity | 15 liters |
| Fuel consumption (no payload) | 4 L/h |
| Fuel consumption (with payload) | 7 L/h |
| Flight range (with payload) | up to 60 km |
| Flight altitude | up to 1000 m |
| Obstacle detection radar | Front and rear |
| Control modes | Manual / Automatic |
| Flight control system | GPS / Double IMU / RTK |
| Battery capacity | 22,000 mAh |
| Control range | up to 15 km |
| Data transmission range | 30 km |
| Photo/Video | Forward-facing HD camera |
