Reactive Drone RDM1
Product descripton: Reactive Drone RDM1 by Reactive Drone

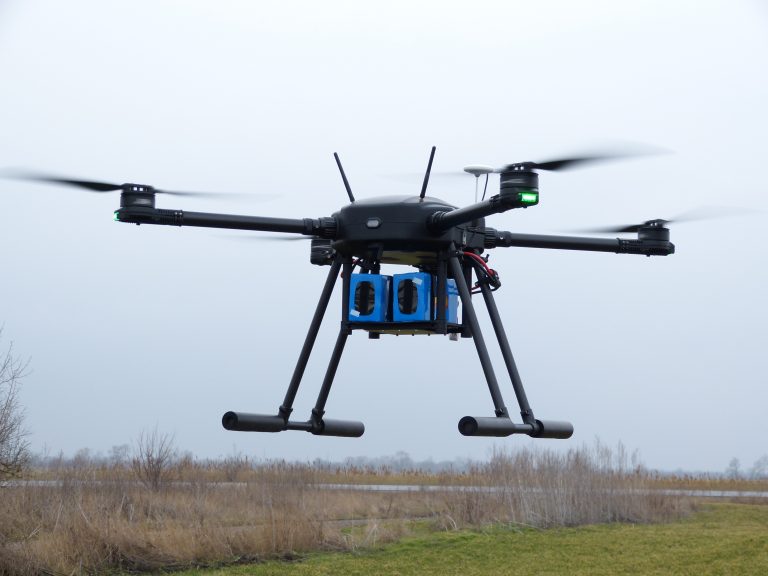

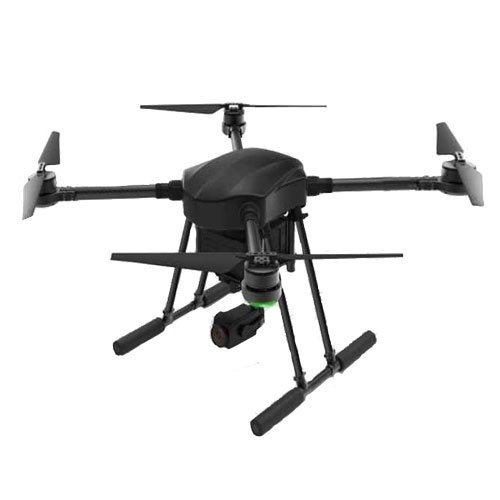

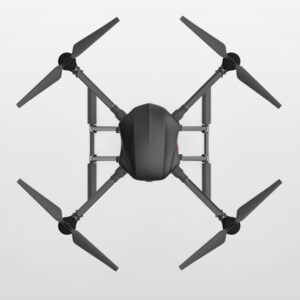

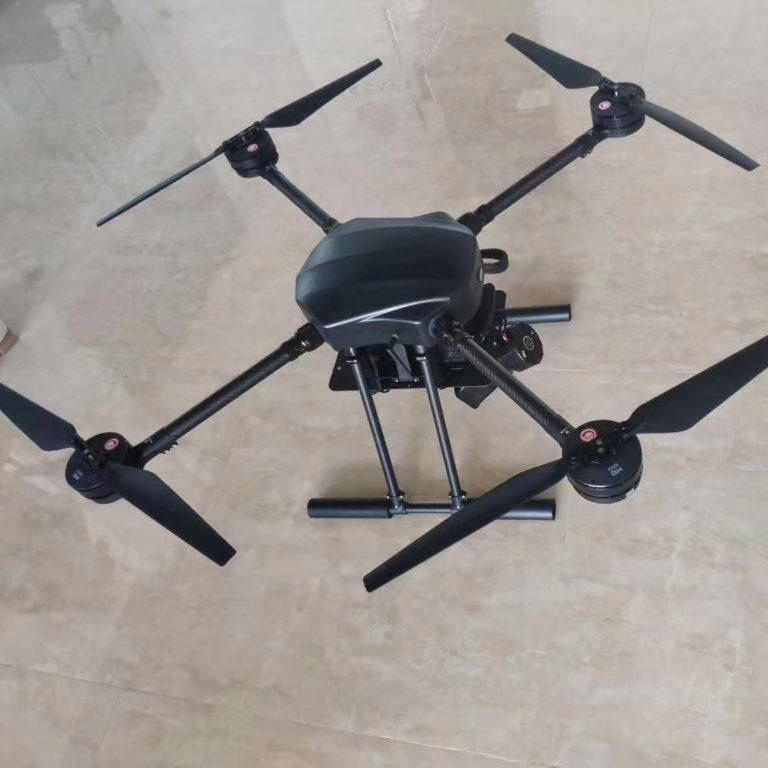

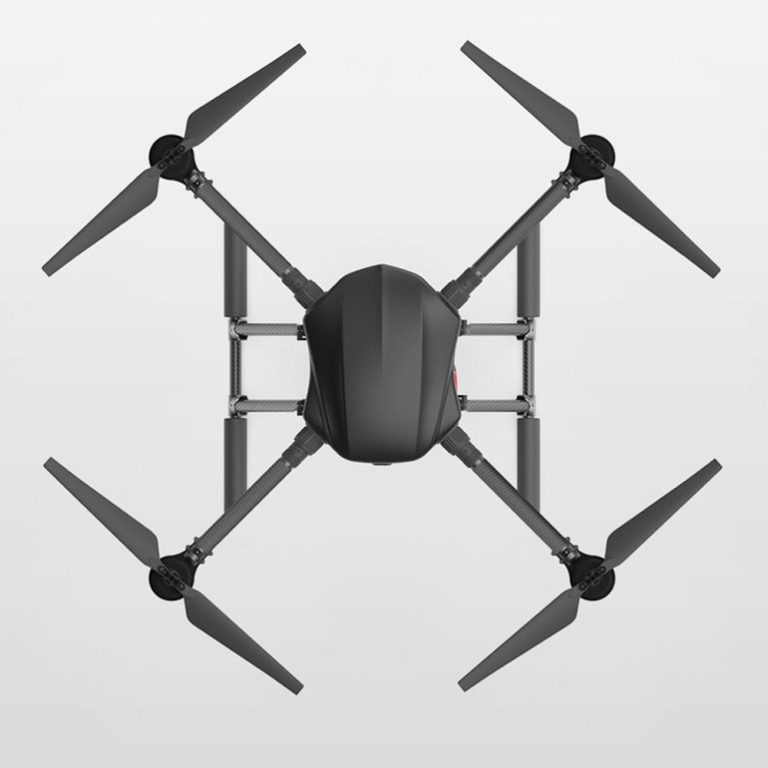

The Reactive Drone RDM1 is a monitoring UAV capable of carrying any payload system weighing up to 5 kg.
Basic version includes: drone, smart controller, one battery pack, and one charging station. It is intended for integration with various types of cameras or monitoring systems and includes mounting points for gimbal stabilizers.
The Reactive Drone RDM1 provides an average flight time of approximately 60 minutes with an LIHV 24,000 mAh 15C battery pack, and up to 100 minutes with an LIHV 30,000 mAh 10C battery pack.
Thanks to its structural design and relatively high weight, the drone delivers excellent flight stability and wind resistance, even in strong wind conditions.
Technical specifications
| Specification | Value |
|---|---|
| Drive type | Electric |
| Dimensions (in operation) | 800(1200) × 800(1200) × 500 mm |
| Dimensions (folded) | 500 × 500 × 500 mm |
| UAV weight | 6.5 kg |
| Takeoff weight | 12 kg |
| Maximum weight | up to 18 kg |
| Motors | 4 motors |
| Propellers | 24-inch |
| Flight speed | up to 15 m/s |
| Flight time (with payload) | approx. 12 minutes |
| Flight altitude | up to 1000 m |
| Night flight mode | Available (2 LED illumination lights) |
| Obstacle detection radar | Front and rear |
| Control modes | Manual / Automatic |
| Flight control system | GPS / Double IMU / RTK |
| Battery capacity | 27,000 mAh |
| Control range | up to 15 km |
| Data transmission range | 15 km |
| Photo/Video | Forward-facing HD camera |
