REAV-60
Product descripton: REAV-60 by HydroSurv

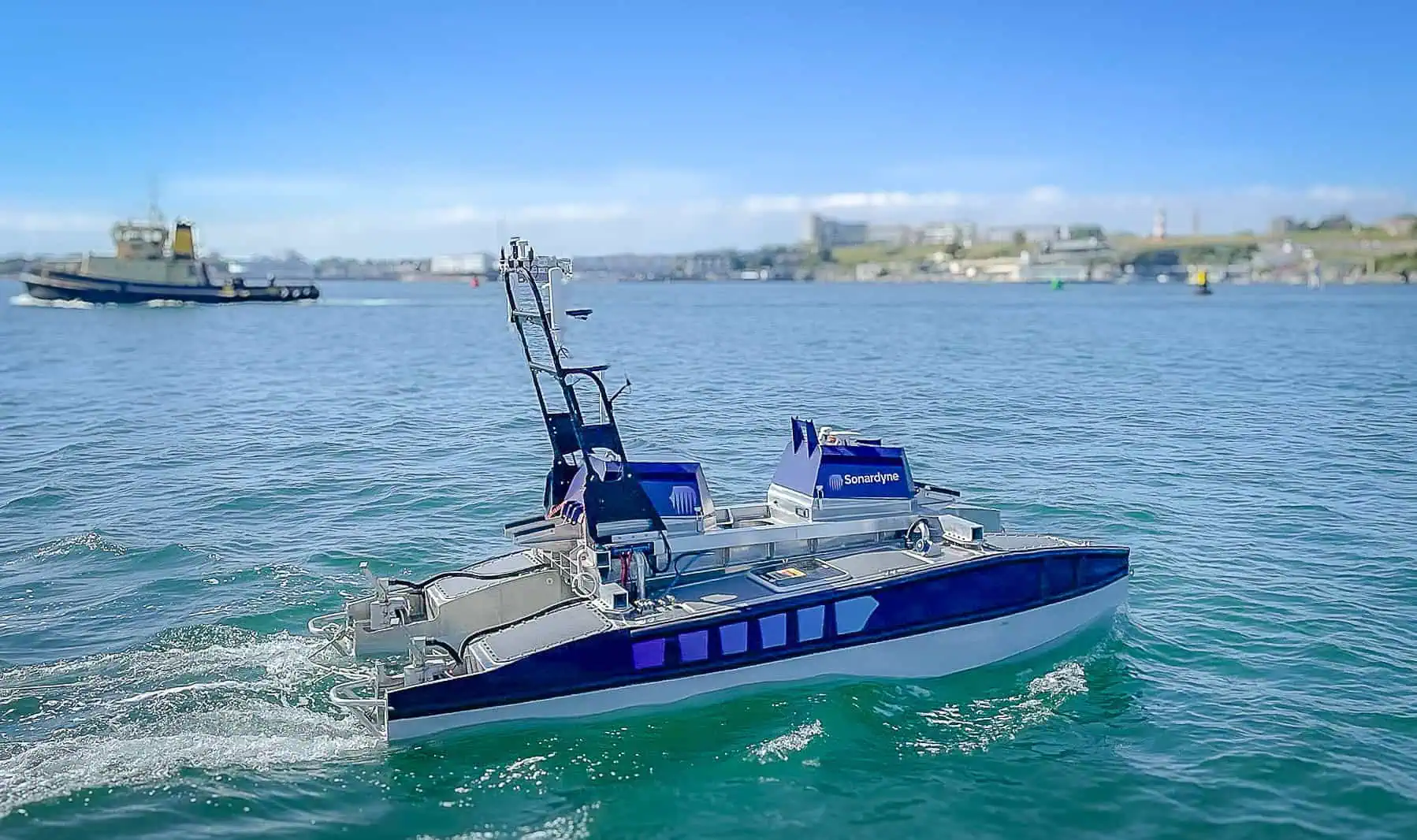

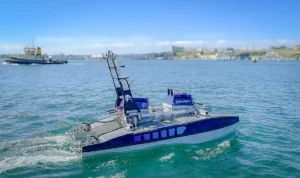

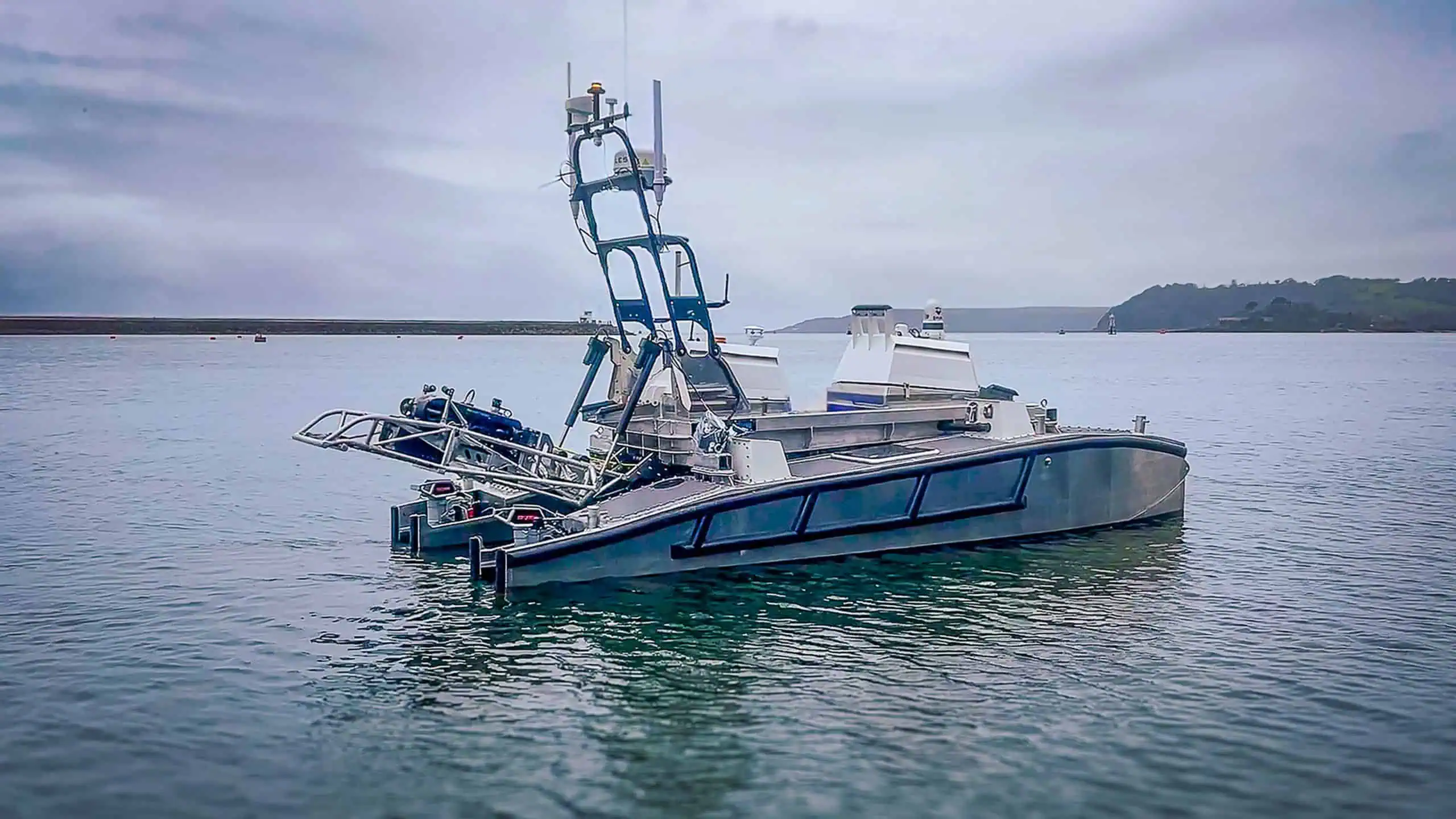

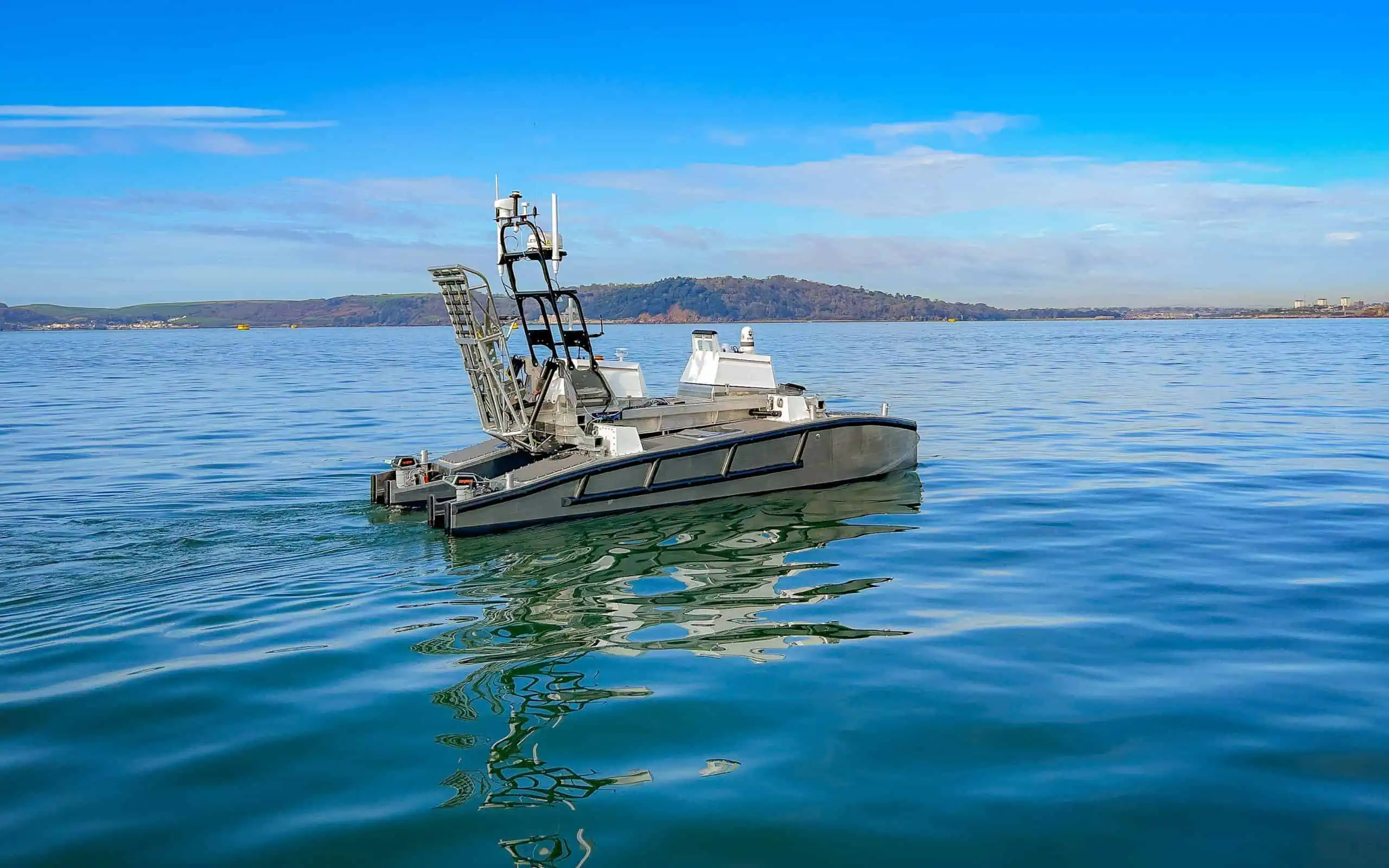

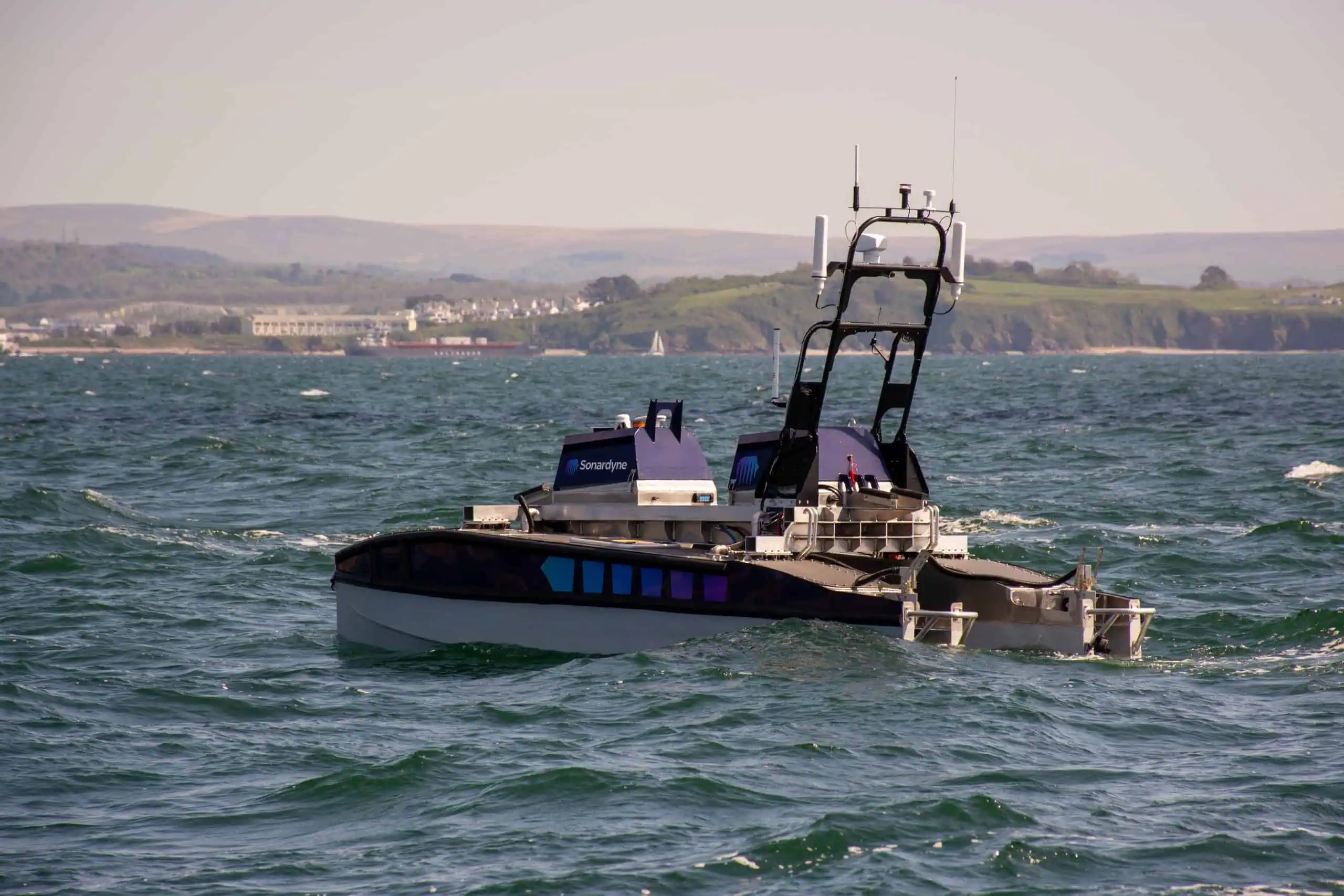

HydroSurv’s REAV-60 is a long-endurance, commercial-duty battery-hybrid USV designed for demanding hydrographic, geophysical and subsea inspection missions. Its core design principle is versatility, enabled through modular payload skids and field-proven integration of inspection-class ROV systems.

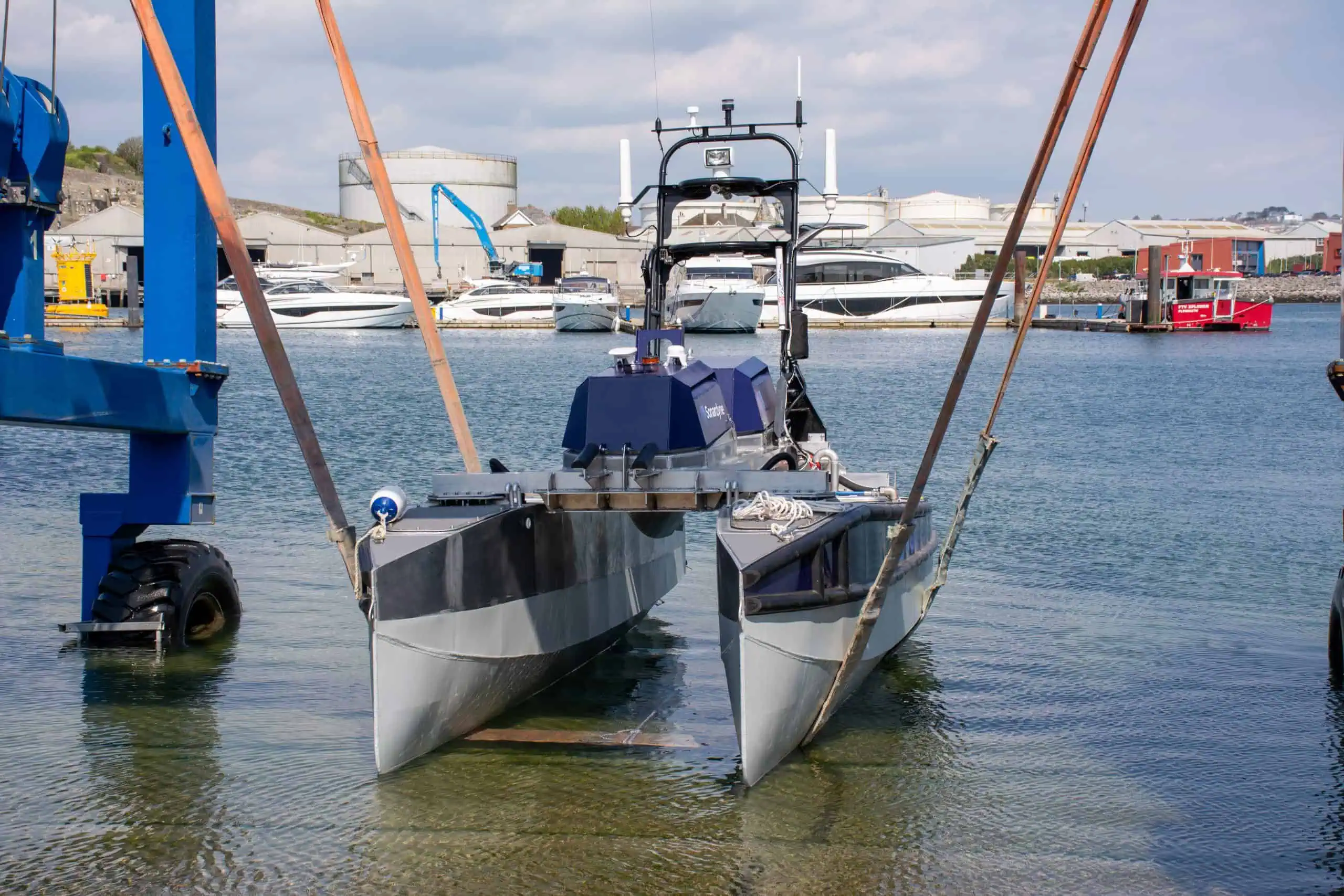

- Modular design approach, featuring demountable demi-hulls and interchangeable payload skids, enabling multiple survey and inspection configurations from a single platform design.
- Robust battery-hybrid power system with dual 8kW 48vDC generators and 24kWh battery capacity, engineered to support sustained commercial-duty payload operations.
- Twin 8kW steerable pod drives with rim-driven propellers, optimised for precise manoeuvring and well-suited to towing sensors or umbilical connected subsea equipment.
- 380 litre fuel capacity supporting extended endurance, including self-transiting survey and inspection campaigns without frequent refuelling.

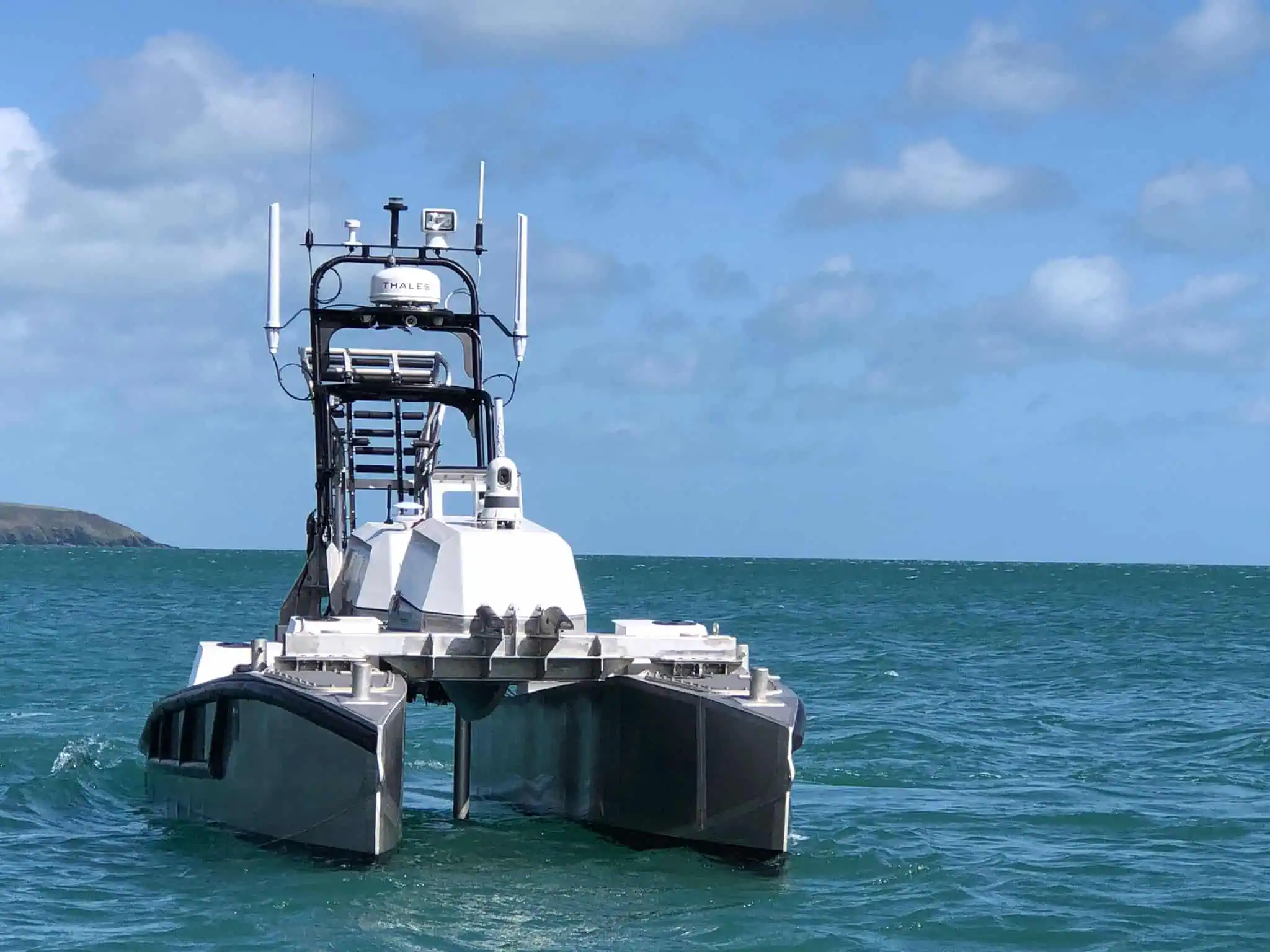

- Designed from inception for Beyond Visual Line of Sight (BVLoS) operations, with a comprehensive navigation, communications and situational awareness suite.
Technical specifications
| Specification | Value |
|---|---|
| Length Overall | 5.7 m |
| Length at Waterline | 5.32 m |
| Lightship Displacement | 2,300 kg (hybrid configuration) |
| Hull Form | Symmetrically-hulled catamaran |
| Construction | 5083 marine-grade aluminium alloy |
| Propulsion | Hybrid |
| Fuel Capacity | 380 litres |
| Maximum Speed | 6.5 knots |
| Communications | 2.4/5 GHz radio, 4G/LTE, and Starlink with network management system |
| Payload Capacity | 200 kg |
