RED KITE
Product descripton: RED KITE by RV Connex

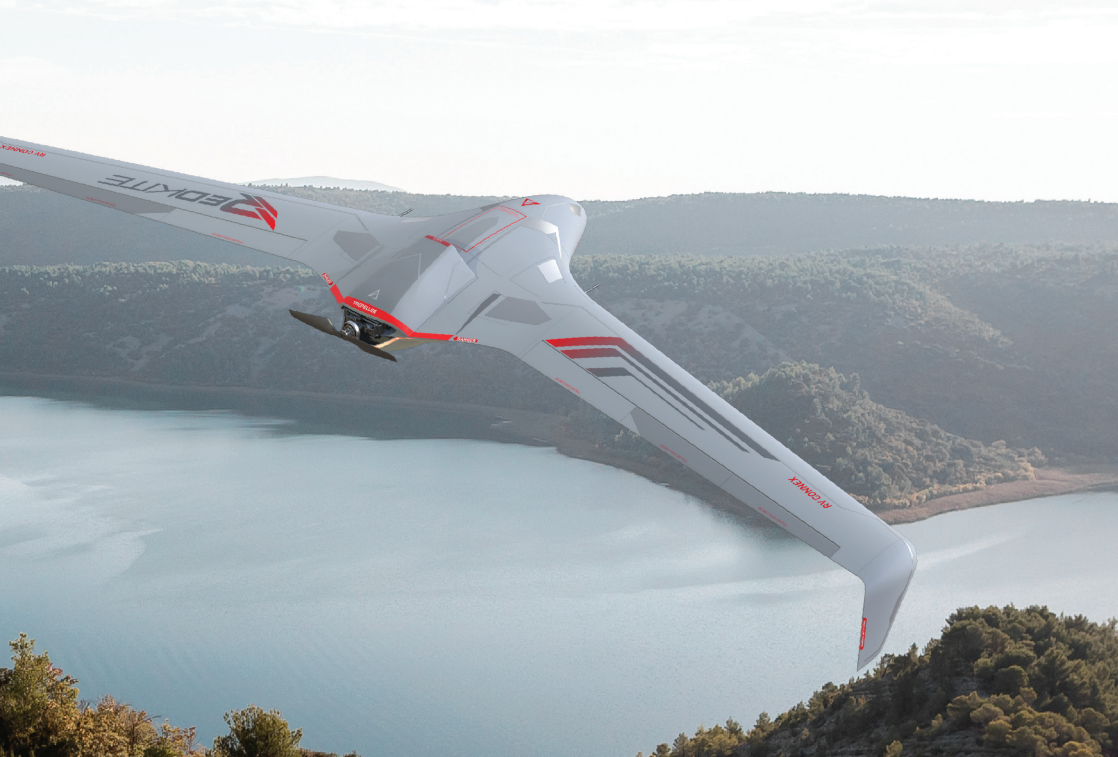

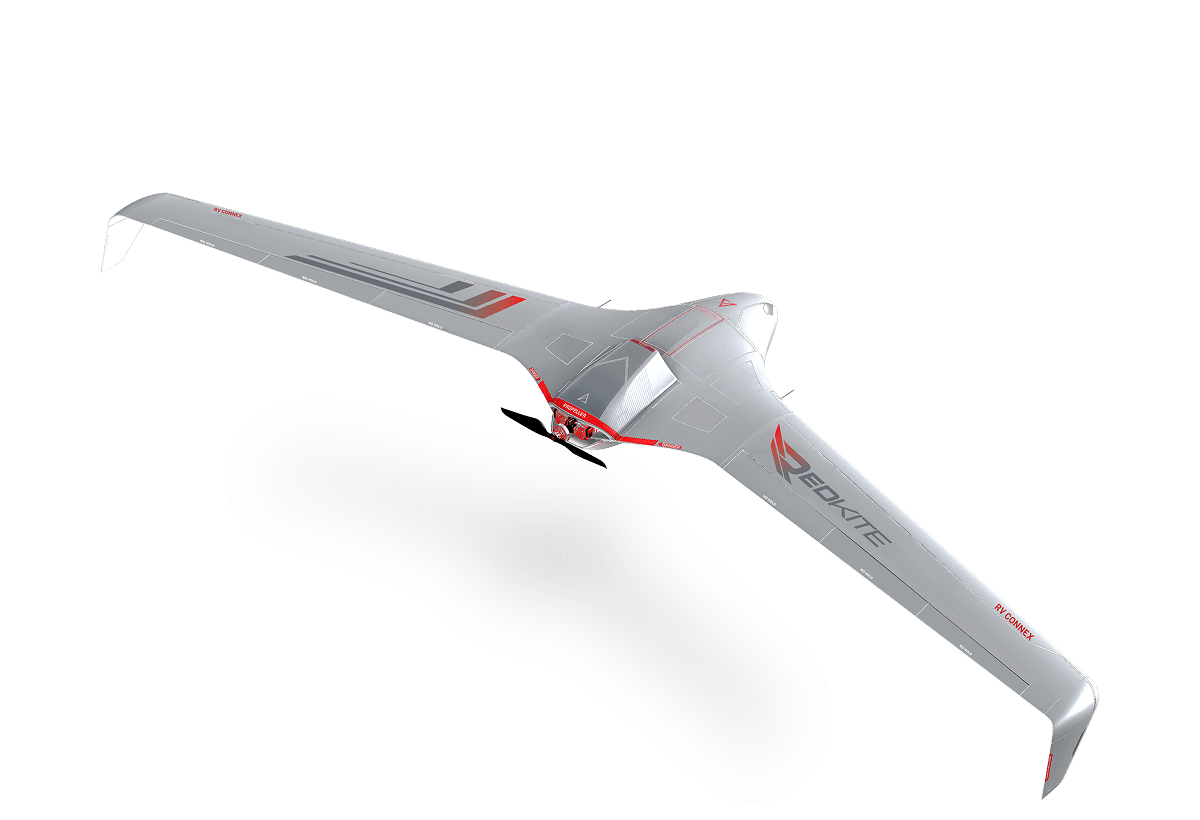

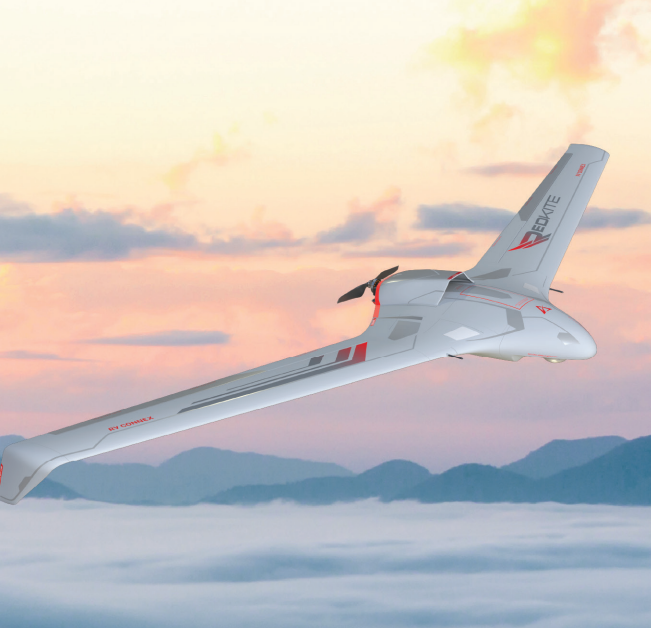

The Red Kite Tactical Unmanned Aerial System is a long-endurance, long-range, medium-altitude platform designed for land and maritime missions. It features runway-free capability, launching from any unprepared location using a mobile catapult system and recovering by parachute. Its size, weight, and capabilities provide a cost-effective solution with customization flexibility to meet tailored operational needs.
Missions
-
Intelligence, Surveillance, Reconnaissance (land and maritime)
-
Forest fire monitoring
-
Aerial mapping and surveys
Key Features & Benefits
-
Tactical UAS capable of land and maritime missions
-
Runway independent launch and recovery
-
Dual payload capability
-
AIS & IFF tracking systems
-
Redundant communication datalink
-
Semi-autonomous takeoff and landing
-
Built-in simulator for training purposes
-
Fully composite airframe
-
Low footprint and fast responsiveness
-
Ground control station options: portable, 20 ft. container, fixed site
-
Transport cases for complete system
-
System customization services and options (subject to manufacturer approval)
Technical specifications
| Parameter | Value |
|---|---|
| Wingspan | 6.8 m |
| Length | 2.4 m |
| Maximum Take-off Weight | 78 kg |
| Payload Capacity | Up to 15 kg |
| Payloads | EO/IR, Thermal Cameras, LWIR, SAR (Dual payload capability) |
| Endurance | Up to 24 hrs |
| Maximum Speed | 70 kts |
| Service Ceiling | 15,000 ft |
| Datalink | Up to 120 km (Line of sight) |
| Propulsion | Piston Engine |
| Take-off | Catapult |
| Recovery | Parachute |
Ground Control Station
-
Redundant system with two operator options for flight and payload management
-
Main functions: UAV monitoring, mission planning, payload control, simulator training
-
Independent power supply with dual generators and backup batteries
-
Custom software options available
