S26 Wheel
Product descripton: S26 Wheel by AZAK

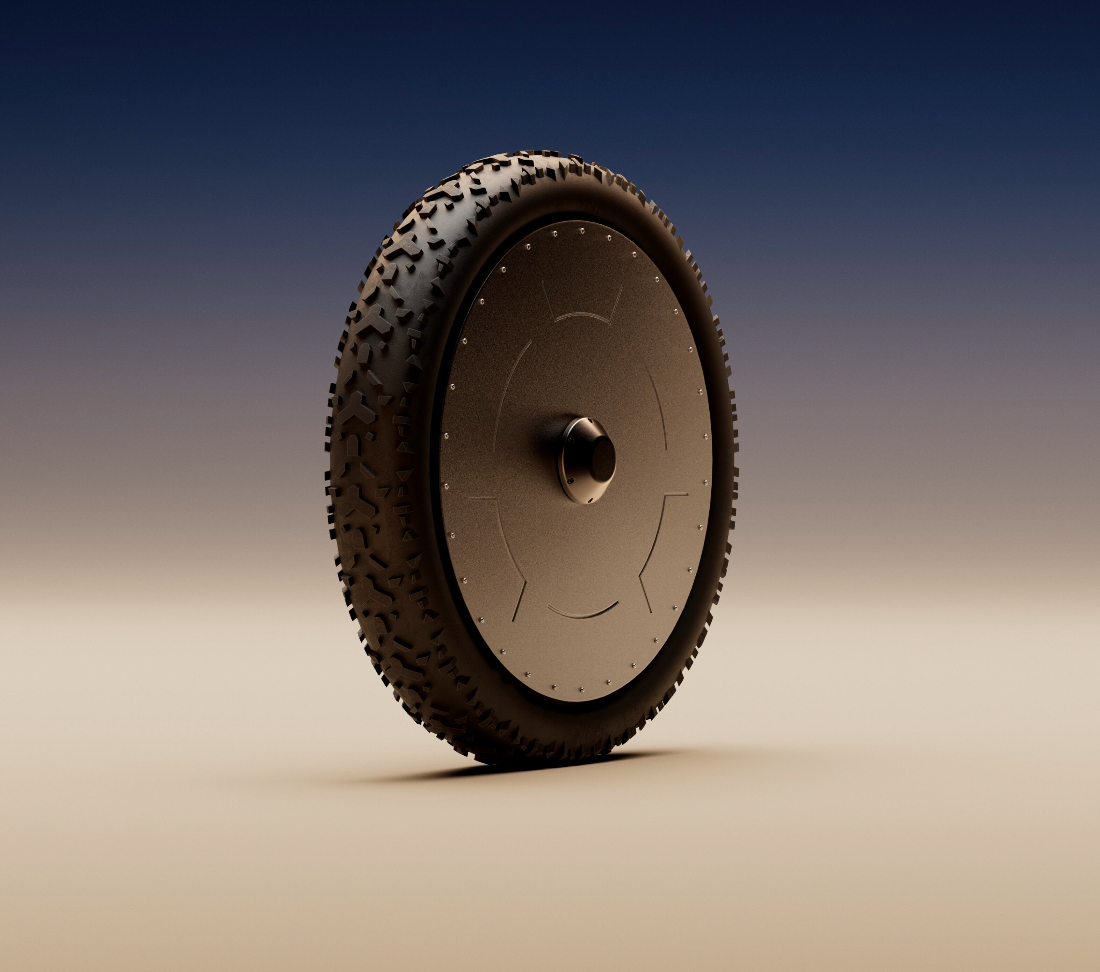

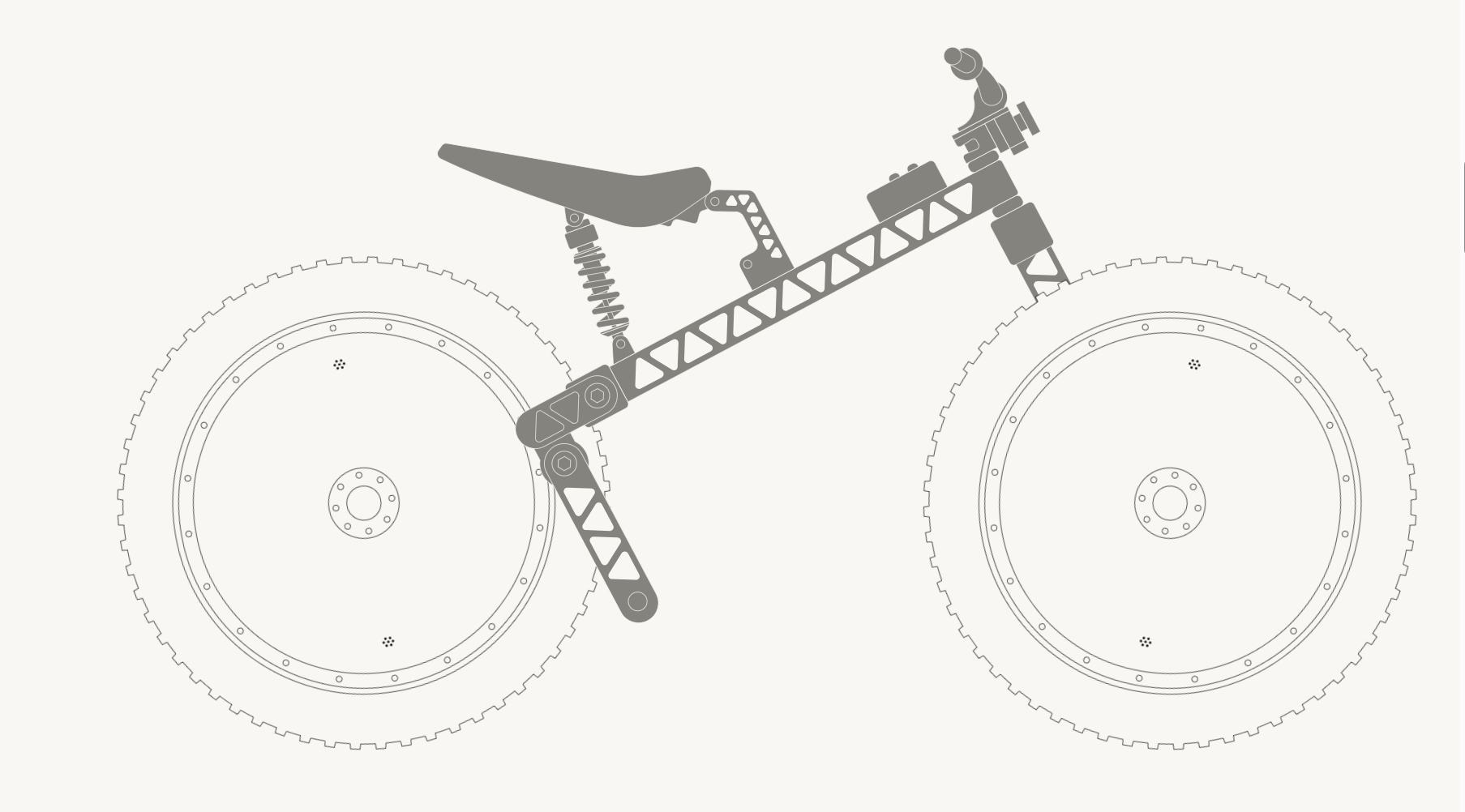

S26 is a compact, self-contained in-wheel drive system developed by AZAK, designed to convert platforms, equipment, or structures into fully functional unmanned ground vehicles (UGVs). Each wheel integrates propulsion, power, and control systems, eliminating the need for traditional drivetrain architecture.
Modularity & Integration

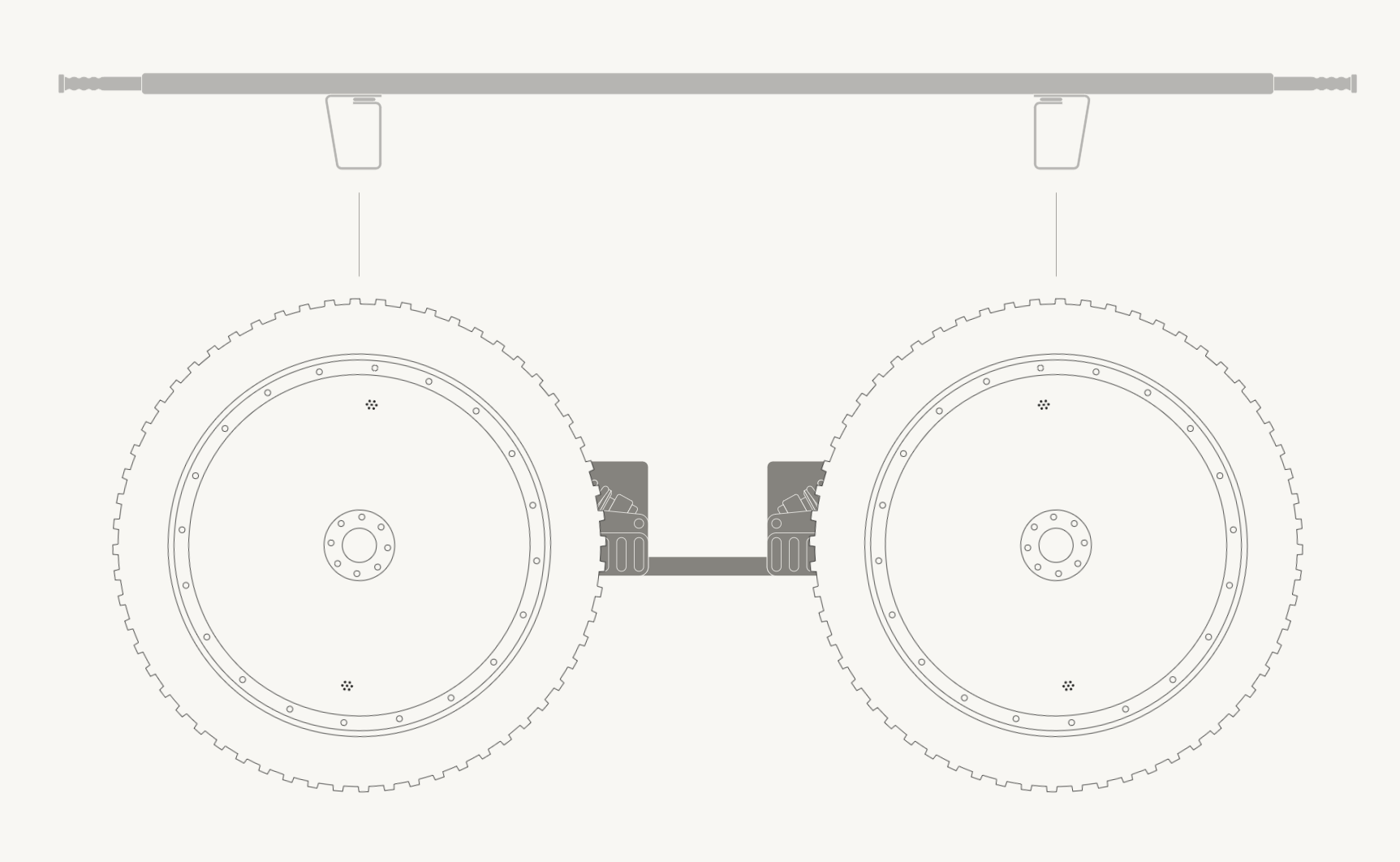

The system features quick-connect technology, allowing rapid installation onto various platforms without additional components. This enables flexible deployment across multiple use cases, including logistics, medevac, and mission-specific ground systems.
Mobility & Performance
S26 delivers reliable performance across diverse terrains, combining high torque output with a low center of gravity. The platform supports efficient energy usage, fast charging, and extended operational range.
Control & Operation
The system supports multiple control modes, including wireless, tethered, and autonomous operation, making it adaptable for both civilian and defense applications.
Operational Use Cases
- Logistics and cargo transport
- Medical evacuation (MEDEVAC)

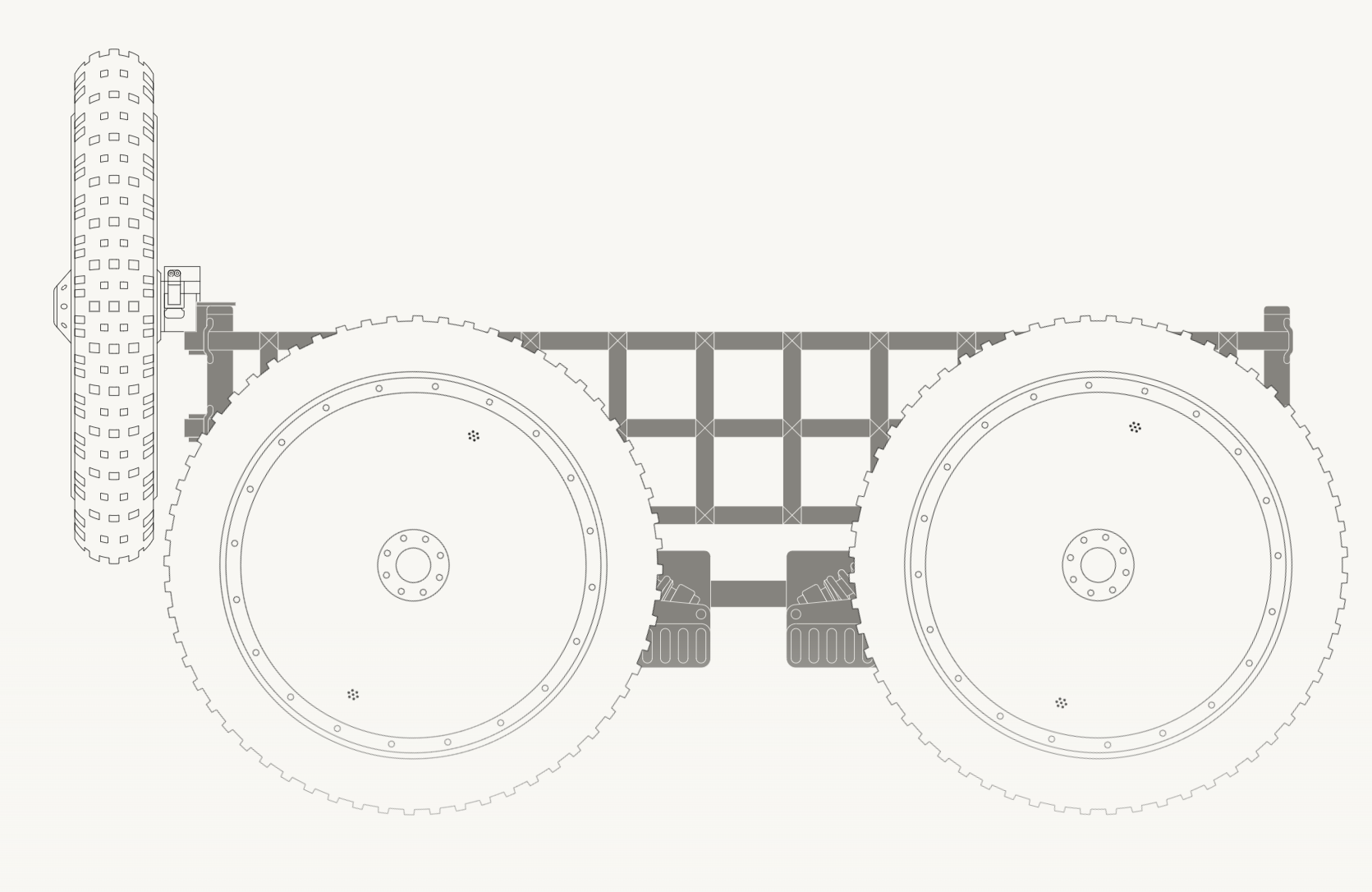

- Modular robotic platforms
- Rapid deployment mobility systems
Technical specifications
| Parameter | Value |
|---|---|

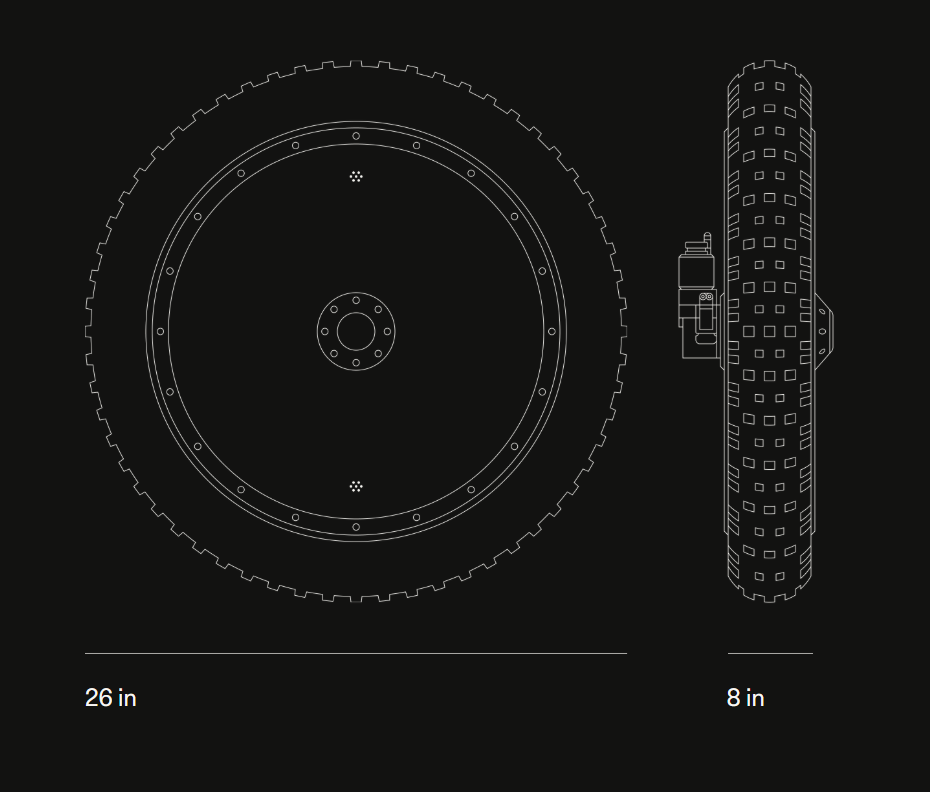

| Wheel Diameter | 26 in |
| Width | 8 in |
| Weight | 86 lbs |
| Top Speed | up to 12 mph (~19 km/h) |
| Torque (per wheel) | 147 lb-ft |
| Torque (4 wheels) | 588 lb-ft |
| Payload Capacity | 500–1000 lbs |
| Range | up to 50 miles (~80 km) |
| Charge Time | ~1.5 hours |
| Installation Time | ~3 seconds |
| Protection Rating | IP67 |
| Control Modes | Wireless / Tethered / Autonomous |
