Sensus L4
Product descripton: Sensus L4 by ISS Aerospace

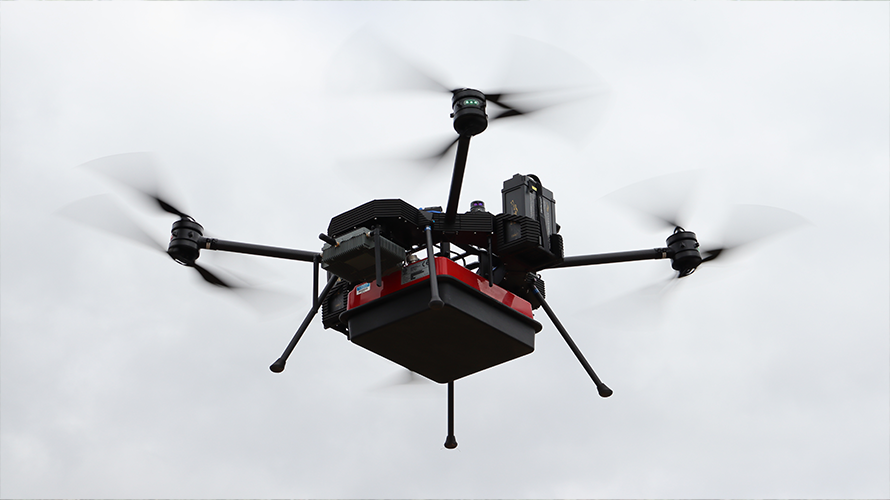

The Sensus L4 systems are large platform, modular drones, available in traditional Li-Po battery power or Hydrogen power.
We have developed the Sensus L4 range to be a highly adaptable, multi-mission drones with a modular design and a unique universal payload interface. The aircraft features a 3D-printed carbon fibre-reinforced Nylon hull that has been designed and manufactured at our UK-based facility.
The Sensus L is designed to handle demanding, data-intensive tasks. Whether you’re fusing data from multiple sensors or processing information in real-time, the Sensus L delivers exceptional performance. Its unique design allows you to mount up to three large payloads with a total payload capacity of up to 18kg, making it an incredibly effective tool for data collection during a single mission.
Technical specifications
| Specification | Value |
|---|---|
| Propeller Configuration | 4 (Quadcopter) |
| Power Source | x2 Lithium Polymer Batteries |
| Maximum Flight Time | 55 mins (no payload), 25 mins (with payload) |
| Range | 82.5 km |
| Payload Capacity | 8.0 kg |
| Maximum Take-Off Weight (MTOW) | 24.0 kg |
| Service Ceiling | 3,500 m |
| Typical Maximum Speed | 25.0 m/s |
| Maximum Pitch Angle | 45° |
| Wind Resistance | 18.0 m/s |
| Dimensions | 1,100 mm × 1,100 mm × 440 mm |
| Rating | IP54 (IP65 upgrade available) |
