Sensus M4
A rugged, Versatile Autonomous Aerial System for Any Mission

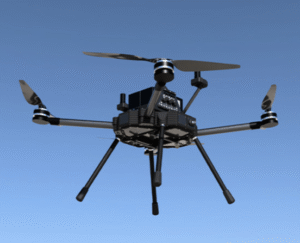

Product descripton: Sensus M4 by ISS Aerospace
The Sensus M4 is a versatile multirotor UAV, designed for a wide range of tasks in the energy, environmental and defence sectors. It can be equipped with a variety of payloads and sensors for different data-capturing mission requirements. The modular design allows payload and battery configurations to be interchanged between the top and bottom payload rails, without interfering with power and data feeds.
Technical specifications
| Specification | Value |
|---|---|
| Propeller Configuration | 4 (Quadcopter) |
| Power Source | x2 Lithium Polymer Batteries |
| Maximum Flight Time | 45 min (no payload), 25 min (with payload) |
| Range | 67.5 km |
| Payload Capacity | 5.0 kg |
| Maximum Take-Off Weight | 14.0 kg |
| Service Ceiling | 3,500 m |
| Typical Maximum Speed | 25.0 m/s |
| Maximum Pitch Angle | 45° |
| Wind Resistance | 18.0 m/s |
| Dimensions | 770 mm × 735 mm × 540 mm |
| Rating | IP54 (IP65 upgrade available) |
