SHARK-D UAS

SHARK-D UAS is a versatile unmanned aerial system built on field-proven technologies and extensive operational experience. It is designed to perform fully autonomous reconnaissance, surveillance, identification, and target recognition at long distances and considerable altitudes, making it suitable for both civil and military applications.

Mission Scope

SHARK-D is well suited for:

• Border control and surveillance

• Inspection of hard-to-reach areas

• Power and gas line inspection

• Aerial photography and monitoring

• Agriculture monitoring

• Search and rescue operations

• Public safety missions

With low operational costs, short lead times, and ITAR-free export status, the system is optimized for rapid deployment across a wide range of geographic regions.

Sensors and Payloads

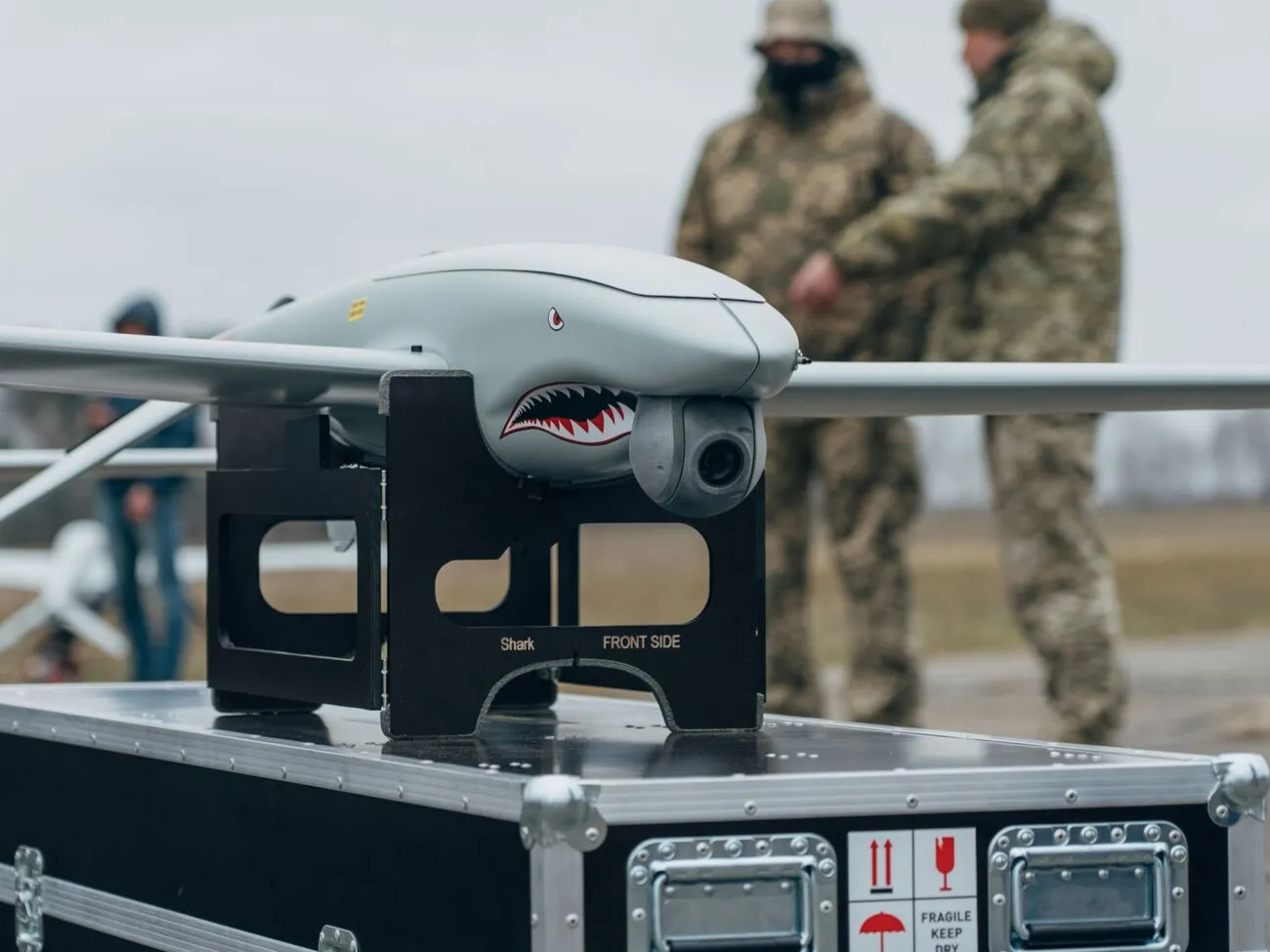

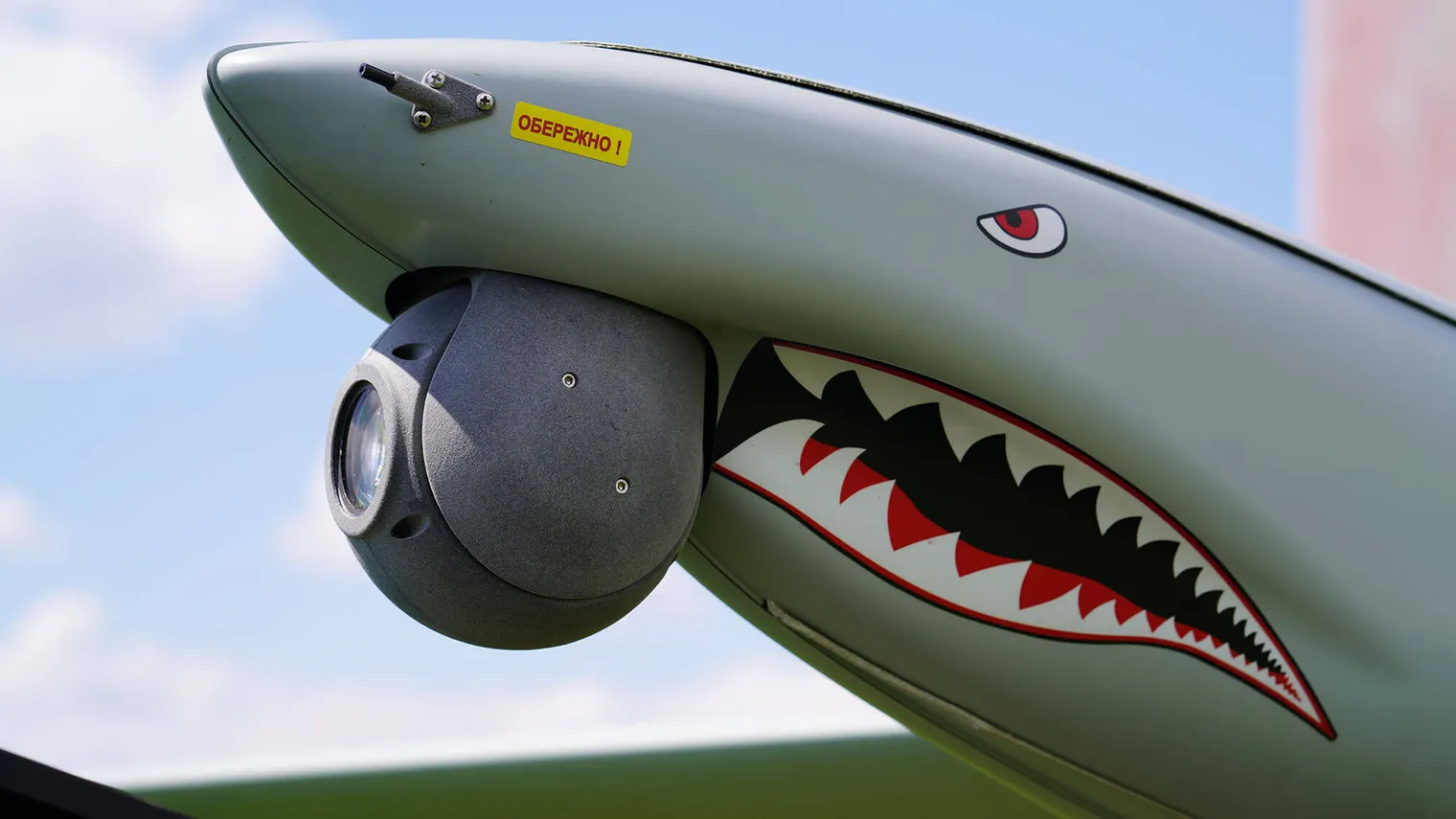

The platform supports a line of gyro-stabilized EO and EO/IR gimbals, enabling clear detection and identification:

• Daytime detection ranges up to 35 km

• Night-time detection ranges up to 14 km

Available payloads include:

• USG-231 EO (Full HD day camera with 30× optical zoom)

• USG-231T IR (thermal imaging module with 360° rotation)

Software & Autonomy

An advanced UAV control software suite provides:

• Automatic and manual flight modes

• Automated pre-flight system checks

• Operator error protection

• Anti-jamming and anti-spoofing logic (GNSS auto-disable on interference)

• Interactive maps, object tracking, target marking, and instant PDF reporting

The interface is optimized for pilots of all experience levels, reducing cognitive load and human-factor errors.

Launch, Recovery & Deployment

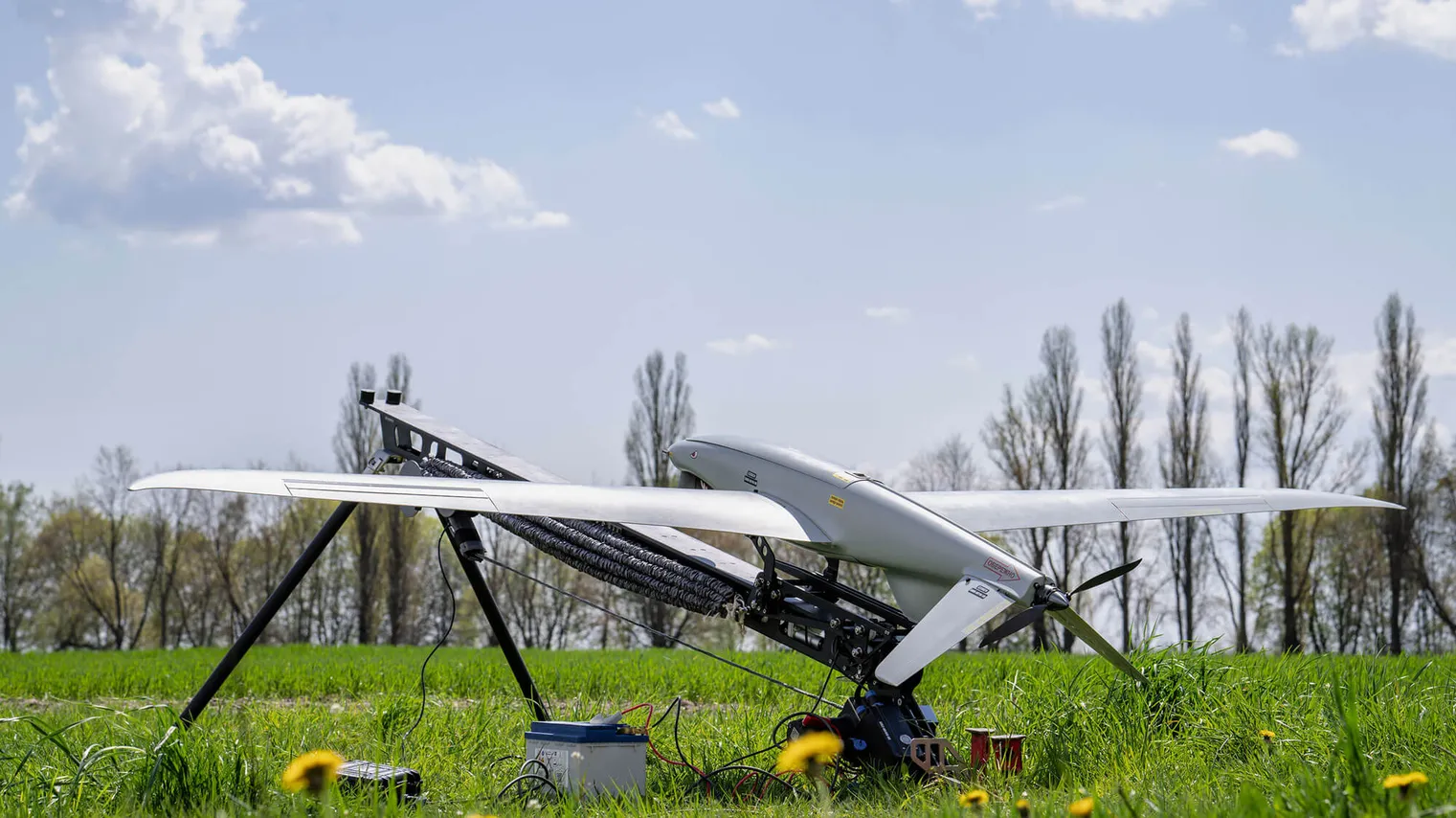

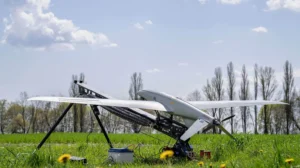

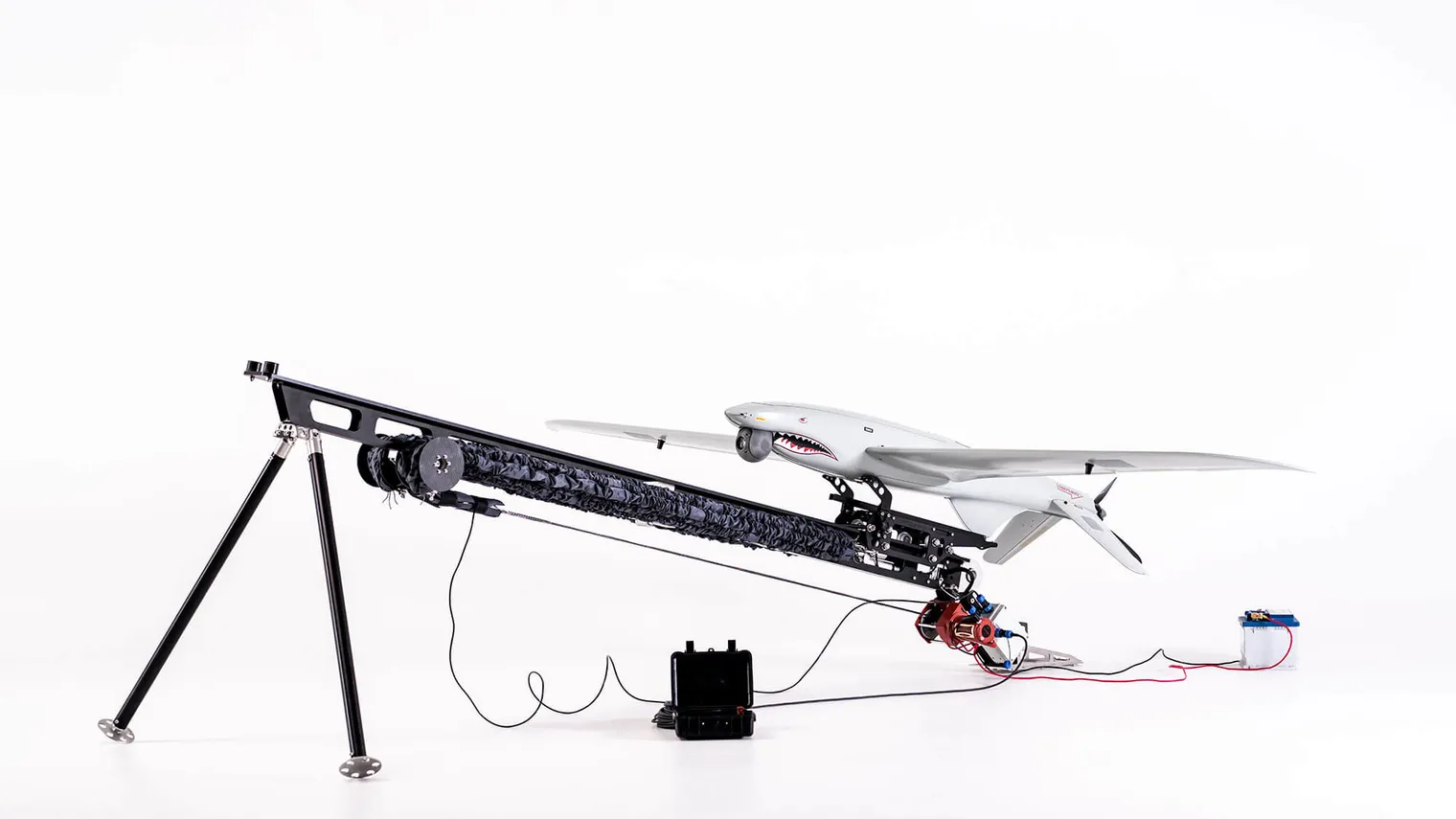

• Catapult launch using an automated bungee system

• Parachute landing for safe recovery without explosives or compressed gas

• Assembly and mission readiness within 30 minutes

• Operated by a two-person crew

Communications & EW Resistance

SHARK-D is designed for modern contested environments, featuring:

• Encrypted real-time Full HD video and telemetry

• High resistance to electronic warfare

• Mesh networking, UAV relay capability, and multi-GCS control

• Combat-proven performance in active service
