SKY SCOUT
Product descripton: SKY SCOUT by RV Connex
SKYSCOUT is a cost-effective and proven tactical platform. Its proprietary Ground Control Station (GCS) offers features including flight training and remote video terminals, ensuring mission success with operational effectiveness and easy configurability.
Key Features
-
Fully Autonomous Operation: Automatic takeoff and landing, auto mission planning, and return home.
-
Multiple GCS Operation: Operate the UAV via various Ground Control Stations with smooth handover capability.
-
Redundant and Encrypted Communication: Ensuring secure and reliable data transmission.
-
Composite Airframe: Featuring a composite structure for optimal performance.
-
Custom Transport Container: Designed for easy and secure transport, providing flexibility in deployment.
Technical specifications
| Parameter | Value |
|---|---|
| Wingspan | 6 m |
| Length | 3.6 m |
| Maximum Take-off Weight | 140 kg |
| Payload Capacity | Up to 16 kg |
| Payloads | EO/IR Cameras, External Wing Hard Points |
| Endurance | Up to 12 hrs |
| Maximum Speed | 65 kts |
| Service Ceiling | 15,000 ft |
| Datalink | Up to 120 km (Line of sight) |
| Propulsion | Piston Engine |
| Take-off | Runway <350 m |
| Recovery | Runway 500 m |

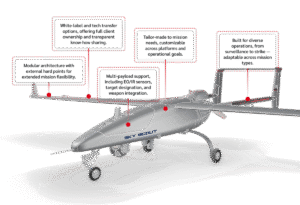

Payload Capability
-
Diverse Mission: Versatile options for diverse mission requirements.
-
EO/IR Camera Sensors: Advanced sensor capabilities for enhanced situational awareness.
-
External Wing Hard Points: Additional capacity for extended mission capabilities.
-
Target Designation and Weapon Integration: Expands mission flexibility.
Mission Capability
-
Versatile Mission Range: From surveillance and ISR to border security and maritime patrol.
-
Proven Operation Capabilities: In operation for more than 5 years.
-
Configurable for Customer Needs: Easily adaptable to meet specific mission requirements.
Ground Control Station
-
Compact and Rugged Version: Tailored for durability and adaptability in diverse environments.
-
In-Flight Changes and Waypoint Mission: Real-time mission adjustment.
-
Flight Training and Mission Simulator: Comprehensive tools for effective training and mission planning.
-
Remote Video Terminal Option: Enhancing remote monitoring capabilities.
-
Deployment Options: Portable, 20 ft container, and fixed site.
