SkyEye Sierra VTOL UAV
Product descripton: SkyEye Sierra VTOL UAV by ElevonX

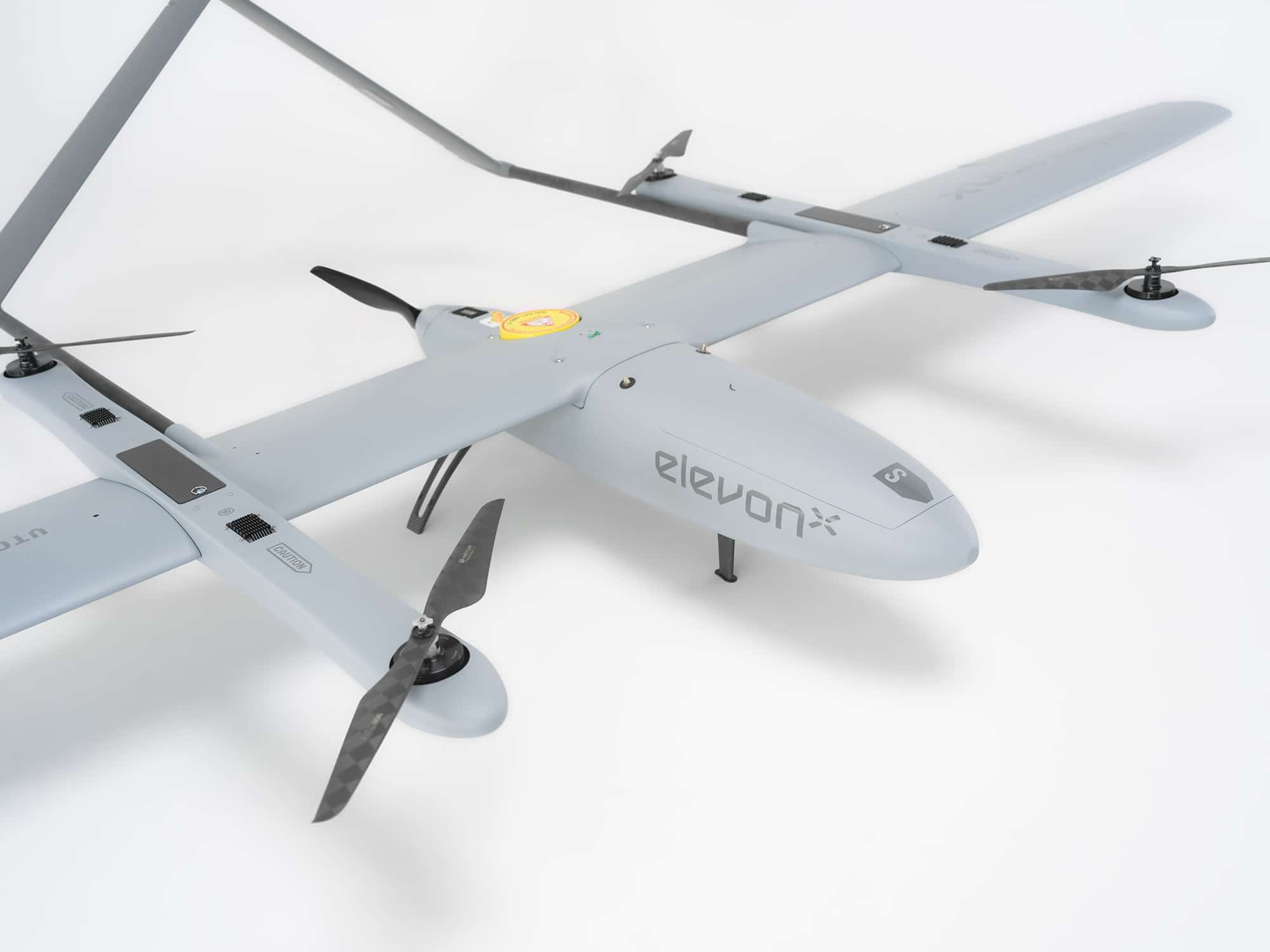

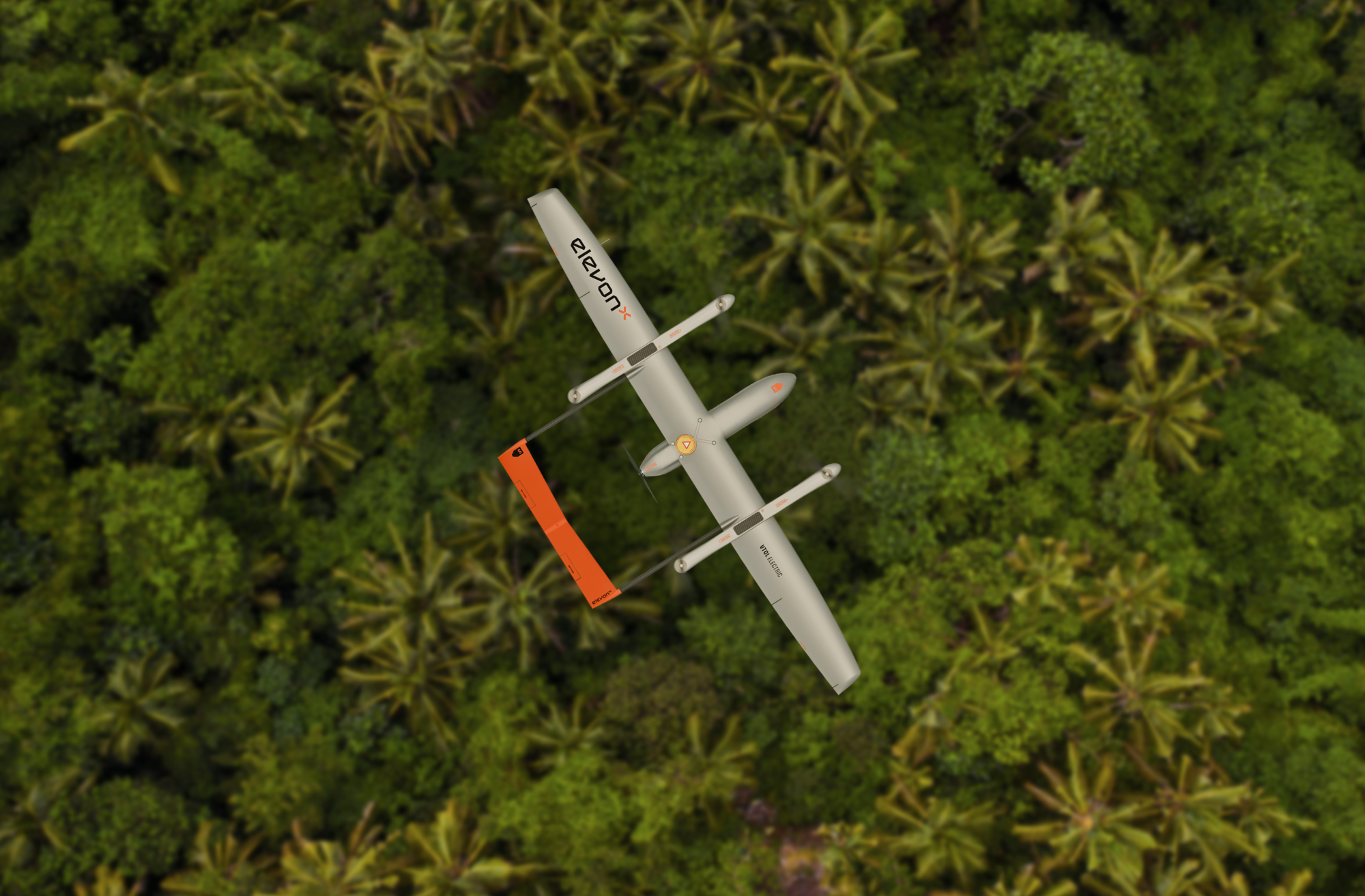

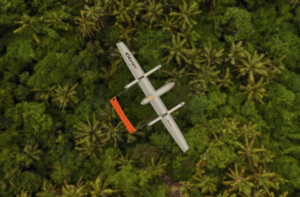

Whether you need precise data for mapping, robust surveillance capabilities, or the flexibility to adapt to new challenges, the ElevonX Sierra™ VTOL is the aerial solution that delivers beyond expectations.

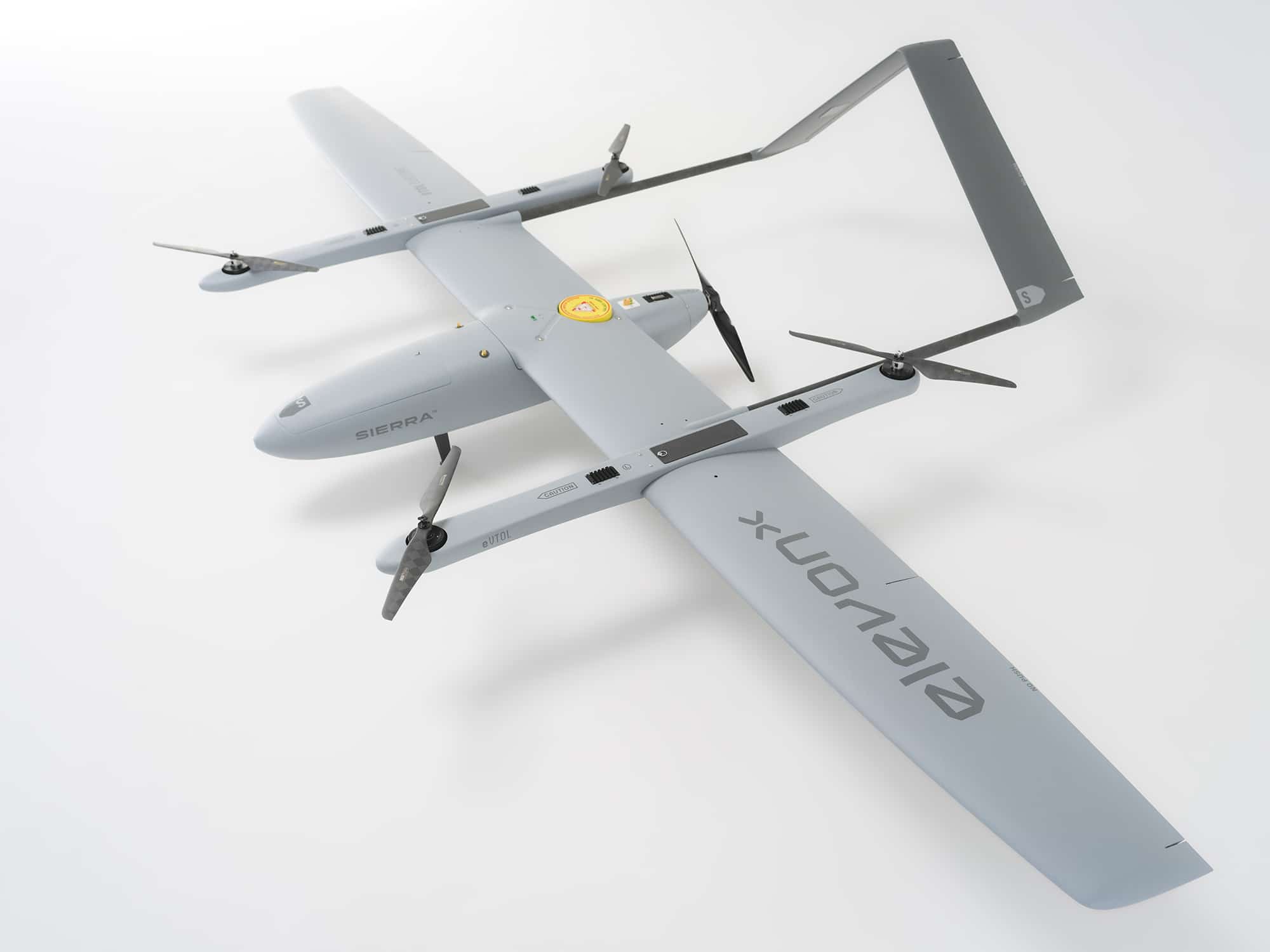

This fixed-wing, electric vertical take-off and landing (VTOL) UAV offers an unparalleled combination of long-endurance flight, exceptional payload capacity, and a minimal operational footprint, making it the ideal solution for a wide range of applications, from surveying and mapping to agriculture and surveillance. This adaptability gives operators the competitive edge they need in the fast-evolving market of UAS services.

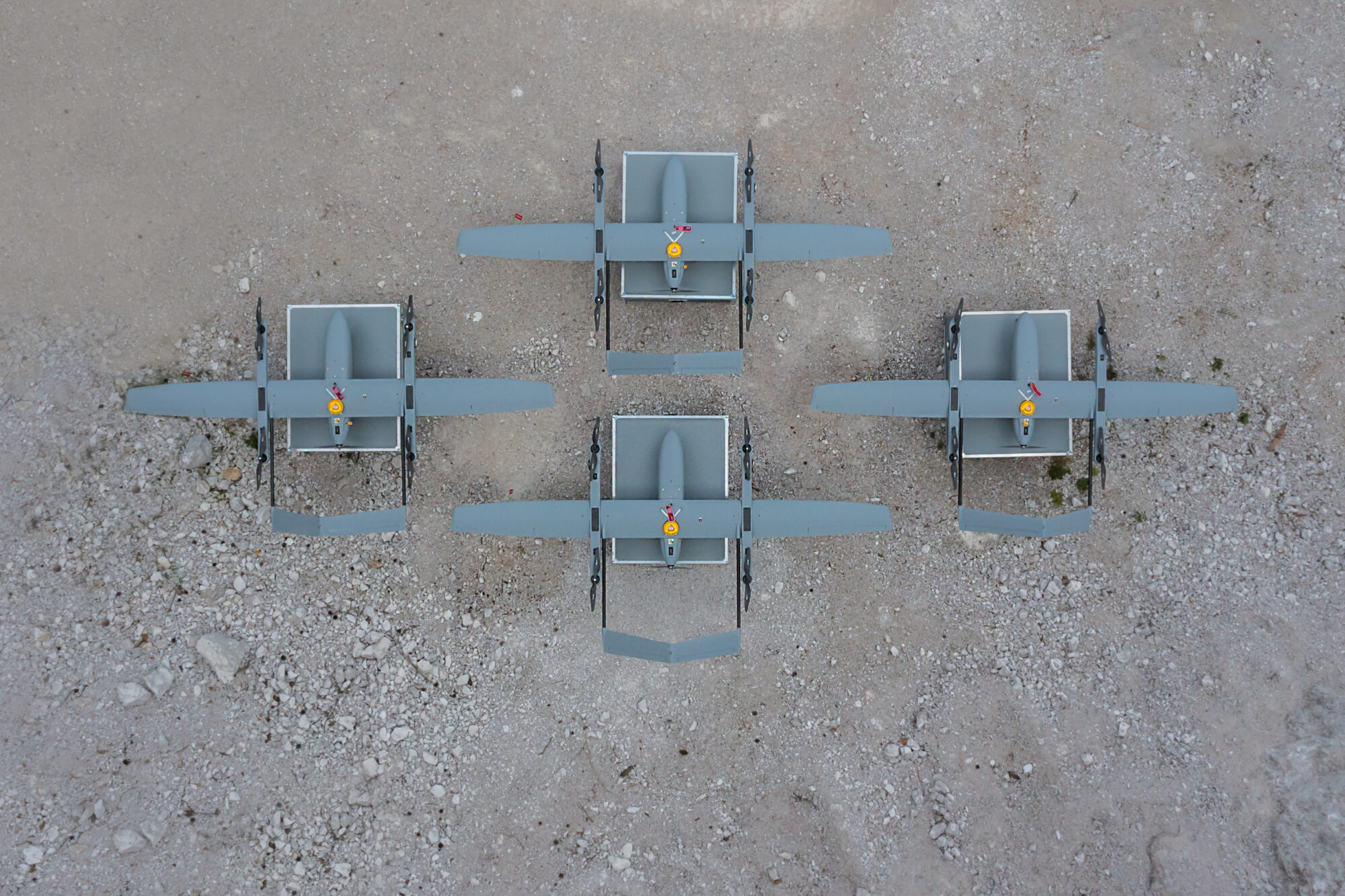

The drone, when stored in its case, fits into any personal vehicle. The assembly is straightforward and takes approximately five minutes. It can be done by one person, but two people are recommended for ease of the task.

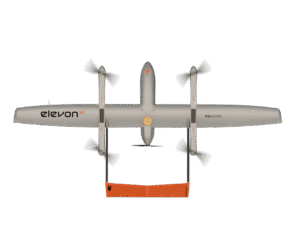

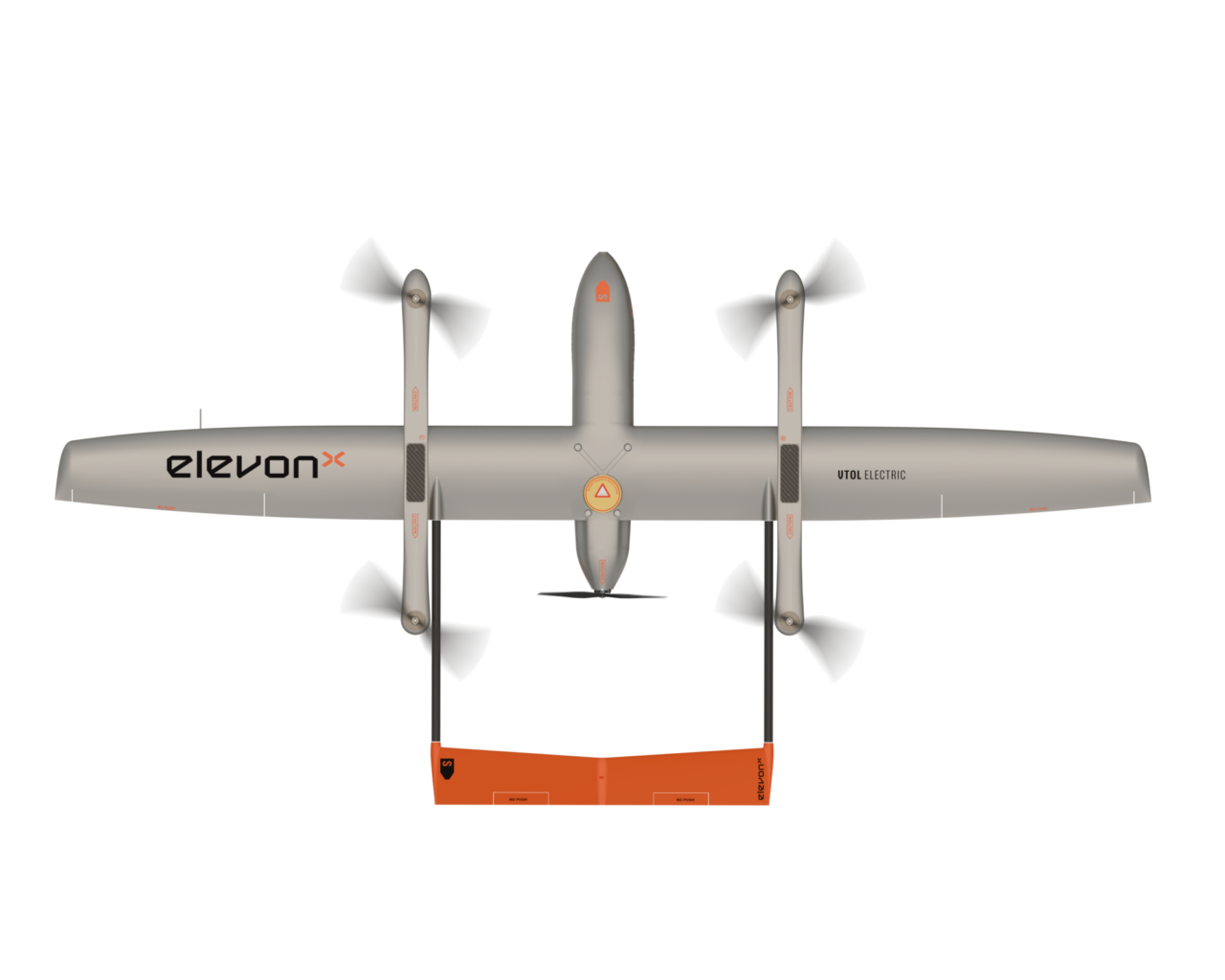

Technical specifications
| Specification | Value |
|---|---|
| Wingspan | 3 m |
| Useful Payload | Up to 3 kg (optimum 1.5 kg for 1.5-hour endurance) |
| Flight Time | Up to 2.5 hours (with lightweight payloads) |
| Cruise Speed | Up to 20 m/s |
| Maximum Take-Off Mass (MTOM) | 13.5 kg |
| Wind Tolerance | Up to 8 m/s (take-off and landing), up to 17 m/s (in-flight) |
| Service Ceiling | Up to 3000 m (special edition up to 6,500 m) |
| Video & Control Link Distance | Up to 30 km |
Design
Full UAVCAN Integration
UAVCAN is a protocol providing a highly reliable communication application via the CAN bus. This makes communication within drones more resistant to interference. Ground crew can obtain more data from the drone in less time, providing more accurate aircraft control. The increased data flow allows reception of information on critical drone systems. Consequently, the operator receives real-time feedback on servos, pitot tubes, rotors, etc., enabling an adequate response to potential operational errors.
Custom Fully Redundant Carrier Board with Integrated Power Supply
The ElevonX Carrier Board integrates the autopilot and all other electronics on a single secure circuit board. The power supply unit is double redundant for emergency situations.
Cable Harnesses
High-quality in-house harnesses are customized to meet any specification. Wiring is secured against vibrations, abrasion, and moisture.
Integrated Navigation Lights (Optional)
Designed for visual detection in various weather conditions. Lights can be deactivated for stealth missions.
Composites
Structurally Optimized Hull
The monocoque hull is made in one piece, providing a structurally stronger body. Single-piece curing ensures mechanical and chemical strength, unlike two-piece constructions which create weak joints.
Prepreg (Pre-Impregnated) Composite Technology
Prepreg material combines fabric and uncured resin in a precise ratio, ensuring consistent properties like Ultimate Tensile Strength (UTS) and Modulus. This mitigates variability found in traditional hand layups.
Optimization in Composites
Using prepregs ensures the lightest, most consistent components. Detailed prepreg data allows accurate weight estimates before cutting. Wet layups or infusion methods cannot guarantee consistent weight or properties.
Payloads
-
Payload Bay Dimensions: 250 x 110 x 110 mm
-
Orthophoto Cameras:
-
PhaseOne P5 128MP, high resolution, medium format
-
Sony ILX-LR1 61MP full-frame mapping camera
-
-
Multispectral Cameras:
-
Micasense RedEdge / Altum, stabilized multi-sensor gimbals
-
-
Gimbal-Stabilized Cameras:
-
Edge Authonomy e95
-
Atmolab REX Mini Mk2 with REX 120 EO 55X and REX 120 IR 50 mm
-
Nextvision (all models)
-
-
Lidar: YellowScan Mapper+
Avionics
Flight Controller
High-performance H7 processor with power supply redundancy. Dual-core architecture: Cortex M7 400 MHz with double-precision FPU, Cortex M4 200 MHz, 2 MB Flash, 1 MB RAM. Fully supports ArduPilot and PX4.
Situational Awareness via Integrated ADS-B
1090 MHz ADS-B receiver from uAvionix integrated into the carrier board. Provides altitude and location of nearby manned aircraft. Advanced autopilot features enable auto-avoidance and optional ADS-B IN/OUT reporting.
New Sensors on Upgraded IMU
Triple-redundant IMU system provides backups for errors. Upgraded Dual ICM42688 and ICM45686 Balanced Gyro enhance reliability.
Temperature Controlled and Vibration-Isolated IMU
IMU sensors are vibration-isolated and temperature controlled. Heating sensors prevent issues at temperatures above 50°C, ensuring stable outputs across -15°C to +45°C.
High-Precision Dual-Band RTK Navigation GNSS
Equipped with u-blox NEO-F9P L1/L5 RTK Multi-Constellation GNSS module for fast lock times and centimeter-level accuracy. Dual-core 480 MHz/240 MHz MPU. Includes accurate magnetometer and IMU for precise navigation.
Reliability & Safety
Autopilot with Triple Redundancy
Triple redundancy on all major sensors, including IMU, ensures high reliability and flight safety.
Integrated Pyro Ballistic Parachute
Certified Galaxy GBS parachutes protect the airframe and sensors. Fast deployment (<1 second) using a pyro generator, similar to a car airbag system.
