SKYLANE 320
Electric VTOL UAV for Extended Multi-Role BVLOS Operations

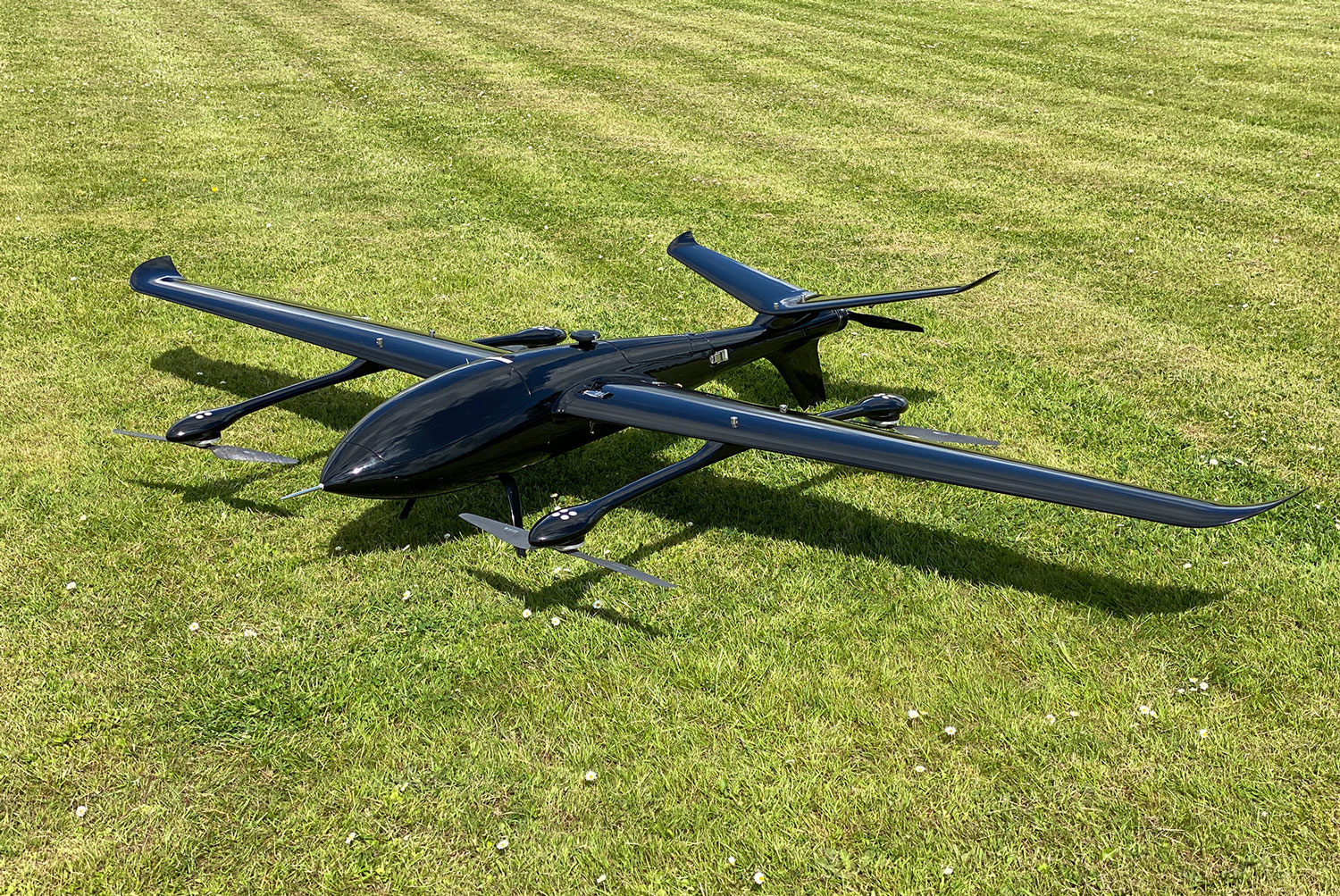

Product descripton: SKYLANE 320 by Sky-Drones
The SkyLane 320 is an electric VTOL fixed-wing UAV optimized for medium-range autonomous missions requiring greater payload capacity and endurance than compact UAV platforms. Designed for multi-role operations, it combines efficient fixed-wing cruise with vertical takeoff and landing to eliminate runway requirements.
Featuring the AIRLink AI-enabled flight control ecosystem, the SkyLane 320 provides autonomous navigation, cloud-connected mission management, AI-powered flight intelligence, and real-time communications. Its modular platform supports a variety of payloads for surveying, infrastructure inspection, security, environmental monitoring, and logistics missions.
Technical specifications
| Specification | Value |
|---|---|
| Application | Multi-role |
| Propulsion | Electric |
| Wingspan | 3,200 mm |
| Length | 1,830 mm |
| Material | Carbon Fiber |
| Empty Weight (without battery) | 11.0 kg |
| Maximum Takeoff Weight (MTOW) | 25 kg |
| Maximum Payload (excluding battery) | 3 kg |
| Endurance | 3.5 h (no payload); 2.0 h (3 kg payload) |
| Cruise Speed | 22 m/s |
| Maximum Speed | 30 m/s |
| Stall Speed | 17 m/s |
| Maximum Takeoff Altitude | 4,200 m |
| Battery | 4 × 6S 25,000 mAh (10.2 kg) |
| Wind Resistance (Fixed-Wing Mode) | Up to 17 m/s |
| Wind Resistance (VTOL Mode) | Up to 9 m/s |
| Operating Temperature | -20°C to +45°C |
| Operating Voltage | 12S |
| Carrying Case | 1,800 × 680 × 480 mm |
