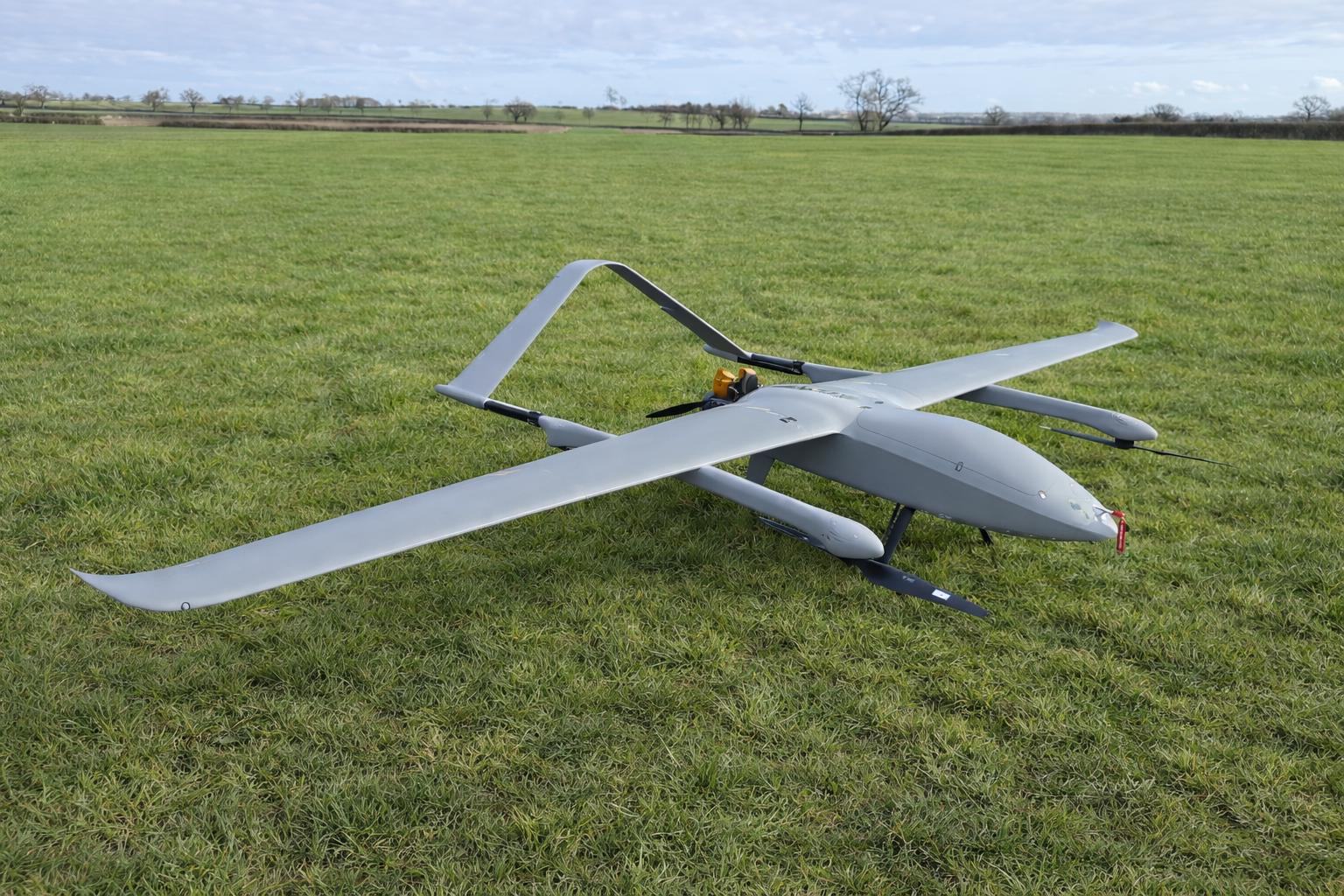

SKYLANE 650H
Product descripton: SKYLANE 650H by Sky-Drones
The SkyLane 650H is the flagship hybrid VTOL fixed-wing UAV in the SkyLane family, designed for strategic ISR, mapping, and long-range autonomous missions. Combining electric VTOL capability with a petrol-powered cruise engine, it achieves up to 14 hours of endurance while carrying payloads of up to 45 kg.
Equipped with the AIRLink intelligent flight control system, the SkyLane 650H provides AI-powered autonomous flight, cloud-based mission planning, SATCOM and 4G/5G connectivity, real-time video streaming, and advanced sensor integration. Its combination of exceptional endurance, heavy payload capacity, and long-range performance makes it suitable for persistent surveillance, large-area mapping, border security, infrastructure monitoring, and other mission-critical BVLOS operations.
Technical specifications
| Specification | Value |
|---|---|
| Application | ISR / Mapping |
| Propulsion | Hybrid |
| Wingspan | 6,500 mm |
| Length | 3,265 mm |
| Material | Carbon Fiber |
| Empty Weight (without battery/fuel) | 55.0 kg |
| Maximum Takeoff Weight (MTOW) | 160 kg |
| Maximum Payload (excluding battery) | 45 kg |
| Endurance | 14.0 h (no payload); 7.0 h (45 kg payload) |
| Cruise Speed | 35 m/s |
| Maximum Speed | 50 m/s |
| Stall Speed | 28 m/s |
| Maximum Takeoff Altitude | 3,500 m |
| Battery | 6 × 12S 10,000 mAh + 1 × 7S 10,000 mAh (18.0 kg) |
| Wind Resistance (Fixed-Wing Mode) | Up to 17 m/s |
| Wind Resistance (VTOL Mode) | Up to 8 m/s |
| Operating Temperature | -20°C to +45°C |
| Operating Voltage | 7S, 12S |
| Carrying Case | 2,450 × 1,440 × 1,430 mm |
