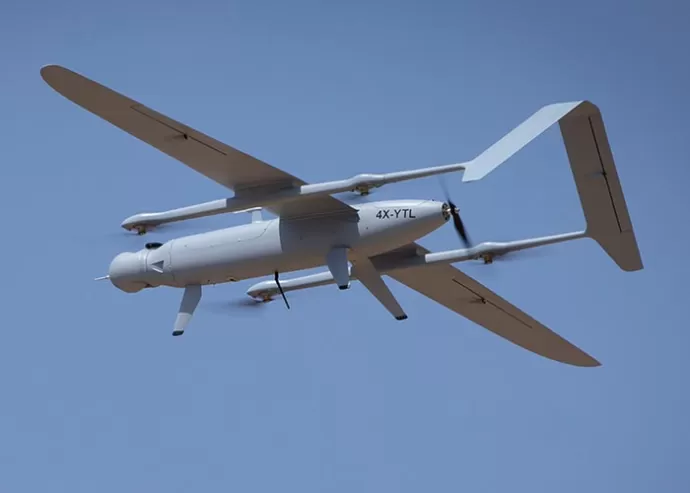

Skylark I-eVTOL
Fixed-wing VTOL mini UAS
Product descripton: Skylark I-eVTOL by Elbit Systems
Mini UAS with automatic vertical takeoff and landing
Skylark™ I-eVTOL enables flexible operation from almost anywhere: at sea, on land and in the urban environment. Based on the Skylark™ family of UAS, the all-electric vertical takeoff and landing (VTOL) UAS provides airborne intelligence, surveillance, target acquisition and reconnaissance (ISTAR) capabilities, perfect for fully autonomous, multi-sensor, highly covert operations.
Key Benefits
- Vertical takeoff and landing
Electric motors replace launcher and parachute. Capable of takeoff and landing from marine facilities and ships. - Rapid deployment
Man-packed or vehicle-based portable platform can be deployed in up to 15 minutes. - Multi UAS missions
Supports concurrent LOS control of multiple UAS from the same control station (hot swap). - Full interoperability
Full interoperability with Skylark™ 3 and SkyStriker. - Minimal crew
Operation with minimal crew of Two operators. - GNSS
Operational in GNSS-denied environment. - Digital encrypted data link
Advanced digital encrypted data link. - Compatible with NATO standards
STANAG 4609, 4660, 4586. - C4I systems
Integrates with existing C4I systems. - High-quality imagery
High-resolution gimbaled and stabilized EO/IR payloads. - Long-range operation
Data link supports up to 40km LOS.
Technical specifications
| Endurance | 3h |
| Mission Radius | 40km |
| Flight Ceiling | 15,000ft ASL |
| Max Flight Speed | 65 Knots |
| Payloads | – Weight: 2.5kg – Automatic Target Tracking – HD Digital Video – Laser Designator – Optional |
| Takeoff and Landing | Fully automatic vertical takeoff and landing |
| Data Link Characteristics & Performance | – Supports control of multiple UAVs from the same station – AES 256 encryption / supports GFE encryption |
| UAV Navigation | – GPS / GLONASS / Galileo / indigenous GNSS – Position Estimation using data link – Operation in GPS-denied environment |
Key Features
- Class I aircraft
Extended endurance and range of fixed-wing Class I aircraft with automatic vertical takeoff and landing (VTOL). -
Launch and recovery areas
Suitable for small launch and recovery areas (less than 10X10m). - Tactical & HLS Versatility
Ideal for man-packed, vehicle or ship-based operations: supports a wide range of military and HLS applications including tactical or special forces. - Payload
Dual payload capabilities. - Covert capability
Real-time eye in the sky with very low acoustic and visual signatures.
