Skylark I
Miniature Tactical UAV
Product descripton: Skylark I by Elbit Systems

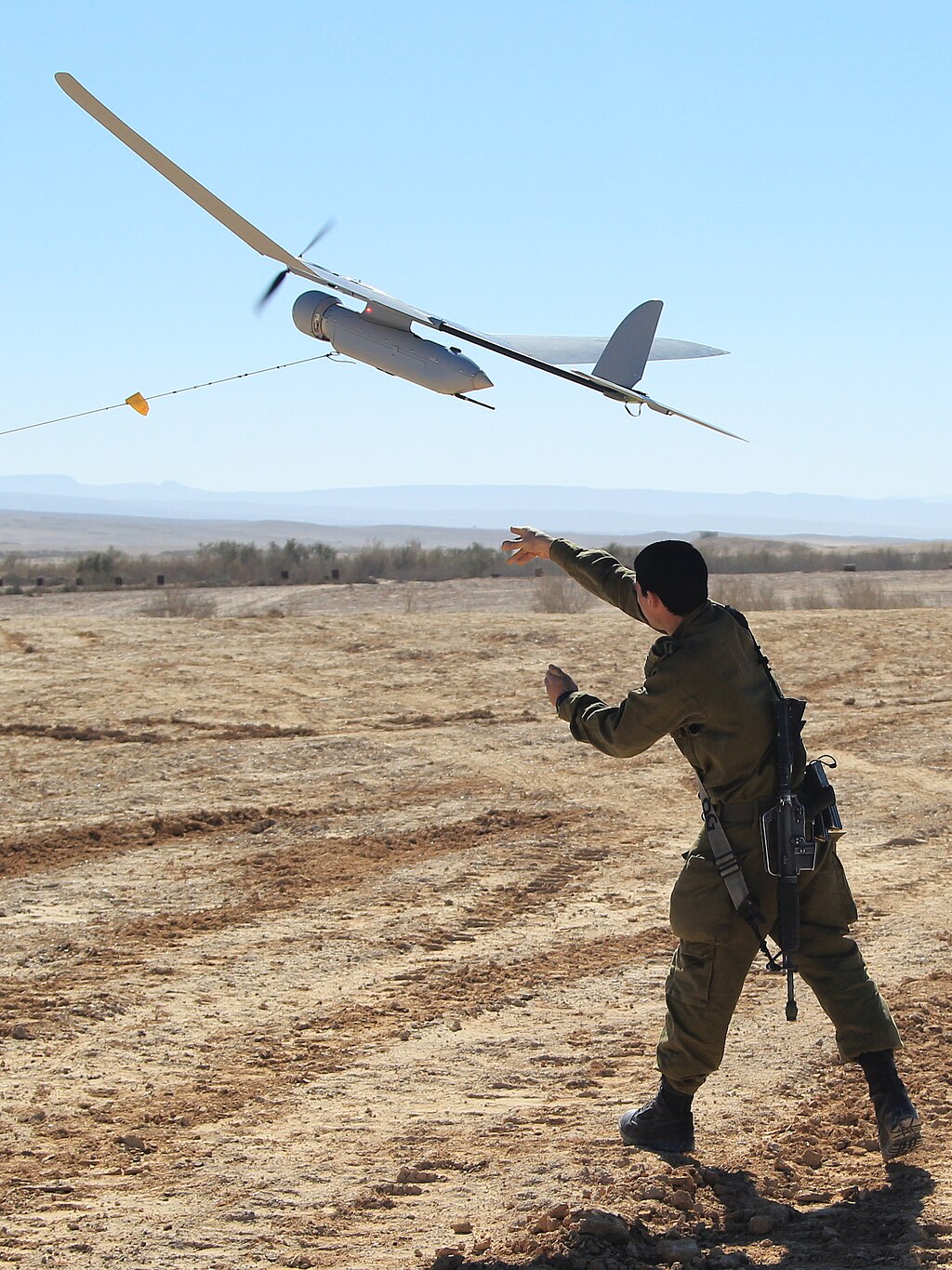

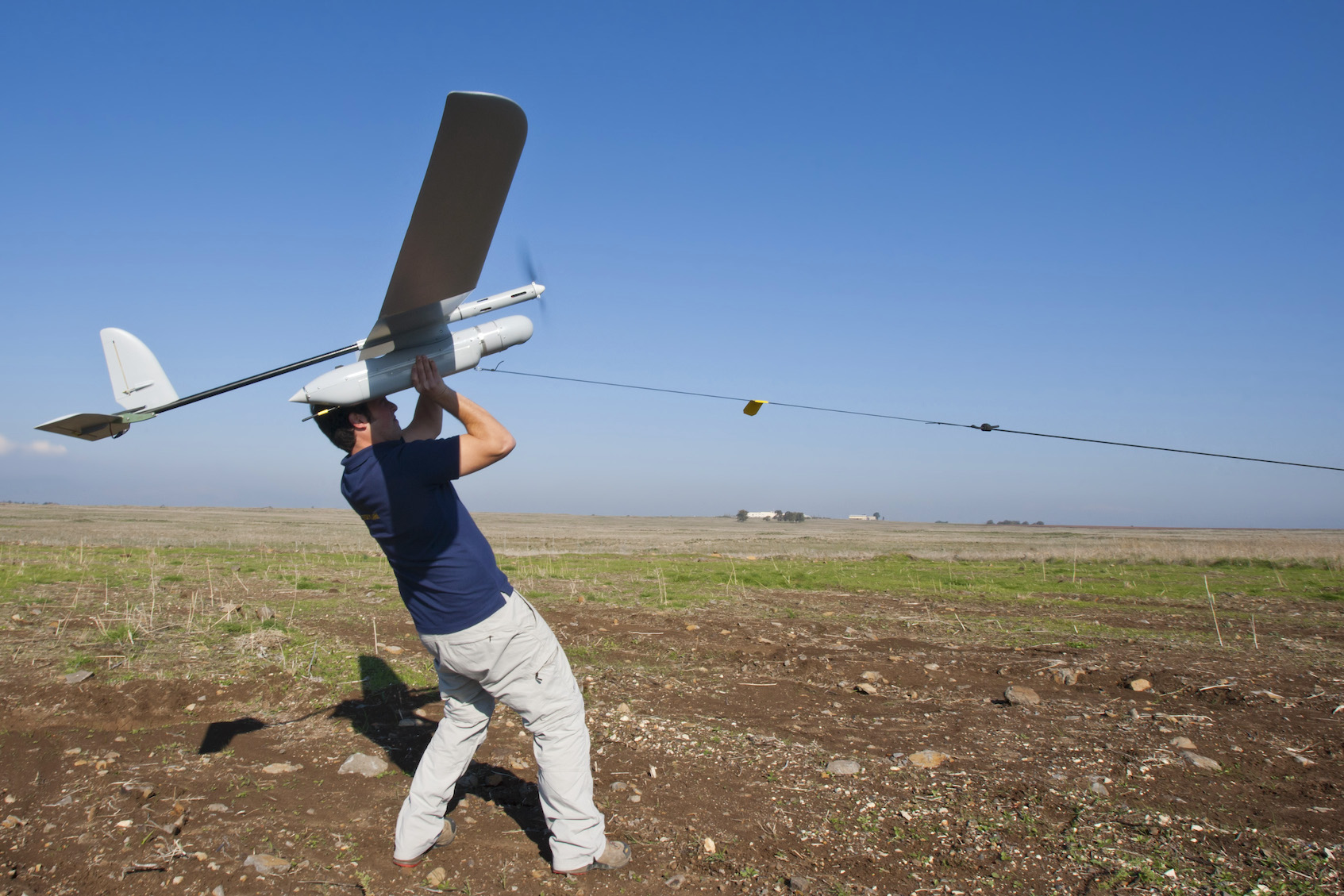

The Skylark I is a man-packed, hand-launched miniature UAV designed for tactical surveillance and reconnaissance. It provides real-time video through a portable ground station using either a daylight CCD or optional FLIR payload for night operations. Recovery is achieved via a deep stall maneuver onto a small inflatable cushion, offering rapid deployment and flexible operation in the field. Its operational range reaches up to 40 km.
Technical specifications
| Specification | Value |
|---|---|
| Type | Mini Unmanned Aerial System (UAS) |
| Length | 2.2 m (7 ft 3 in) |
| Wingspan | 2.4 m (7.9 ft) |
| Take-off Weight | 5.5 kg (12 lb) |
| Service Ceiling | 4,900 m (16,000 ft) |
| Speed | 37–74 km/h (23–46 mph; 20–40 kn) |
| Mission Radius | 5–10 km (3.1–6.2 mi) |
| Endurance | 2 hours |
| Launch Method | Hand-launched |
| Recovery Method | Deep stall landing on inflatable cushion |
| Payload Options | Daylight CCD, optional FLIR for night operations |
