SNOOP 24
Product descripton: SNOOP 24 by Cannon Dynamics

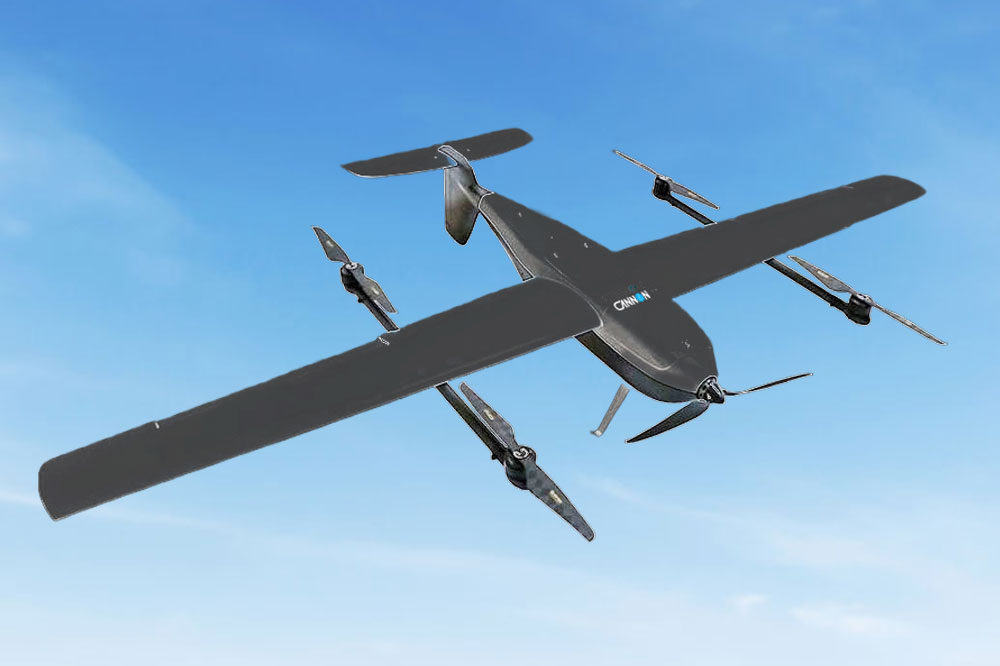

The SNOOP 24 is the bigger brother to the SNOOP 18 VTOL fixed wing UAV with even longer flight times.
SNOOP 24 shares many of the great features of its smaller sibling the SNOOP 18, but boasts a greater wingspan, operating ranges, speeds and battery life. The SNOOP 24 also offers a greater payload capacity.
Lightweight and Durable Frame
Constructed from a combination of carbon fiber and EPP, SNOOP provides excellent rigidity for reliable performance while remaining flexible and lightweight, enabling longer, more efficient flights.
High Wind Resistance
Capable of stable flight in Level 5 winds, SNOOP ensures dependable performance even under challenging weather conditions.

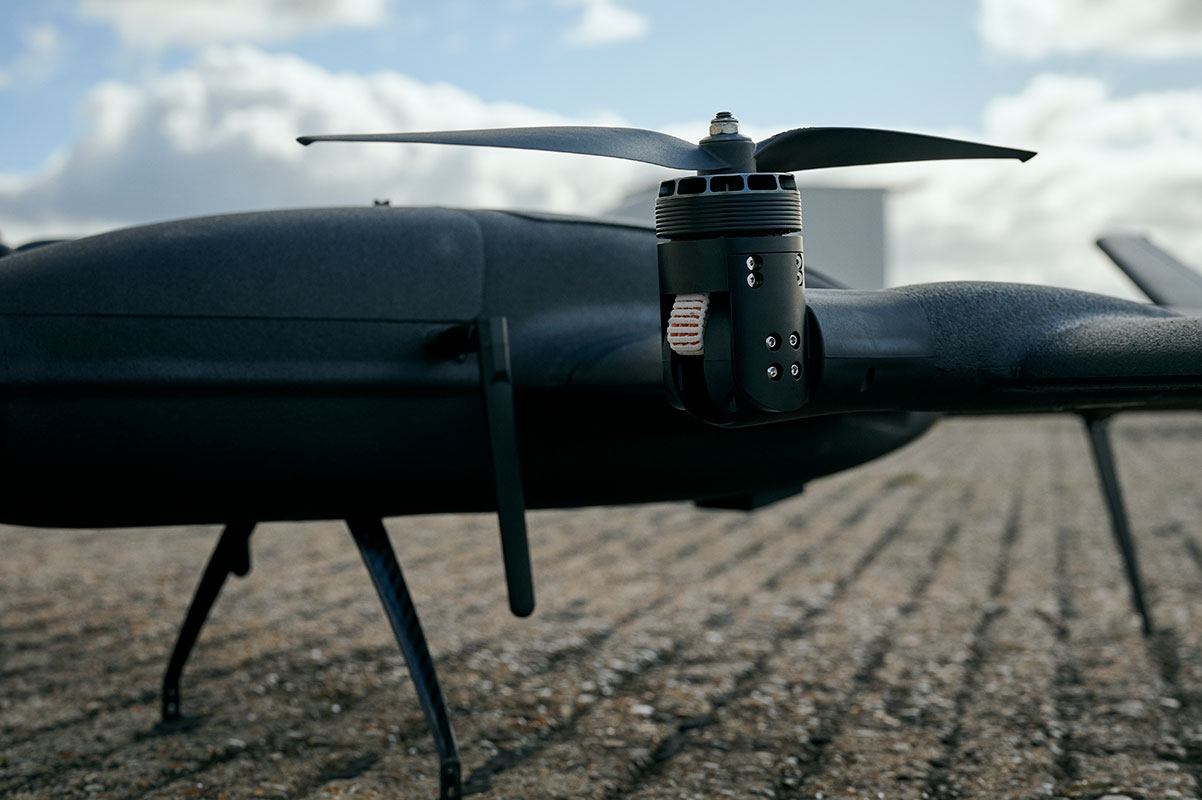

High-Performance ESC
Features an 80A 3-in-1 high-performance ESC with fast response time, reducing weight by 65% compared to traditional single ESC designs.
Enhanced Safety Features
Includes an onboard power management module with dual flight control backup power. An 8V12A UBEC supplies stable power to the servo system, improving overall reliability and simplifying installation.
Features
- Combines vertical take-off and landing with fixed wing flight efficiency
- Complete, Switch and Go
- Light weight frame – easy to carry and transport
- Rapidly deployed, convenient
- Fully integrated ISR (Intelligence, Surveillance , Reconnaissance)
- Provides quick, out of the box, flight operation
- Safe, Reliable, Stable
- Easy to operate
- Electric propulsion
- Full product support
Technical specifications
| Model | CANNON SNOOP 24 |
|---|---|
| Frame Length | 1250mm |
| Wingspan | 2300mm |
| Frame Weight | 2.0kg |
| Take-off Weight | 12.5kg |
| Frame Material | Carbon Fiber |
| Flight Time | 240mins (No Payload) 180mins (1.5kg Payload) |
| Payload | 2.5kg |
| Max Range | 240km |
| Wind Resistance | Level 5 |
| Working Temperature | -10C to 40C |
| Control Range | 10 – 30km |
| Cruising Speed | 18 – 20m/s |
| Max Flying Speed | 35m/s |
| Max Altitude | 4500m |
| Recommended Battery | 12s, 22000mah 12s, 27000mah 12s, 30000mah |
