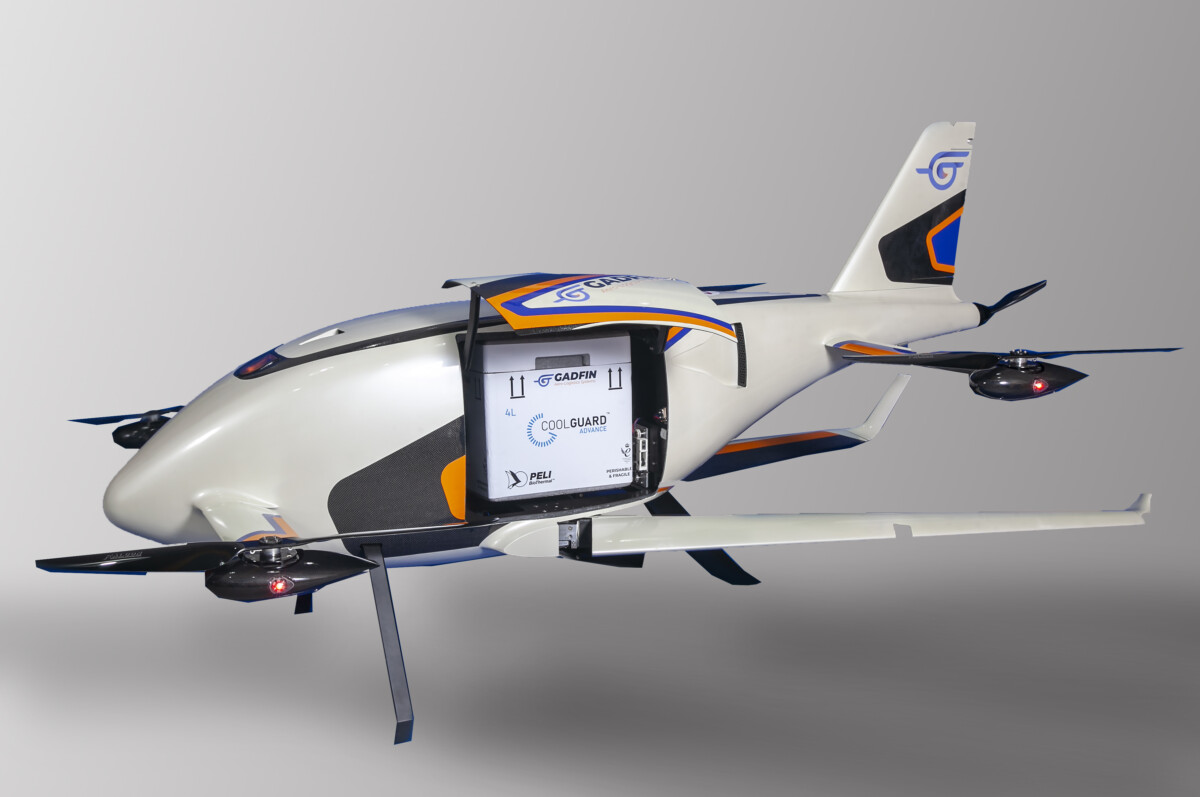

Spirit-One Hybrid eVTOL Drone
Product descripton: Spirit-One Hybrid eVTOL Drone by Gadfin
A proprietary dual-configuration airframe, designed and produced by Gadfin, with capabilities for alternating between a multirotor configuration for electric Vertical Take-Off and Landing (eVTOL) and a fixed-wing configuration designed for long-range flights.
The IP45 waterproof aircraft is entirely electric, using a combination of LiPo batteries to power a set of 4 precision brushless motors for VTOL and Fuel-Cell technology powering the 5th pusher motor used for fast forward flight.
The Spirit-One can deliver payloads up to 10kg (11 lbs.) in 30 liters (1.2 ft3) compartment for a ground-breaking range of 250 km (155 miles) at a speed of 100km/h (62 mph).
The fully automated loading and unloading package compartment is safely housed within the vehicle’s hull and designed to deliver life-saving sensitive medical supplies in a temperature-controlled environment.
The Spirit-One platform can also accommodate various sensors for long-range scanning operations of linear infrastructure such as roads, power lines, oil and gas pipelines, and more.
The Spirit-One has fully redundant safety systems, including an emergency parachute.
Technical specifications
| Specification | Value |
|---|---|
| Airframe | Dual-configuration: Multirotor (eVTOL) + Fixed-wing for long-range |
| Power System | 4 x electric brushless motors (VTOL), 1 x Fuel-Cell pusher motor (forward flight) |
| Propulsion Type | Electric / Fuel-Cell hybrid |
| Waterproof Rating | IP45 |
| Payload Capacity | 10 kg (11 lbs) |
| Payload Compartment Volume | 30 liters (1.2 ft³) |
| Maximum Range | 250 km (155 miles) |
| Maximum Speed | 100 km/h (62 mph) |
| Battery Type | LiPo for VTOL; Fuel-Cell for forward flight |
| Mission Applications | Medical supply delivery, linear infrastructure inspection (roads, power lines, pipelines) |
| Safety Features | Fully redundant systems, emergency parachute |
| Automation | Fully automated loading/unloading, temperature-controlled payload compartment |
