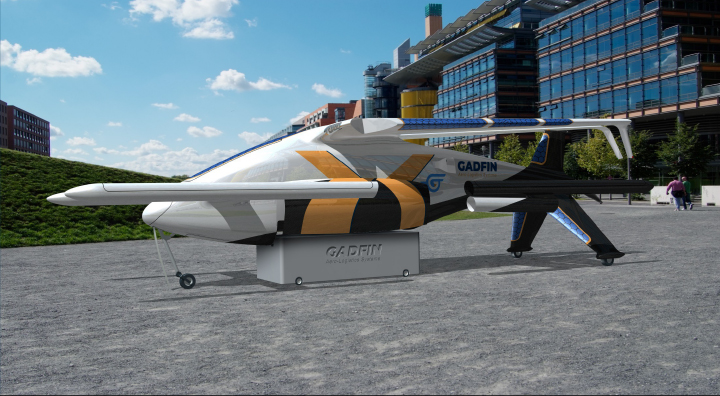

Spirit-X Hybrid eVTOL Drone
Product descripton: Spirit-X Hybrid eVTOL Drone by Gadfin
Extended Range High Capacity Deliveries
The Spirit-X is a next-generation evolution of the Spirit-One, engineered for extended-range, high-capacity missions. Retaining the hybrid eVTOL design, it seamlessly transitions between vertical takeoff/landing and long-range forward flight, combining the agility of multirotors with the efficiency of fixed-wing aircraft.
Designed for large-scale delivery and industrial applications, the Spirit-X can transport up to 150 kg (330 lbs.) of cargo in a massive 1,470-liter (52 ft³) payload compartment, while maintaining environmentally-friendly zero-emission operations. Its modular payload bay supports fully automated loading and unloading and can accommodate sensitive medical supplies, heavy cargo, or specialized sensor packages.
With robust safety and communications systems—including redundant SATCOM, detect-and-avoid, ADS-B, emergency parachutes, and Remote ID—the Spirit-X is fully capable of BVLOS (beyond visual line of sight) operations, even in challenging environments.
Technical specifications
| Specification | Value |
|---|---|
| Maximum Takeoff Weight | 500 kg |
| Payload Capacity | 150 kg (330 lbs.) |
| Payload Volume | 1,470 liters / 2.1 x 1.0 x 0.7 m³ (52 ft³ / 6’10.7″ x 3’3.4″ x 2’3.5″) |
| Flight Range | 280 km (174 miles) |
| Nominal Flight Speed | 100 km/h |
| Maximum Flight Speed | 150 km/h |
| Propulsion | Hybrid eVTOL (LiPo electric VTOL + fuel-cell forward) |
| Environmental Profile | Zero emissions, low noise, IP45 waterproof |
| Safety Systems | Detect-and-avoid, ADS-B, emergency parachute, Remote ID |
