SR-Utility 3.0
Product descripton: SR-Utility 3.0 by SeaRobotics

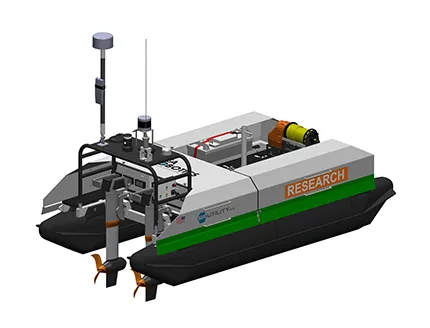

The SR-Utility 3.0 was originally designed as a Heavy Load Water Sampling ASV in 2019 but has been developed to carry an interchangeable suite of customizable sensors and payloads. We call it our “Pick-Up Truck” ASV given its versatility and durability.
The base vehicle was designed to support large multibeam sonar systems and a 50 ft cast winch, while customizable sensors include bathy/side scan sonar and water quality sonde. SeaRobotics’ ASV driver for HYPACK and QINSy provides streamlined interfacing, making the vehicle intuitive, safe and efficient to operate.
The SR-Utility 3.0 comes equipped with 5VDC, 12VDC and 24VDC power sources as standard. User serial, USB and Ethernet ports are also available, allowing users to easily change out/integrate different sensors and equipment.
Interchangeable Payloads
- Single/ Multi-beam echo sounders
- Sub bottom profilers
- LiDAR
- DGPS
- RTK GPS
- Vector GPS
- Side scan sonar
- Backscatter
- ADCP/ADP
- USBLs
- Spectrometer/ Magnetometer
Applications
- Disaster Response
- Research & Development
- Autonomous Survey
- Shallow Water Bathymetry
- Stream Gauging
- Winch Deployment
Technical specifications
| Specification | Value |
|---|---|
| Length | 3.0 m |
| Cast winch capacity | 50 ft (15.2 m) |
| Power outputs | 5 VDC / 12 VDC / 24 VDC |
| Interfaces | Serial, USB, Ethernet |
