SR-Utility 3.6
Product descripton: SR-Utility 3.6 by SeaRobotics

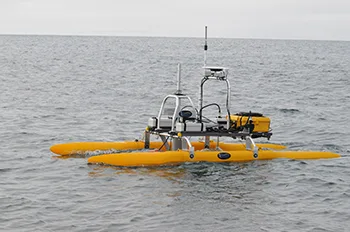

The SR-Utility 3.6 is a collapsible, multifunctional ASV that offers large vessel capabilities in a package that is easily transported and stored (in two standard 65″ pallet containers).
This vehicle is designed specifically to support large multibeam sonar systems and is available with an optional autonomous sound velocity cast winch. In addition, the SR-Utility 3.6 has integrated sensors, including bathy/side scan sonar and water quality sonde. Typical break-down and set-up time is approximately 45 minutes.
The large payload deck and onboard data acquisition computer allow operators to interchange a wide variety of hydrographic sensors without assistance. SeaRobotics ASV driver for HYPACK and QINSy allow for streamlined interfacing making the vehicle intuitive, safe and efficient to operate.
Interchangeable Payloads
- Multi/Single beam sonar
- ADCP
- GNSS receiver
- Sub bottom profiler
- Water quality sonde
- Sound velocity probe
- Cast winch
- LiDAR
- Video
- AIS
Applications
- Disaster Response
- Bathymetric Research
- Water Quality Studies
- Stream Gauging
- Winch Deployment
- Habitat Mapping
- Infrastructure Survey
Technical specifications
| Specification | Value |
|---|---|
| Length | 3.6 m |
| Transport configuration | Collapsible design |
| Transport containers | Two standard 65″ pallet containers |
| Setup / breakdown time | ~45 minutes |
| Sound velocity cast winch | Optional autonomous system |
| Payload deck | Large modular payload area |
| Data acquisition | Onboard data acquisition computer |
| Survey software integration | HYPACK and QINSy ASV drivers |
