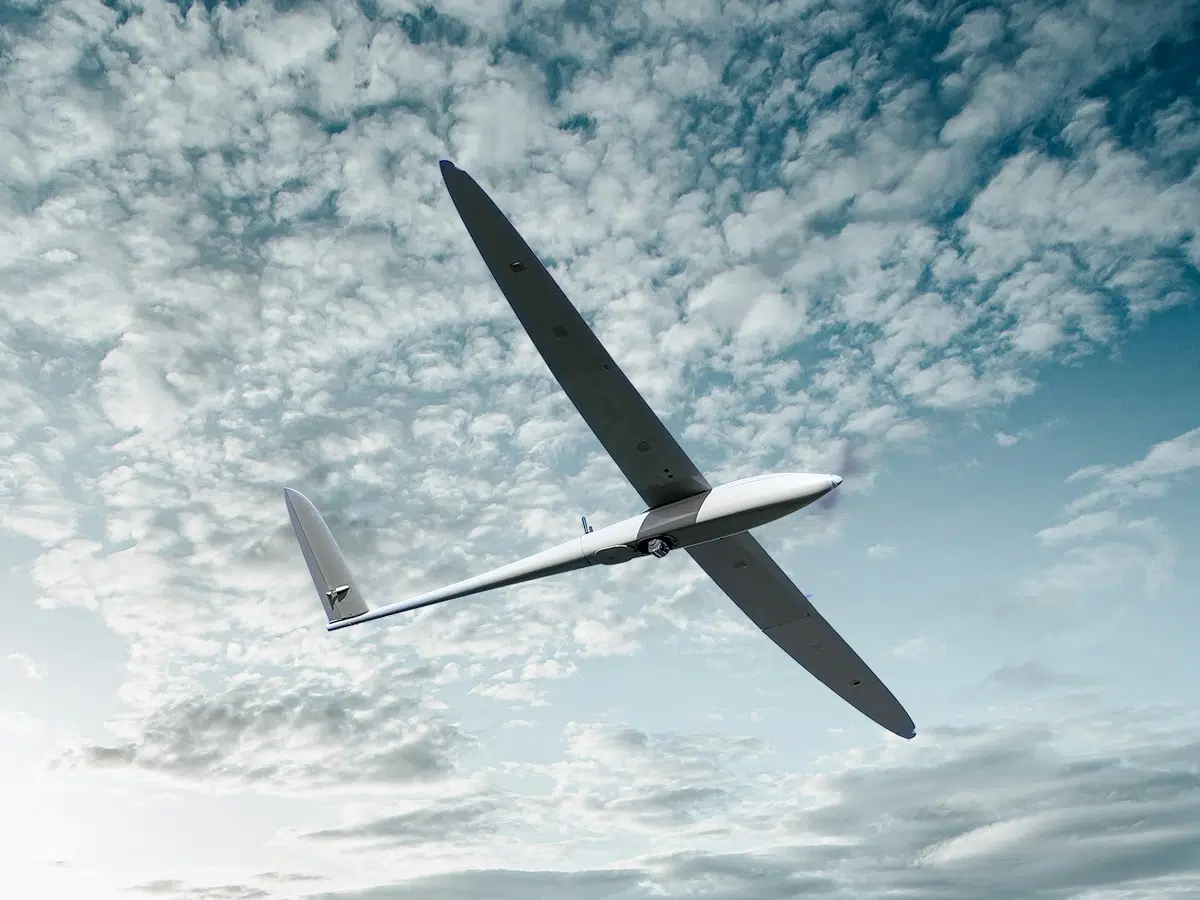

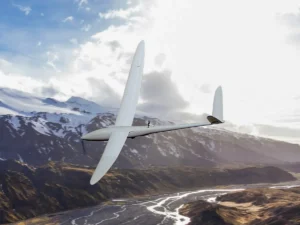

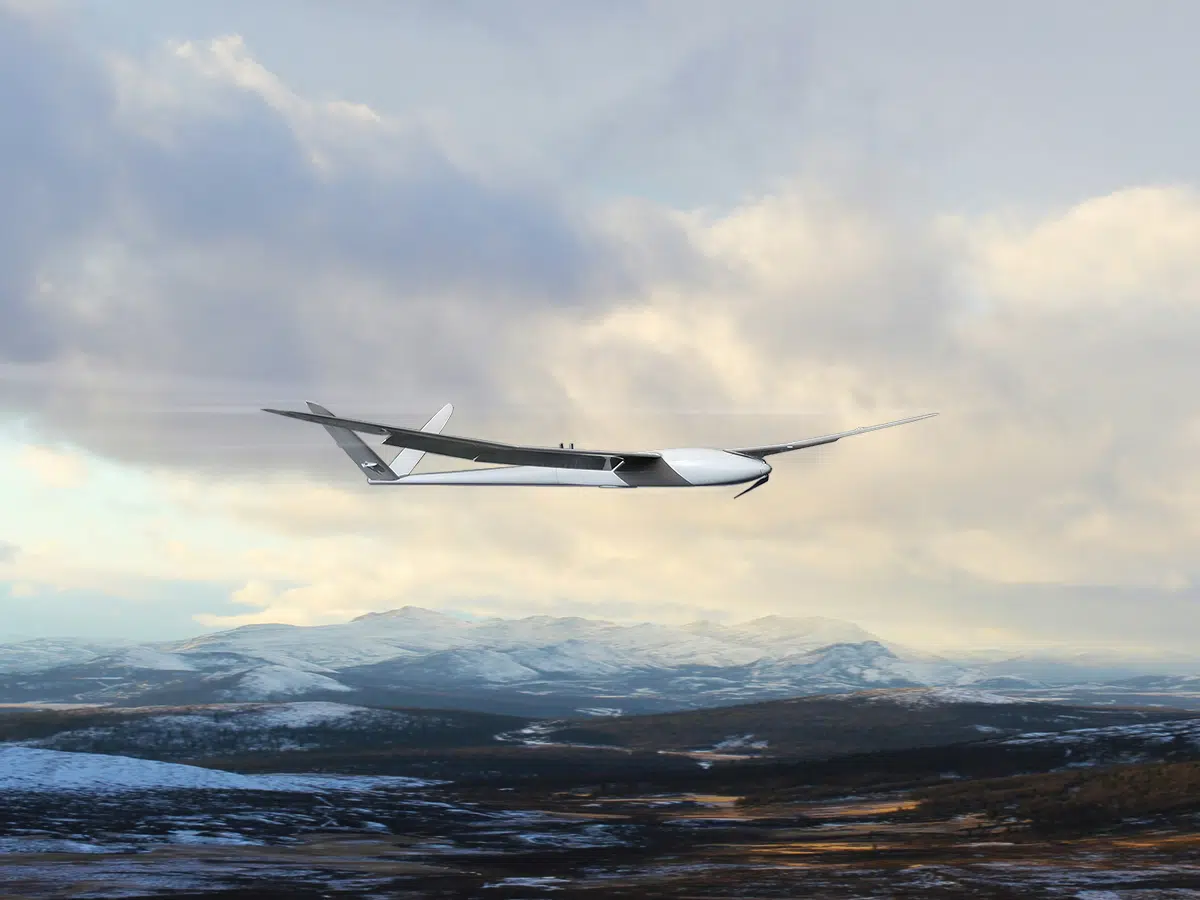

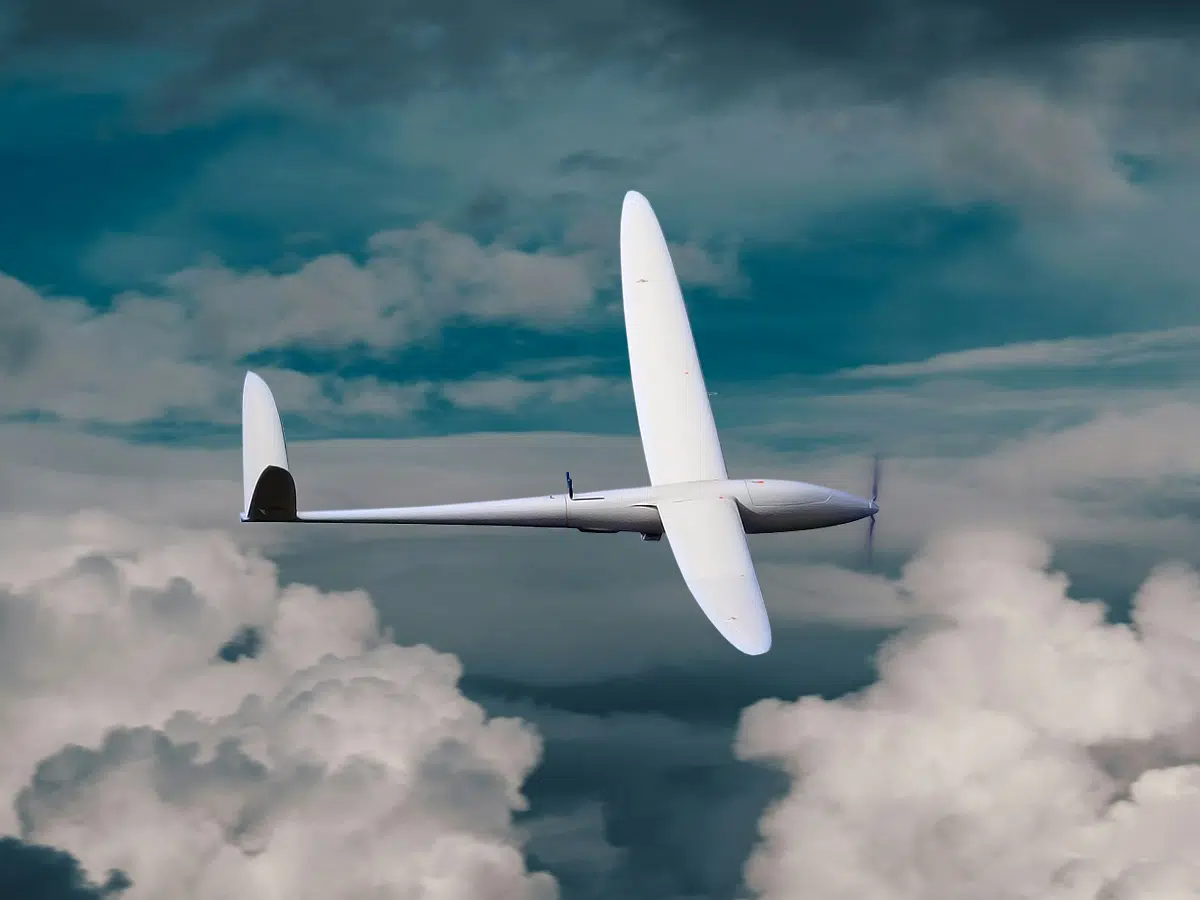

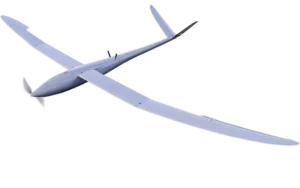

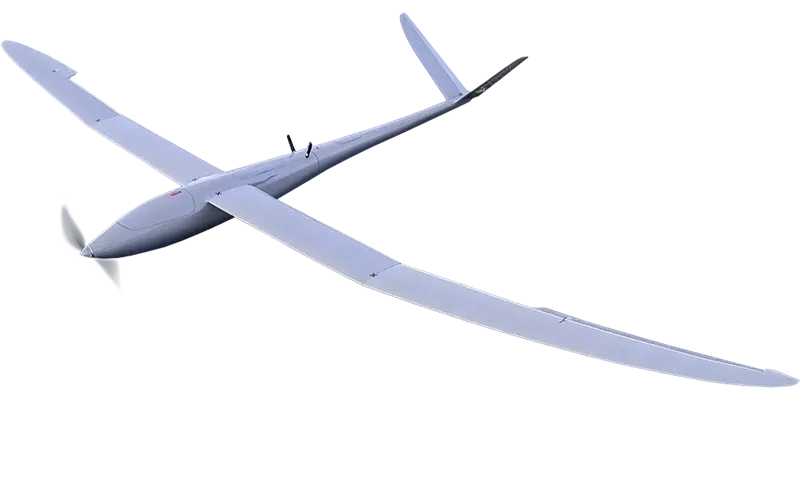

Strix 500
UAV for long range, endurance and ease of use
Product descripton: Strix 500 by EOS Technologie
Key Features
Low logistical footprint
• 3 min assembly by 2 operators
• Hand launch
Minimum training
• 1 week for operators training
• 1 week MRO training
• Programmed waypoints
• Racetrack mode
Maximum reliability
• Automatic take-off & landing
• Flight Termination System (e.g. Return To Home, safe impact)
• Sensors redundancy
Low-cost performances
The lightest in its class, making it safe to be hand launched. Designed to be shipped in a 1.45 m box. Multi-payload capability.
Technical specifications
Distinctions
| Parameter | Value |
|---|---|
| Endurance | 4 h |
| Payload | 1.5 kg |
| Data Link | 80 km |
| Certification | SORA SAIL II |
| Noise Perception | ON > 300 m / OFF > 100 m |
| Assembly Time | 3 min |
| Take-off | Hand launch |
| Shipping | 1.6 m × 0.4 m × 0.55 m |
Airframe & Performance Specifications
| Parameter | Value |
|---|---|
| Wingspan | 4.88 m |
| Length | 2.24 m |
| MTOW | 11 kg |
| Take-off | 5 m hand launch |
| Landing | 30 m belly |
| Stall speed | 45 km/h |
| Cruise speed | 60 km/h |
| Max speed | 120 km/h |
| Max altitude | 5000 m |
Payloads
Raptor Payload
| Parameter | Visible | Infrared |
|---|---|---|
| Resolution | 1980 × 720p | 1980 × 720p |
| Zoom | x40 Optical / x2 Digital | x8 Digital |
| Additional Payload Feature | Value |
|---|---|
| Weight | 640 g |
| Laser pointer | Discover |
STRIX 500 Pack
Ground Control Station Pack Contents
| Item | Quantity |
|---|---|
| Case Compact inside (1.6 m × 0.4 m × 0.55 m) | 1 |
| UAV Strix 425 | X1 |
| GETAC v110 Laptop | X2 |
| Game Pads | X2 |
| Radio control device | X1 |
| Battery loader | X2 |
| Antenna Stand | X1 |
| Antenna S / M / L / XL Range | X1 |
