THOR

Multi-Rotor VTOL Mini-UAS

Company profile

Product descripton: THOR by Flying Production

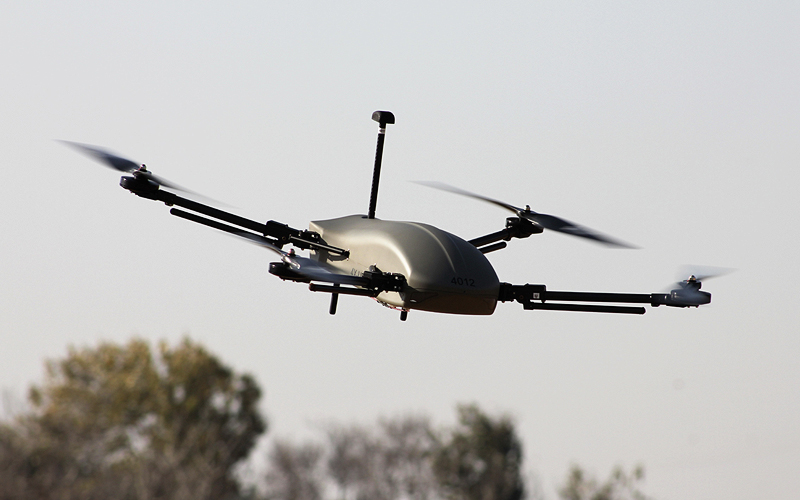

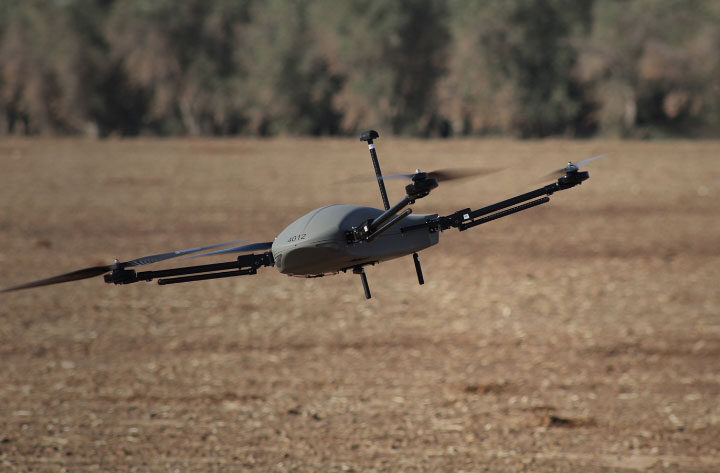

“THOR” is a collapsible VTOL UAV. It provides 360⁰ reconnaissance and can be deployed in all weather conditions. THOR can be operated manually or automatically. Due to its minimal packing size and its rapid deployment by one person, THOR provides rapidly available operational reconnaissance results.

Built From The Ground Up

The Thor family can support diverse operational scenarios. This powerful foldable, backpacked platform can be deployed in less than two minutes and carry up to 15kg payload almost anywhere and in a wide range of weather and terrain conditions.

Landing Capability and Autonomous Mission Flights

Equipped with autonomous takeoff and precision landing capability as well as autonomous mission flights, Thor is suitable for operation in urban areas, as well as in marine zones.

Features

Low signature
Navigation in real time
Modulation through different payloads
Easy to steer
“THOR CYBER” skills

Technical specifications

Key Features

Military tactical “mule” platform
Capable of carrying 0.5 kg to 15 kg
Agile payload configuration: ISR, targeting, EW, cyber among others
Exceptional 1:1.5 payload ratio
Foldable, backpack, fully operational within 2 min
Fully autonomous flight capability
More than 70 min flight endurance with NH2 EO sensor
TRL 9
NDAA certified
Advanced real-time navigation modes
Advanced C4I mission software – “NEVO”

Specification	Value
Maximum Operational Altitude (AGL)	10–1,500 ft
Range	15 km
Operational Speed	0–40 kph
Maximum Altitude (ASL)	12,000 ft
System Weight (including battery)	10 kg
Maximum Takeoff Weight	25 kg
Data Link	L/S-band & LTE (optional)
Payload Weight	Up to 15 kg
Endurance	Up to 75 min
MIL-STD Certification	810F
