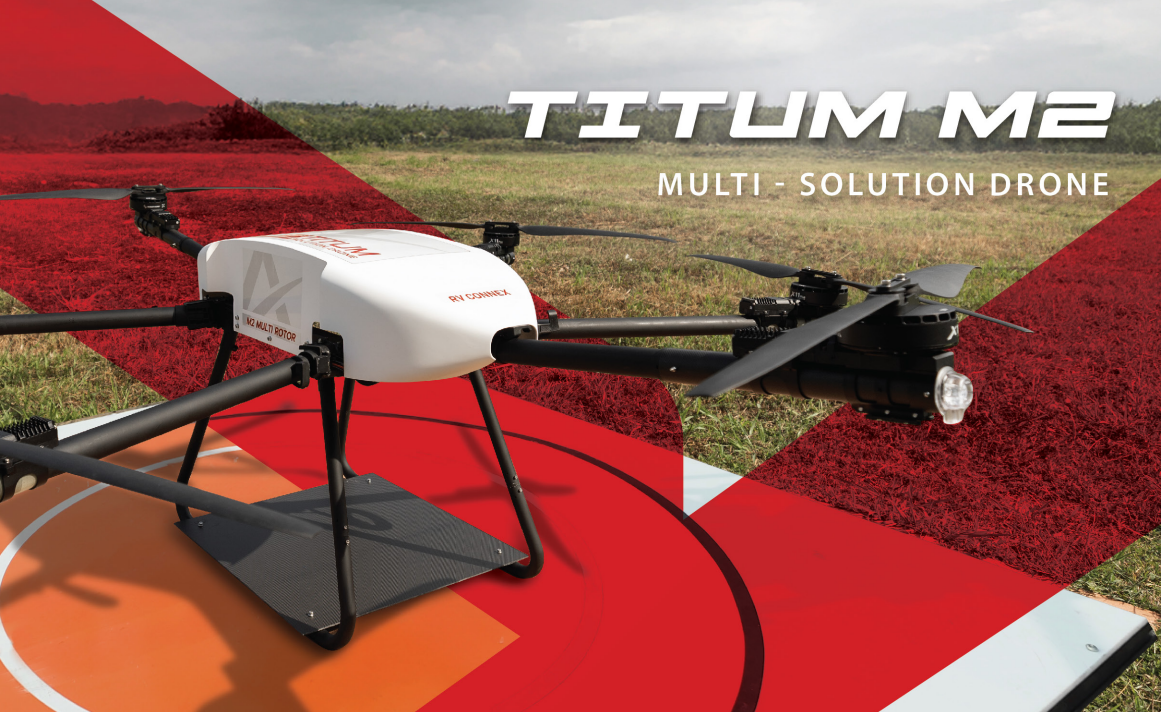

TITUM М2
Product descripton: TITUM М2 by RV Connex
Enterprise Drone for High-Risk Missions & Versatile Applications

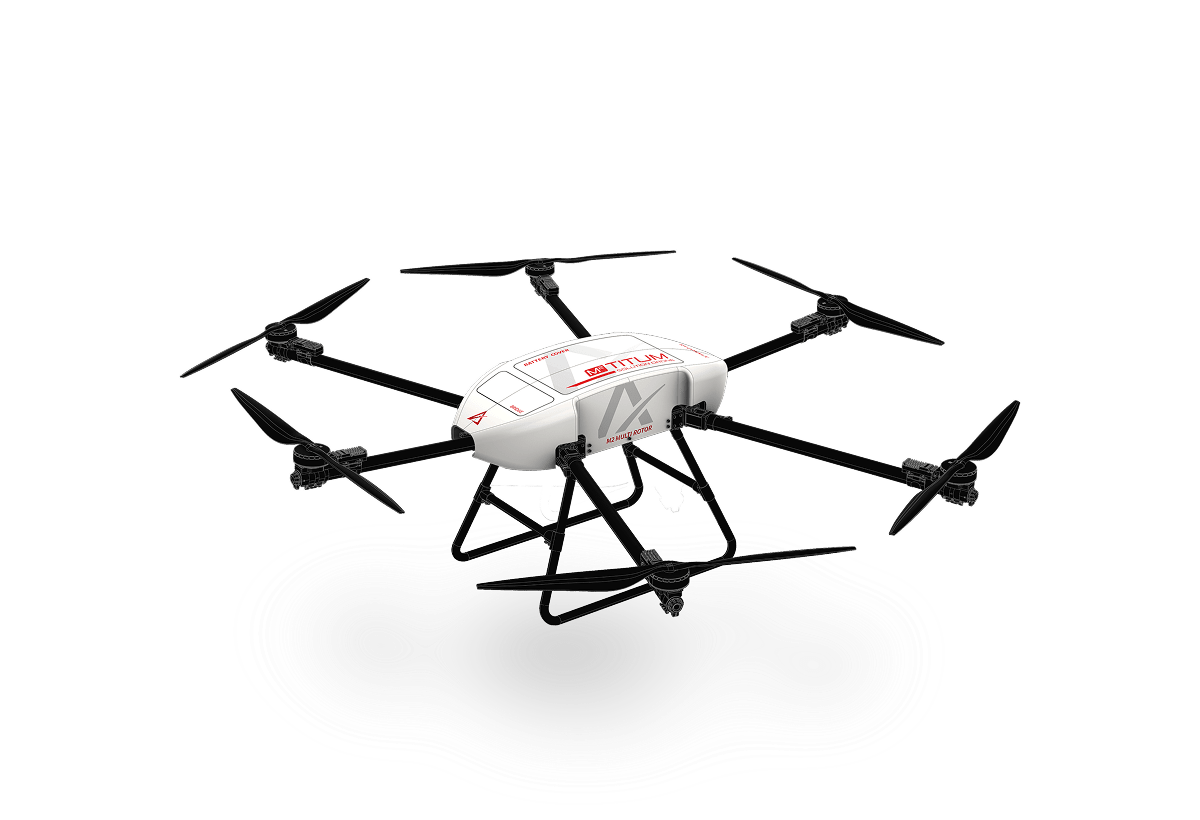

TITUM M2 (Multi-rotor & Multi-purpose) is an enterprise drone designed to meet diverse mission payload needs on a single launch vehicle. It has specific applications and features that enable operation in high-risk areas and life-threatening missions, serving both public and private sectors.
Applications
Emergency and Disaster Management:
- Wildfire monitoring and firefighting

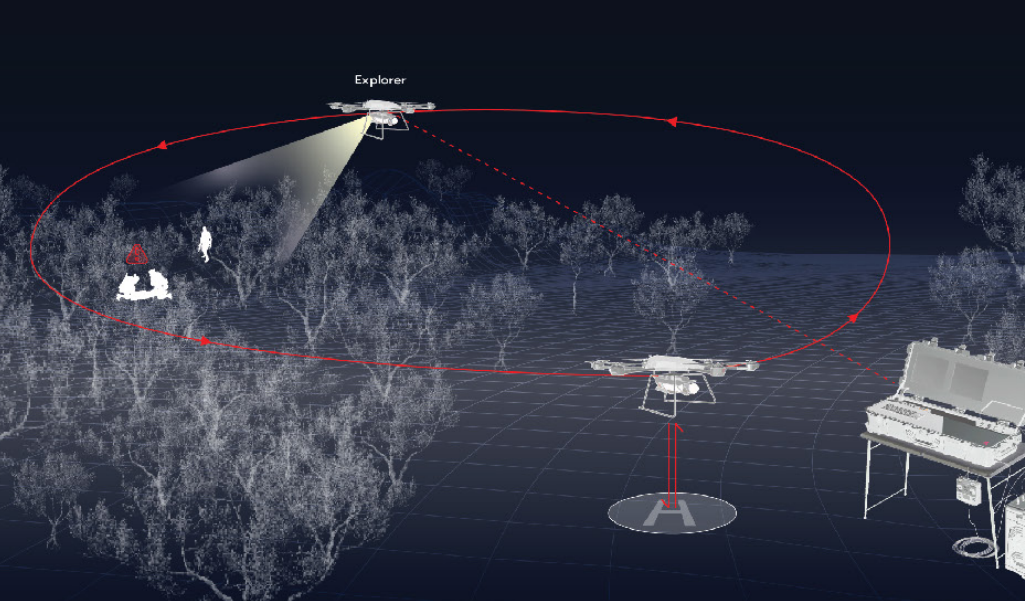

- Search & rescue
- Disaster relief

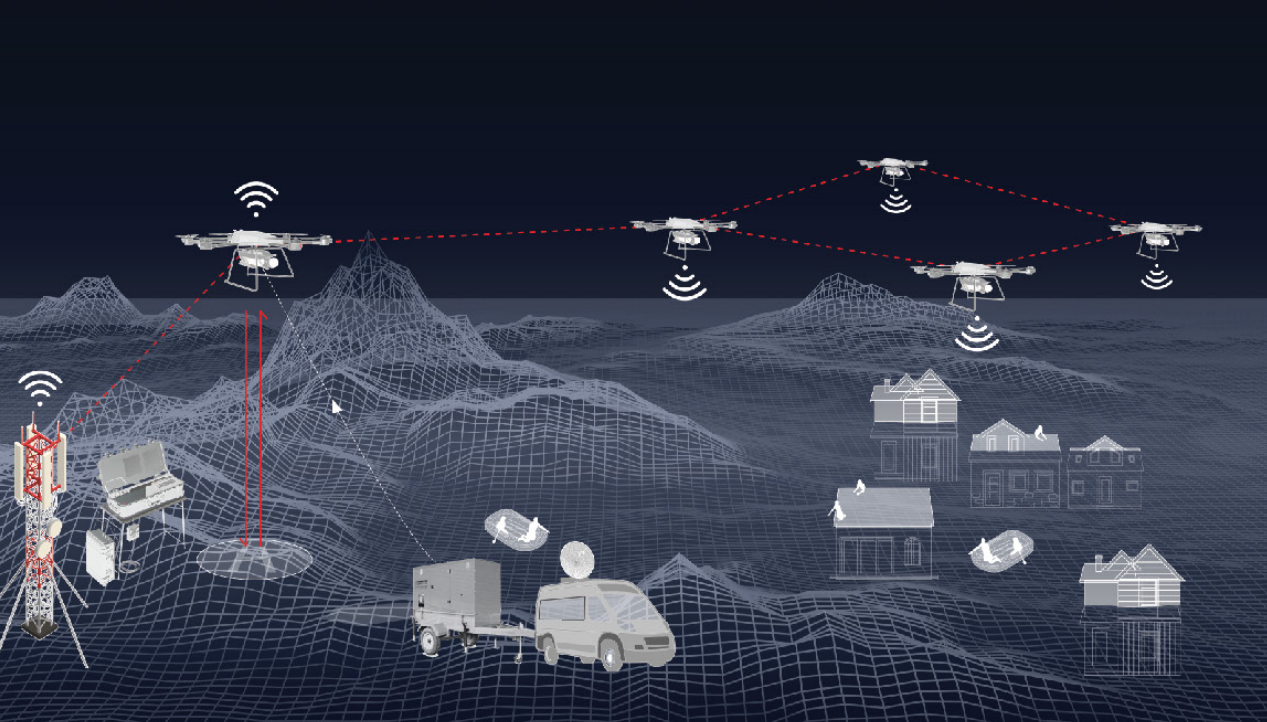

- Radio communication repeater
Transportation and Logistics:

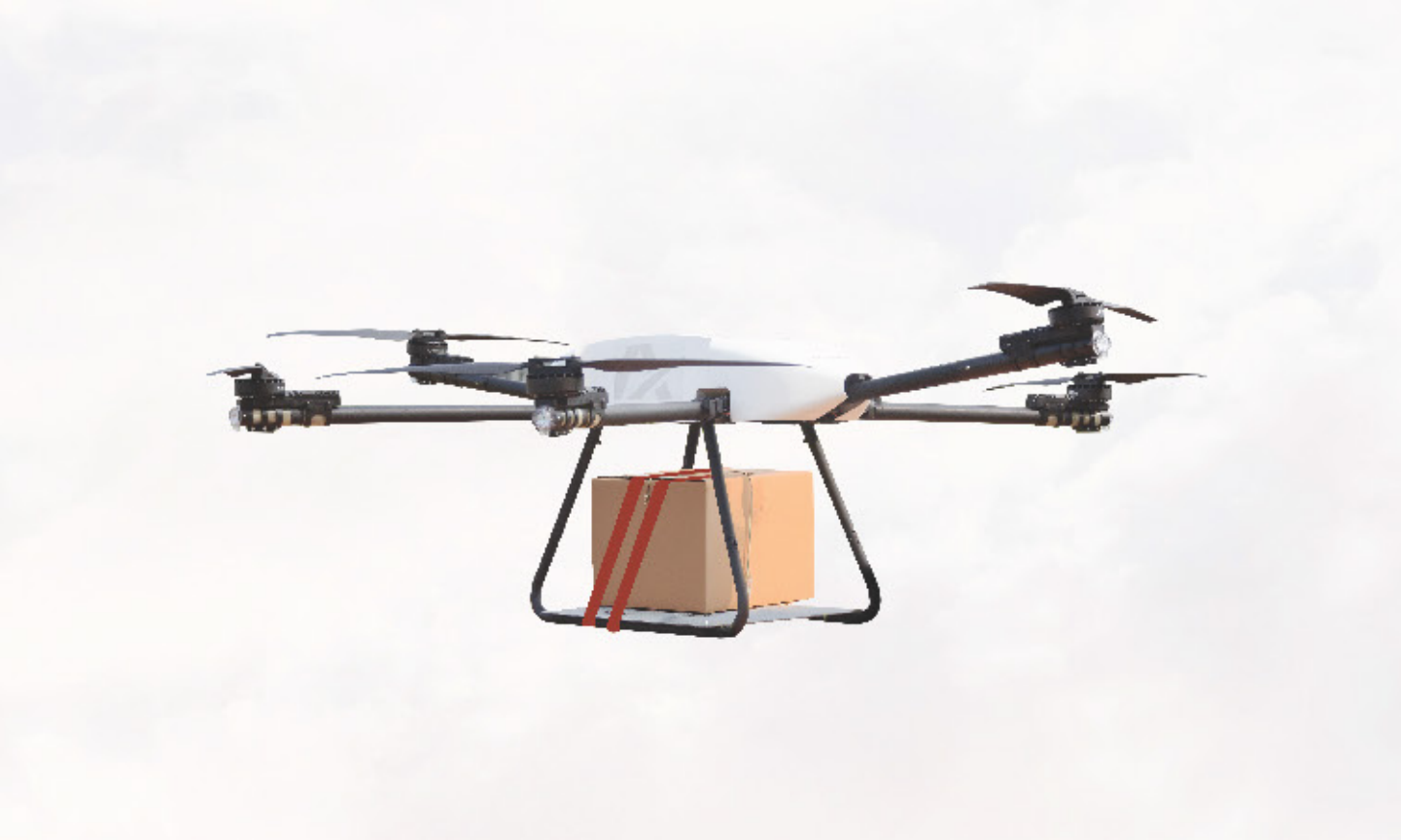

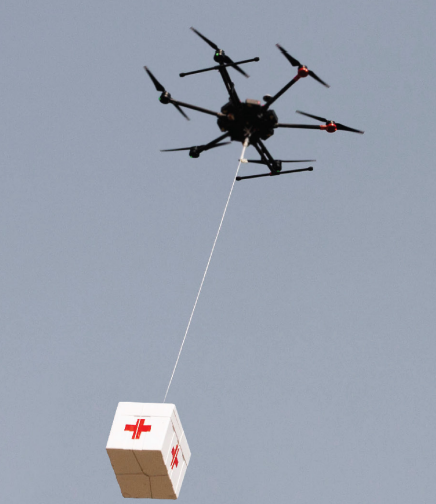

- Advanced delivery solutions
- Heavy loads carrying
Infrastructure Inspection:
- Power transmission line inspection
- Railway inspection
- Oil and gas pipeline inspection
- Photovoltaic and wind turbine inspections
Surveying and Mapping:
- 3D mapping
- Agriculture: detect plant damage and spray services
Features
-
Fully automated and configurable autopilot
-
Onboard data logger with encryption
-
Dual datalink with LOS range up to 20 km
-
Redundant sensors
-
Obstacle avoidance & collision detection sensors (front and back)
-
Camera auto landing
Technical specifications
| Parameter | Value |
|---|---|
| Maximum Take-off Weight | 90 kg |
| Payload Capacity | Up to 30 kg (excluding battery) |
| Number of Rotors | 6 |
| Max Range | 13 km |
| Traveling Max Speed | 40 km/hr |
| Maximum Flight Altitude | 700 m |
| Position Accuracy | RTK + 5 cm |
| Operating Temperature | -10°C to +50°C |
| IP Rating | IP54 |
| Hovering Endurance | 5 kg payload: up to 50 min; 30 kg payload: 18 min |
| Traveling Endurance | 5 kg payload: up to 40 min; 30 kg payload: 15 min |
Payload Configurations
-
AI Camera
-
Oil/Gas Sensor
-
3D Mapping Lidar
-
Magazine for up to 8 Fire Extinguishing Balls
-
High-quality Phase One Camera
-
Infrared Camera
-
Heavy Loads Spray Cleaner
Remote Control and Ground Station
-
User-friendly software for complete drone control
-
Compact size and lightweight
-
Endurance: 3 hrs (external battery 6 hrs)
Support Package Includes
-
Training
-
Spare parts
-
Customer service online support
-
Documentation
-
Flight simulator (optional)
