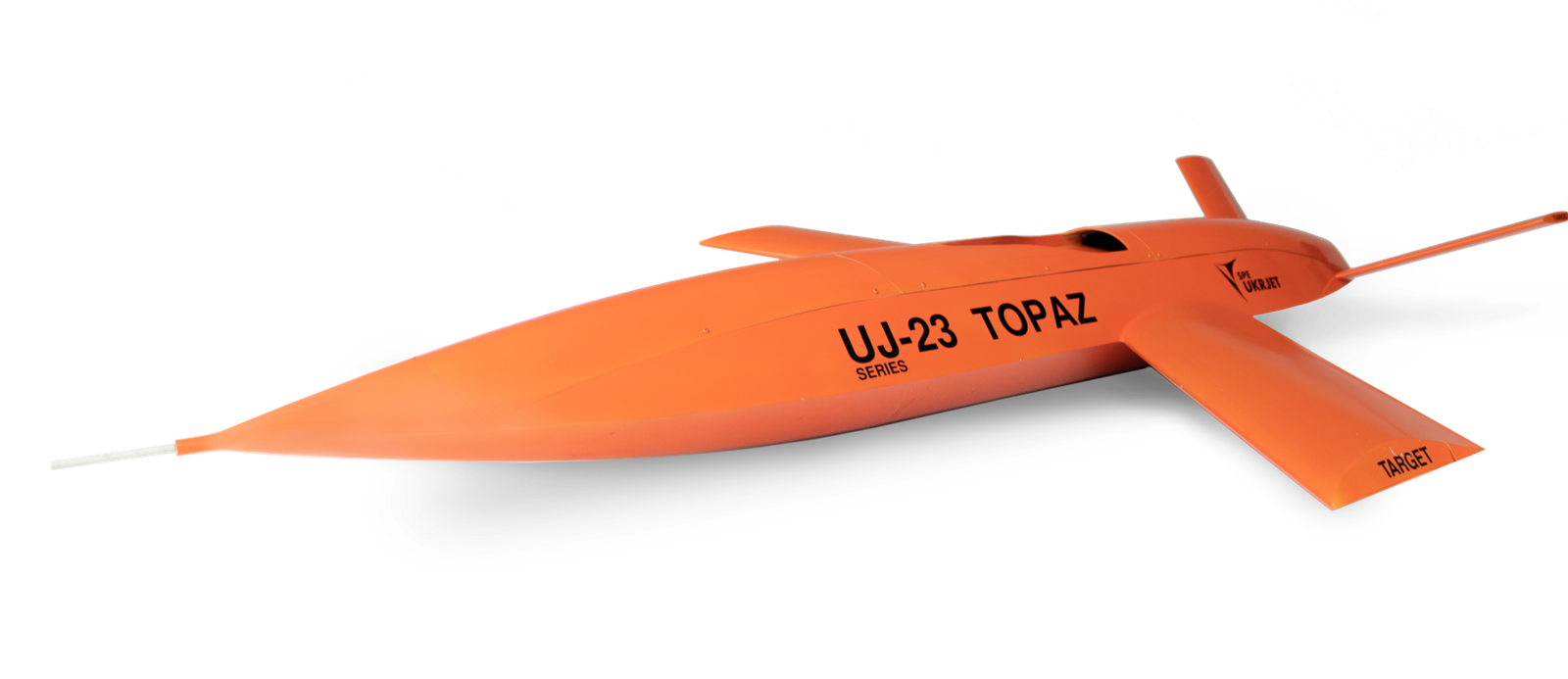

UJ-23 TOPAZ
Multi‑purpose jet UAV for training, ISR, and search & rescue operations in all-weather and ECM conditions.
Product descripton: UJ-23 TOPAZ by UkrJet
UJ-23 TOPAZ is a multi-purpose unmanned aircraft system with jet UAV that is able to be used at any time of day and season, in visual and adverse weather conditions and under electronic countermeasures.
UJ-23 TOPAZ can perform tasks for training, intelligence, search and rescue operations for military and rescue services.
UAS components:
- UAV with interchangeable payload
- Ground control station
- Tracking antenna systemBoxes for transportation and storage with high level of protection
- Spare parts tools and accessories set
Technical specifications
| Radius of controlled flight, km | 100 |
| UAVs speed (km/h): | |
| — cruise speed | 600 |
| — maximum speed | 800 |
| — minimal speed | 200 |
| Height of flight, m: | |
| — minimum | 50 |
| — maximum | 6000 |
| Maximum flight time, min | Up to 90 |
| Maximum flight time, minutes | 20 |
| Maximum Ground Control Station performance, h | 24/7 |
| Operating temperature range, °С | – 40…+ 50 |
| Payload weight, kg | Up to 10 |
| UASs deployment time, min | 10 |
| UASs rollup time for transportation, min | 5 |
| UAVs reflight time, min | 3 |
| Takeoff type | From launching unit in auto mode |
| Landing type | With parachute in auto mode |
| Weather | Visual and adverse weather |
| External crew, persons | 2 |
