UNEX UGV
Product descripton: UNEX UGV by ABRIS DG

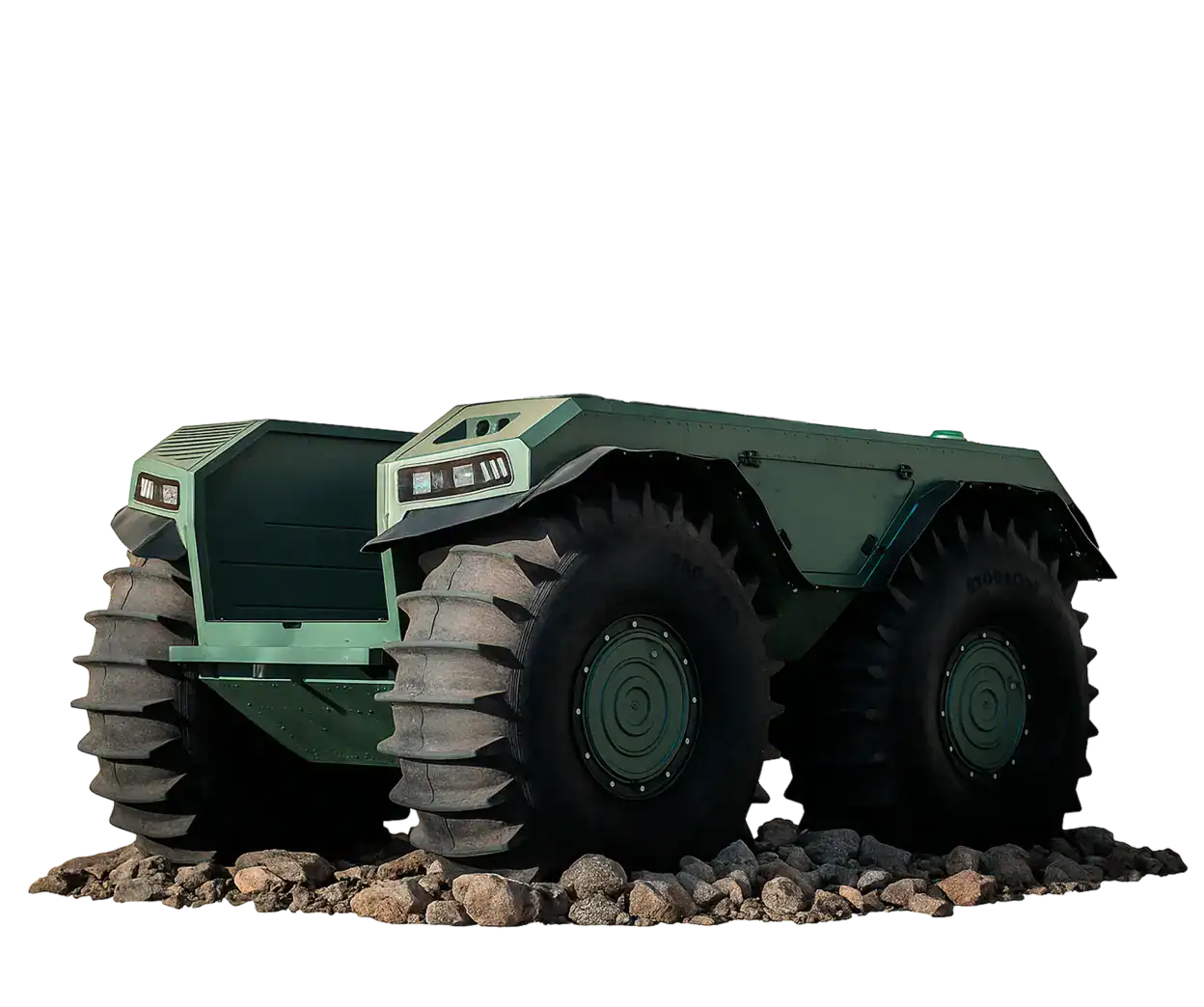

UNEX is a next-generation unmanned ground vehicle (UGV) developed as a multi-role autonomous platform for military, security, and humanitarian operations. Designed to operate in contested and demanding environments, the system combines all-terrain mobility, amphibious capability, modular mission payloads, and resilient communications architecture.
The platform is capable of supporting logistics operations, casualty evacuation, demining, reconnaissance, infrastructure protection, and combat support missions while reducing personnel exposure to risk. Its fully electric propulsion system provides low-signature operation and enables deployment in sensitive operational environments.
Technical specifications
| Parameter | UNEX UGV |
|---|---|
| Platform Type | Amphibious Unmanned Ground Vehicle (UGV) |
| Propulsion | Fully Electric |
| Dry Weight | 2,200 kg |
| Maximum Payload | Up to 1,700 kg |
| Maximum Speed | Up to 20 km/h |
| Ground Clearance | 600 mm |
| Obstacle Crossing Capability | Up to 1 m |
| Operational Radius | 10+ km |
| Battery Type | Li-Ion |
| Battery Capacity | 78 kW |
| Motor Power | 32.7 kW (each motor) |
| Endurance | Up to 6 h |
| Operating Temperature | -30°C to +40°C |
| Mobility | Land, Water, Ice, Snow, Mud, Sand, Rubble |
| Amphibious Capability | Yes |
| Navigation | Semi-Autonomous / AI-Assisted |
| GNSS-Denied Operation | Yes |
| Communication Options | Radio, LTE/5G, UAV Relay, LEO Satellite |
| EW Resilience | Yes |
| NATO Compliance | STANAG Certified |
| NATO Stock Number (NSN) | Assigned |
Key Features
- Fully electric unmanned ground vehicle
- Amphibious operation on land, water, snow, ice, and mud
- Modular payload architecture
- Semi-autonomous and AI-enhanced navigation
- GNSS-denied operational capability
- Electronic warfare resilient communications
- NATO-standard compliance with assigned NSN
- Silent low-signature operation
- Patented ultra-low-pressure tyre technology
- Interoperable with UAV relays, satellite networks, and tactical communication systems

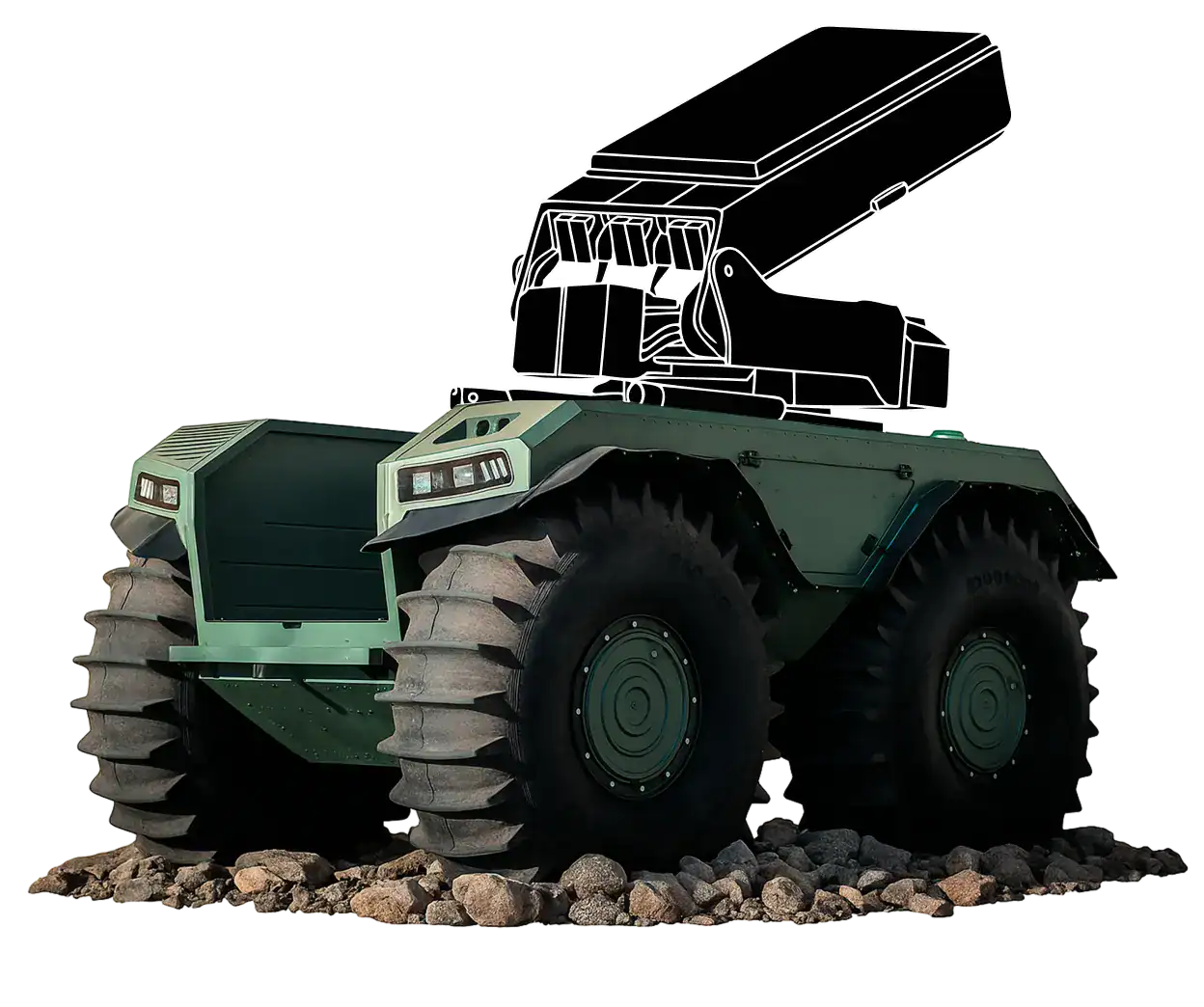

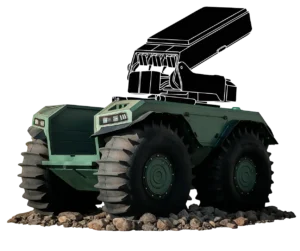

Mission Configurations
UNEX supports multiple mission modules, including:

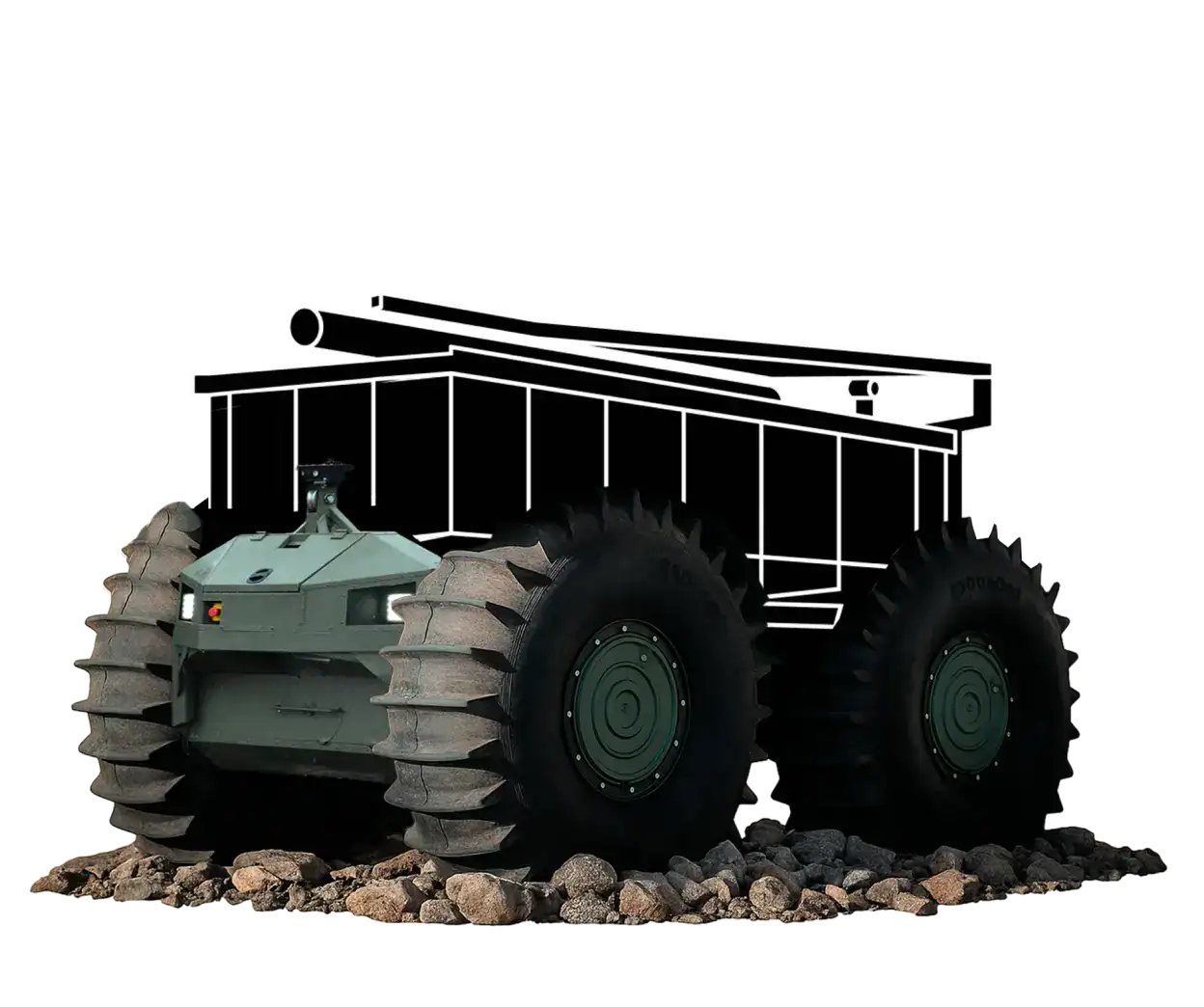

- Logistics and cargo transport
- Casualty evacuation (CASEVAC)
- Remote weapon stations (RCWS)
- Anti-tank guided missile (ATGM) systems
- SHORAD air defence modules
- EOD and demining kits
- ISR sensor packages
- Radar payloads
- FPV launcher systems
- Counter-UAS solutions
Operational Advantages
All-Terrain & Amphibious Mobility
UNEX operates across mud, rubble, snow, ice, sand, rivers, lakes, and coastal waters. The vehicle can overcome obstacles up to 1 meter high and is capable of transitioning from water onto ice.
Autonomous & AI-Enhanced Operations
The platform supports semi-autonomous navigation, follow-me mode, autonomous route execution, and operation in GNSS-denied environments.
Survivability & Low Signature
Electric propulsion significantly reduces acoustic signature, while patented ultra-low-pressure tyres minimize ground pressure and reduce the risk of triggering explosive hazards.
Flexible Communications
UNEX supports multiple communication architectures:
- Handheld ground controllers
- Fixed towers and telescopic masts
- Multirotor UAV relays
- Fixed-wing UAV relays
- LTE / 5G networks
- LEO satellite communications
Applications
- Logistics and resupply
- Casualty evacuation (CASEVAC)
- Combat support missions
- Reconnaissance and ISR
- Demining operations
- Counter-IED missions
- Border security
- Infrastructure protection
- Disaster response
- Humanitarian assistance
- Flood rescue operations
