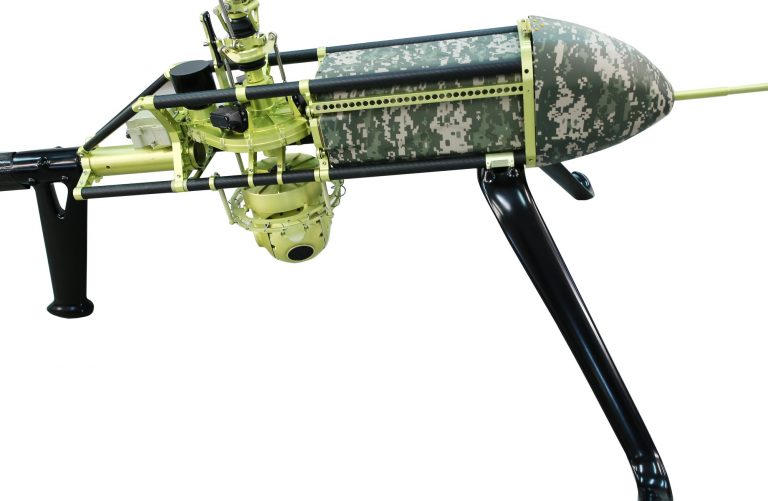

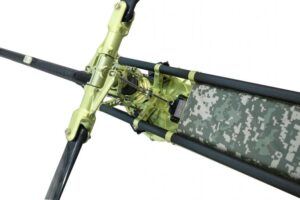

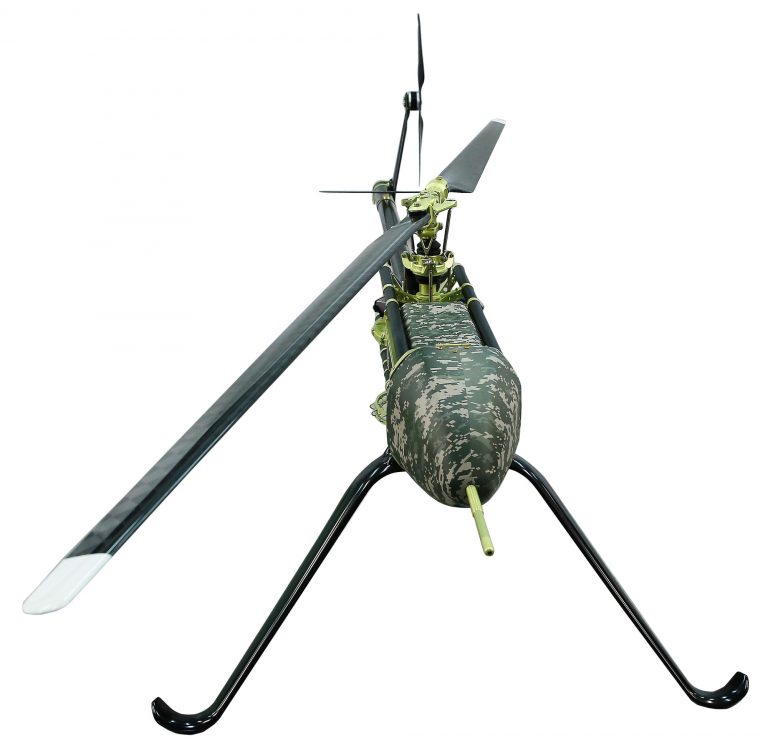

UVH-25EL Unmanned Helicopter
Product descripton: UVH-25EL Unmanned Helicopter by UAVOS Inc.
The UVH 25EL is an industrial grade helicopter with an electric motor and Li-Ion rechargeable batteries.
Take-off and landing as well as mission are carried out automatically.
Optional semi-automatic control.
Emergency operation modes.
Diagnostics, flight planning and remote control can be performed via a wireless network connection.
Proprietary Autopilot.
APPLICATION
- Video surveillance and monitoring
- Payload delivery (max. 5 kg)
- Radio link range extension and retransmission
- R&D flying laboratory (meteorology, hydrology, earth monitoring, etc.)
Technical specifications
OPERATIONS SPECIFICATIONS
|
Parameters |
Data |
|---|---|
|
Operating temperature |
-20°C…+40°C |
|
Base |
Takeoff and landing area 10m*10m |
|
Control modes |
|
|
– Main – Assisted – Emergency situations |
Fully automatic |
|
Takeoff and landing |
Fully automatic |
|
Emergency landing |
Parachute |
|
Ground – based landing equipment |
Not required |
|
Storage |
1. Heli in box – 42 kg (Packing dimensions – 1700x300x500 mm) |
SPECIFICATIONS
|
Parameters |
Data |
|---|---|
|
Cruising speed |
45 km/h |
|
Maximum speed |
100 km/h |
|
Length |
2670 mm |
|
Main rotor diameter |
2600 mm |
|
Height |
670 mm |
|
Wheelbase |
790 mm |
|
Engine type |
BLDC Electric |
|
Motor power |
5 kW |
|
Battery type |
Li-Ion |
|
Onboard power supply |
12V |
|
Max. payload |
5 kg |
|
MTOW |
25 kg |
|
Max. climbing capacity |
3 m/s |
|
Max. wind speed during taking off or landing |
14 m/s (27kts) |
|
Operational range |
67 km |
|
Practical ceiling |
3500 m |
|
Endurance |
1.5 h |
|
Parachute (optional) |
ballistic |
|
TBI (inspections, maintenance) |
500 h |
|
Altimeter |
radio |
