VA25 VTOL UAV
Product descripton: VA25 VTOL UAV by T-DRONES
VA25 VTOL UAV Platform
VA25 is a VTOL (vertical take-off and landing) UAV platform designed for long-endurance missions that demand high reliability, safety, and operational flexibility. Its robust power system and locking propeller design significantly enhance flight stability and efficiency, enabling the aircraft to perform confidently across a wide range of mission scenarios.
Key Features

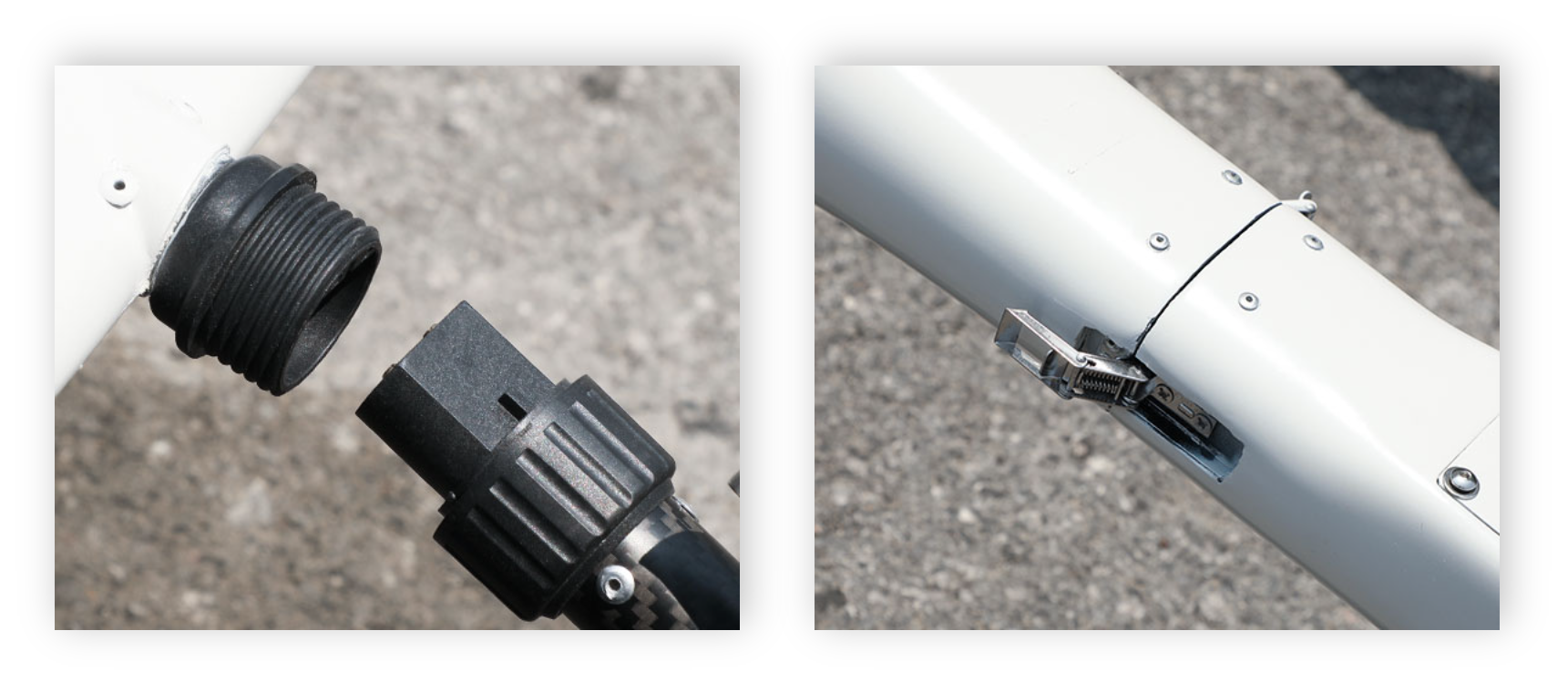

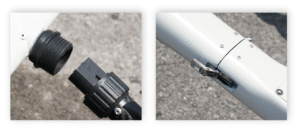

Locking Propeller Design
The propellers remain firmly locked even in strong winds, preventing unwanted swing and significantly improving overall flight efficiency, safety, and stability.
High Performance
-
Up to 210 minutes of flight endurance
-

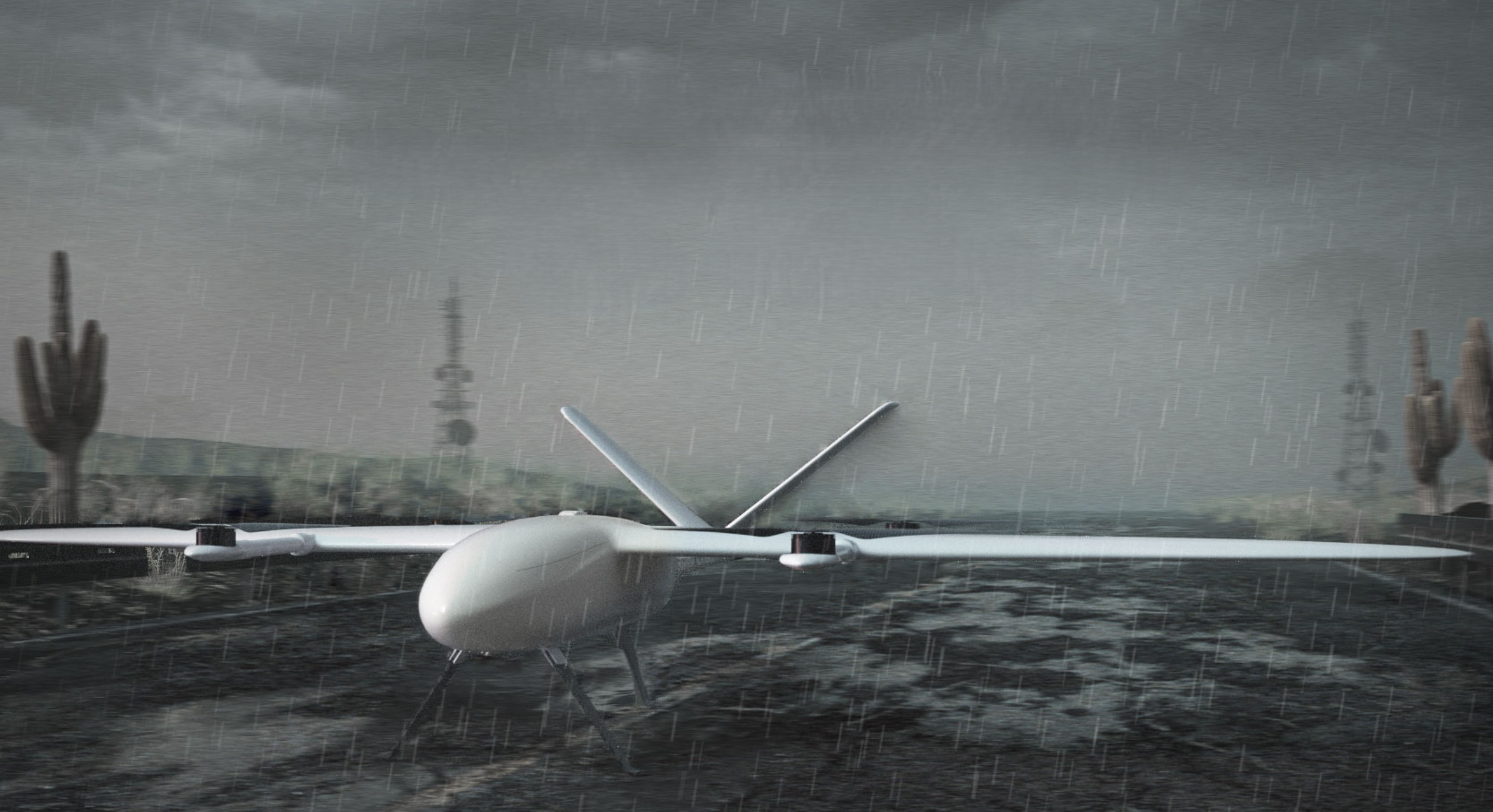

IP55 environmental protection
-
Average cruising speed of 80–90 km/h
Convenient Design
Engineered for rapid deployment, VA25 supports quick assembly and disassembly, completing setup in as little as 3 minutes.
High-Efficiency Customized Power System
A customized T-MOTOR propulsion system delivers higher efficiency, improved reliability, and enhanced safety, specifically optimized for long-endurance operations.
Diverse Payload Capability
VA25 supports a wide range of interchangeable payloads, allowing operators to configure the platform to meet multiple mission requirements with ease.
Technical specifications
| Model | VA25 |
| Frame Length | 1.56m（Including Pitot Tube1.62m） |
| Frame Weight | ＜3.5kg |
| Wingspan | 2.5m |
| Take off Weight | 13kg |
| Frame Material | Carbon Fiber Composite PVC |
| Flight Time | 210min（1kg Payload） |
| Wind Resistance | Level 6 |
| Protection | IP55 |
| Working Temperature | -15℃-50℃ |
| Propulsion System | T-MOTOR |
| Recommended Control System | PIXHAWK & CUAV |
| Speed Range | 80-120km/h |
| Cruising Speed | 80-90km/h |
| Payload | ＜2kg |
| Landing Way | Vertical Takeoff and Landing |
| Batteries | ARES 6S 30000mah *2 PCS |
