VOLY 50
Product descripton: VOLY 50 by Volansi

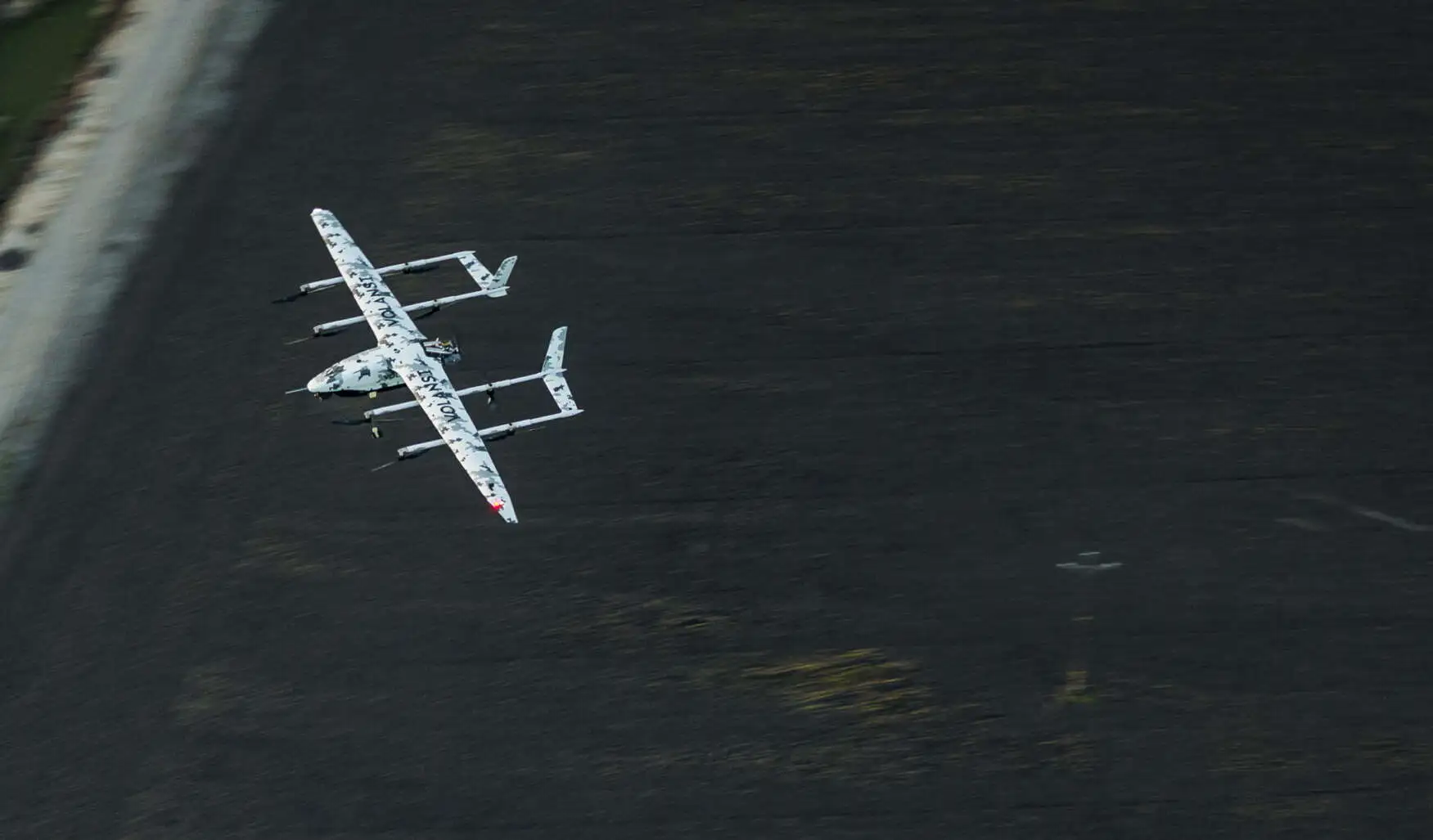

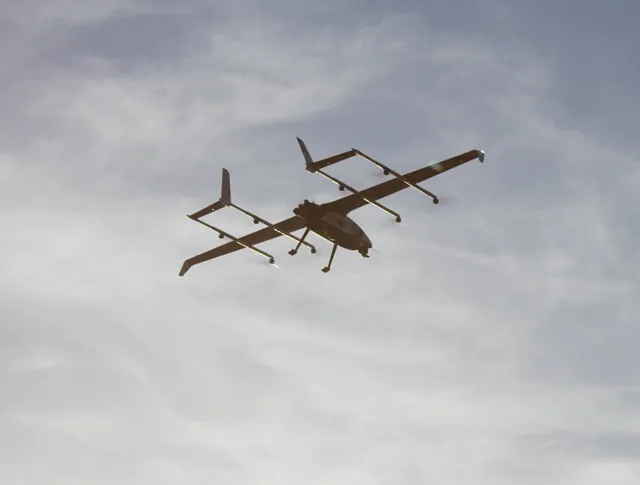

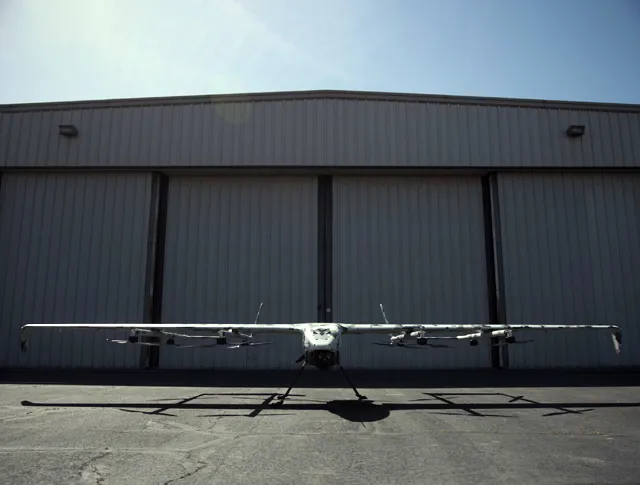

Voly UAS is a hybrid vertical takeoff and landing (VTOL) solution that offers unique advantages including the ability to simultaneously carry cargo, additional fuel and Multi-INT sensors. The Voly is future ready. It overcomes contested logistics spaces by ensuring forward-deployed units are stocked with the parts and supplies needed for tomorrow’s operations today.
KEY FEATURES
Modular LRUs
Increased modularity and two-person portability enabling compact transport, quick assembly and disassembly using only three tools
Transportability
Palletized transport optimized for multiple fixed-wing aircraft, rotary aircraft and ground vehicles
RSTA On the Move (OTM)

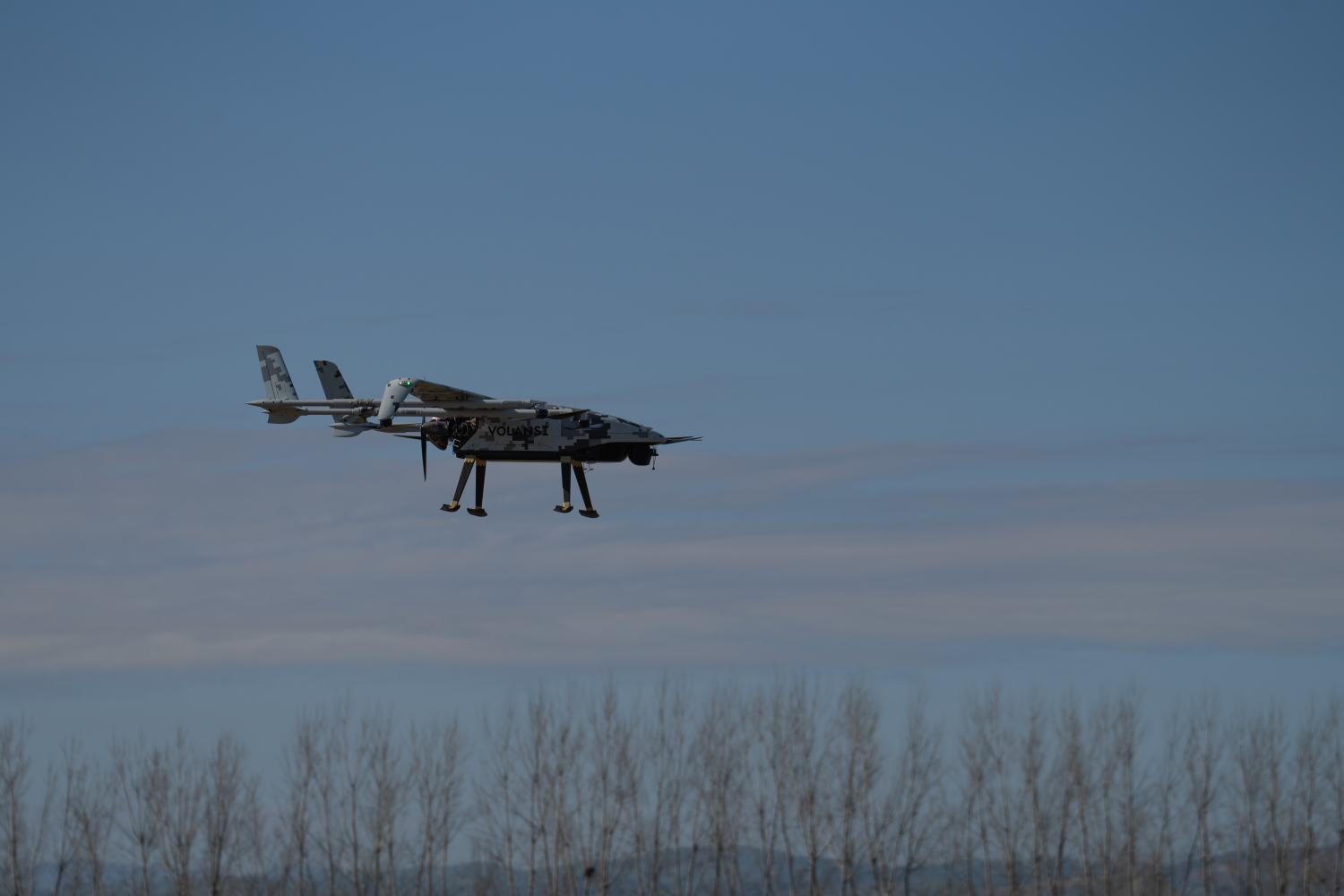

Runway independent point takeoff and landing providing true VTOL RSTA capability in challenging terrain, obstacles, weather and threat environment to support demanding missions
Grow with the Mission
Large payload capability combined with vertical lift capability to meet the most demanding RSTA missions
Maneuverability
The VTOL system has ample excess thrust, enabling safe and confident flight control to meet and exceed high winds and inclement weather variables in the most challenging operational environments
MOSA
Designed with a Modular Open Systems Approach enabling the rapid integration of technology and payloads
Technical specifications
-
Payload: Up to 50 lbs (22.7 kg)
-
Range: Over 400 miles (644 km), depending on payload configuration
-
Speed: Up to 80 knots (148 km/h)
-
Flight Time: Up to 11 hours.
-
Features: Modular design for rapid field assembly; ideal for delivering critical cargo and ISR operations in remote areas with minimal infrastructure.
- Wingspan: 24 ft
- Ceiling: 20,000 ft
- Endurance: 20 hr
- Cruise Airspeed: 57 kts
- Launch & Recovery: VTOL
- Communications: Ku, L, S or C Band
- Payloads:
• Trillium HD-80/95
• WESCAM MX-10D
• ESM, Synthetic Aperture Radar
• Communications Relay
• Ultra Endurance Fuel Tank
