WAM-V® 16
Product descripton: WAM-V® 16 by Ocean Power Technologies (OPT)

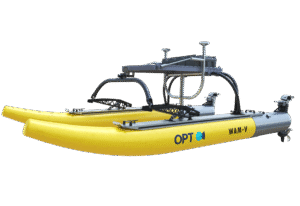

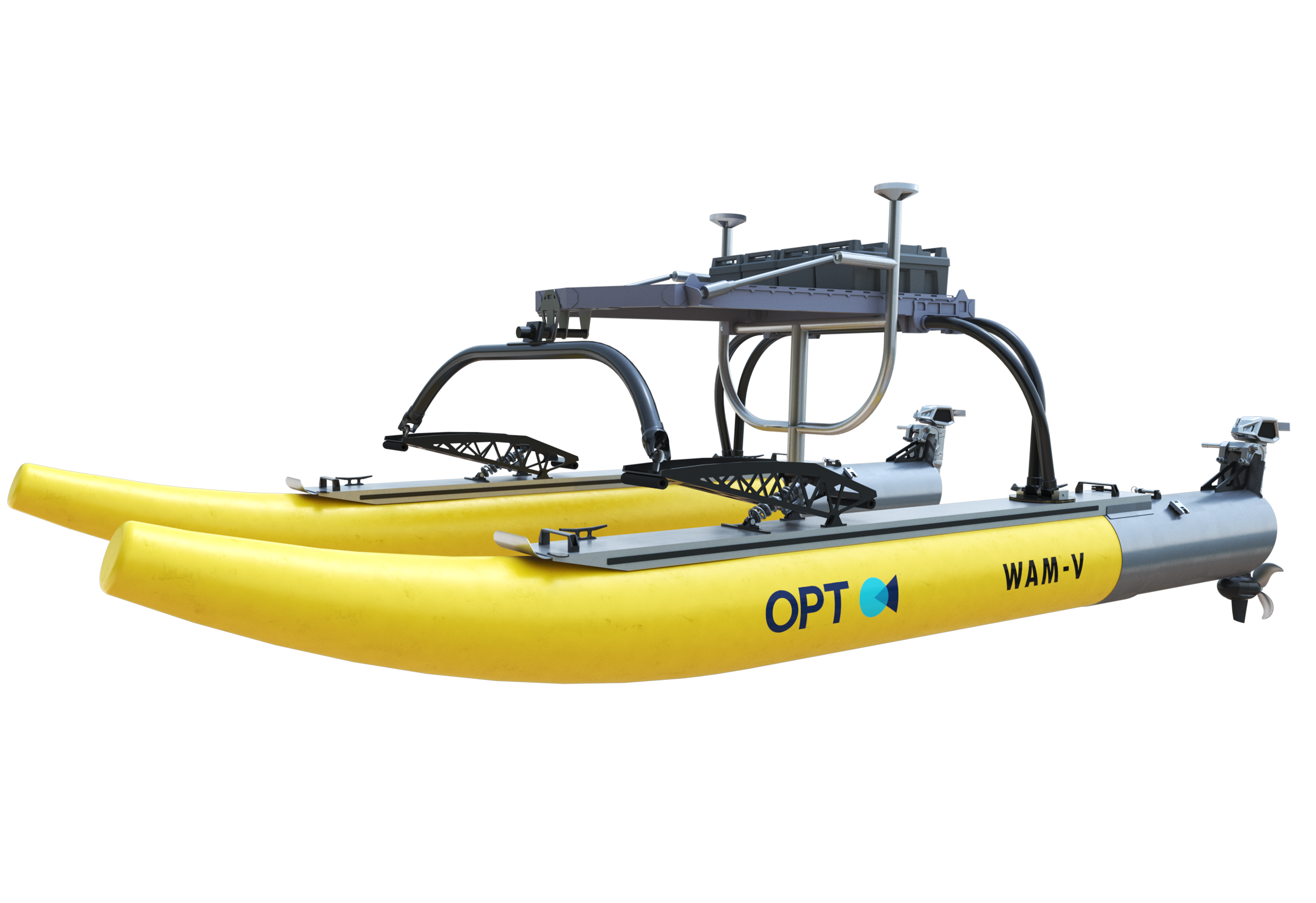

The WAM-V® 16 USV (Unmanned Surface Vehicle) is a next-generation autonomous watercraft designed for marine data collection. It provides a stable survey platform through its articulating suspension system and compliant hulls, which minimize payload movement and improve data accuracy in challenging sea conditions.
The platform is ideally suited for small- to medium-sized marine survey projects, operating either as a standalone survey vessel or as a force multiplier alongside crewed or autonomous platforms. Its lightweight construction and shallow draft enable operations across a wide range of environments, from open ocean to coastal and shoaling waters.
Designed for rapid deployment, the WAM-V® 16 can be assembled and launched by two operators from shore, vessel decks, or trailers, providing flexible and efficient mission support.
Technical specifications
| Parameter | Specification |
|---|---|
| Length | 17.4 ft (5.3 m) |
| Beam | 8 ft (2.4 m) |
| Draft | 25 in (0.64 m) |
| Weight | 757 lb (344 kg) lightship |
| Maximum Speed | Up to 11 kn |
| Endurance | Up to 7.5 hours @ 5 kn |
| Propulsion | 2 × 3 kW electric |
| Batteries | Up to 6 × 3,500 Wh lithium |
| Payload Capacity | 425 lb (193 kg) (4-battery configuration); 325 lb (147 kg) (6-battery configuration) |
| Operable Sea State | Sea State 4 |
Standard Equipment
- GPS waypoint navigation
- Rugged GPS/INS
- Charging system
- MARCODE
- Short-range radio
- Encrypted wireless network
- ROCS
- ROBO-HELM
- 180° field-of-view camera
- Navigation lights
Optional Equipment
- Mobile operator control unit
- Retractable sensor mount
- Rapid charging system
- Sub-bottom profiler
- Multibeam sonar
- Side-scan sonar
- AIS transceiver
- Intermodal freight shipping container
- On-board survey workstation
- UV protective cover
- Custom trailer
- Anemometer
