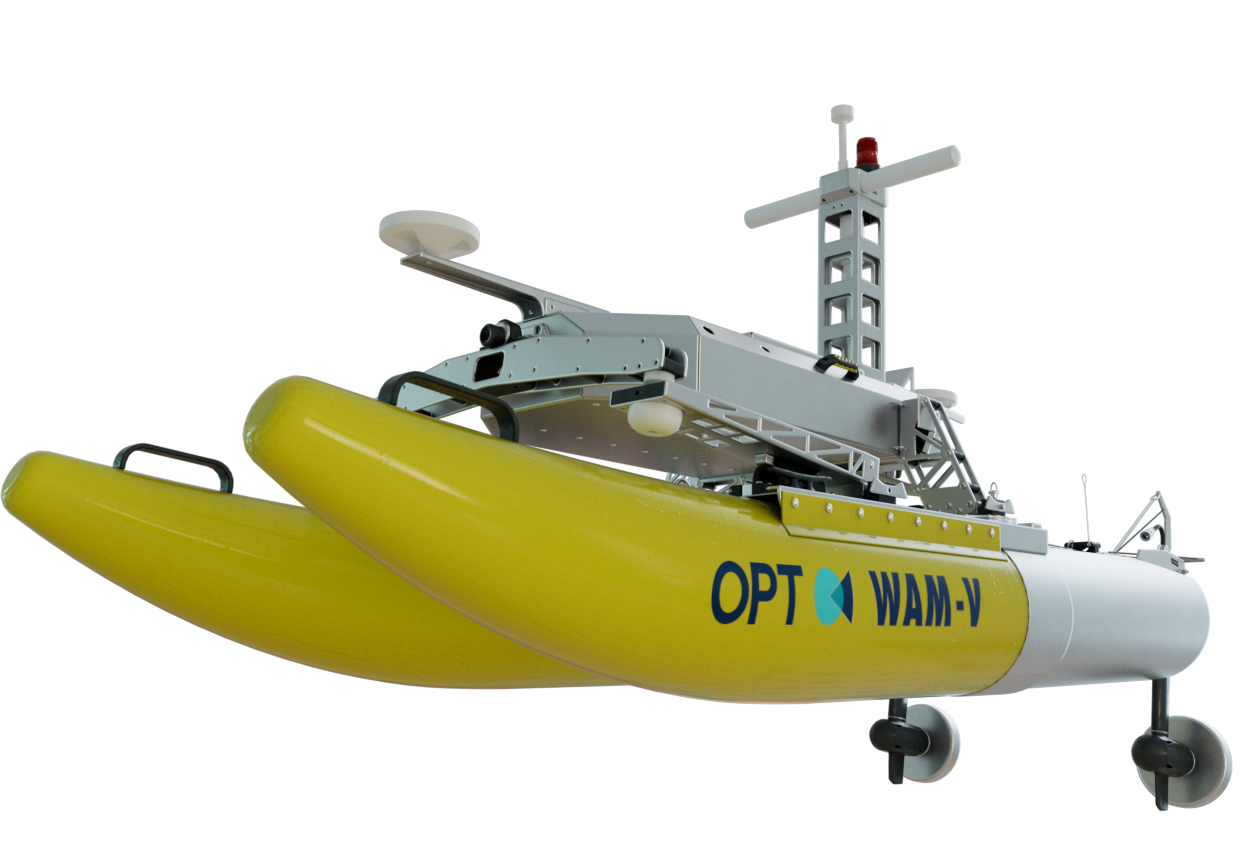

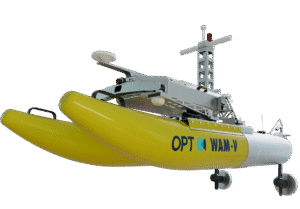

WAM-V® 8
Product descripton: WAM-V® 8 by Ocean Power Technologies (OPT)
The WAM-V® 8 USV is a compact, portable unmanned surface vehicle designed for operations requiring a transportable sensor platform. It is suitable for Hydrographic Survey, Mine Countermeasures (MCM), Intelligence, Surveillance and Reconnaissance (ISR), and marine data collection missions.
The platform features an articulating suspension system and compliant hulls that reduce payload movement, providing stability in varying sea conditions. Its lightweight construction, shallow draft, and compact footprint enable operations in environments ranging from open ocean to shallow inland waterways.
Engineered for maximum portability, the WAM-V® 8 can be loaded into a standard pickup truck, disassembled for transport as checked airline baggage, or backpacked to remote locations. The vehicle can be launched and recovered from shore, vessel decks, or trailers, enabling rapid deployment in remote or constrained operating environments.
Technical specifications
| Parameter | Specification |
|---|---|
| Length | 8 ft (2.7 m) |
| Beam | 4 ft (1.2 m) |
| Draft | 4 in (10 cm) |
| Weight | 340 lb (156.5 kg) lightship |
| Maximum Speed | Up to 6 kn |
| Endurance | Up to 10 hours @ 3 kn |
| Payload Capacity | 100 lb (45 kg) |
| Batteries | Li-ion |
| Propulsion | 2 × 1100 W electric |
| Operable Sea State | Sea State 3 |
Standard Equipment
- GPS waypoint navigation
- Rugged GPS/INS
- Charging system
- MARCODE
- Short-range radio
- Encrypted wireless network
- ROCS
- ROBO-HELM
- 180° field-of-view camera
- Navigation lights
Optional Equipment
- Mobile operator control unit
- Retractable sensor mount
- Multibeam sonar
- Sub-bottom profiler
- AIS transceiver
- Intermodal freight shipping container
- On-board survey workstation
- UV protective cover
- Custom trailer
- Anemometer
