WinFly 13
Product descripton: WinFly 13 by WinFly

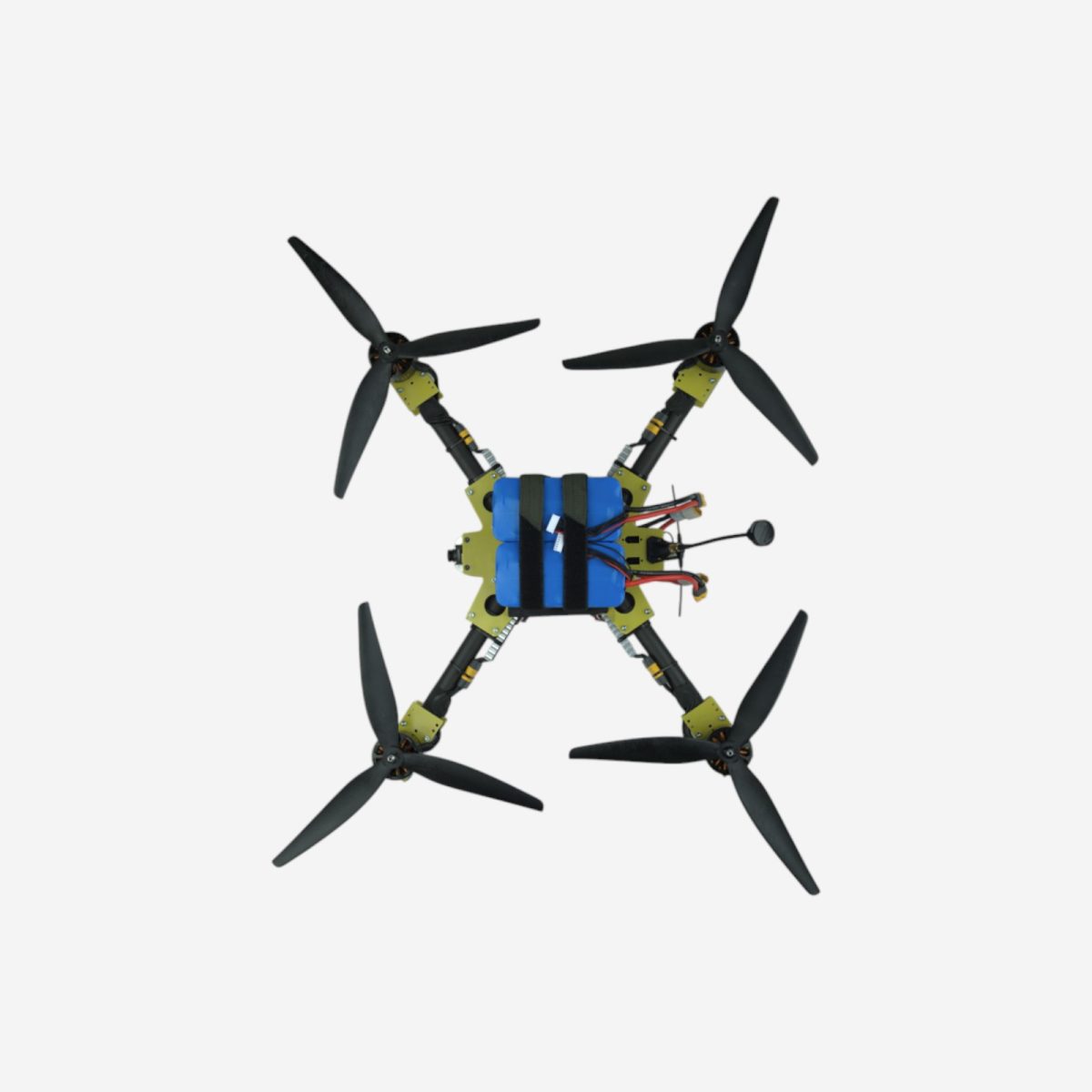

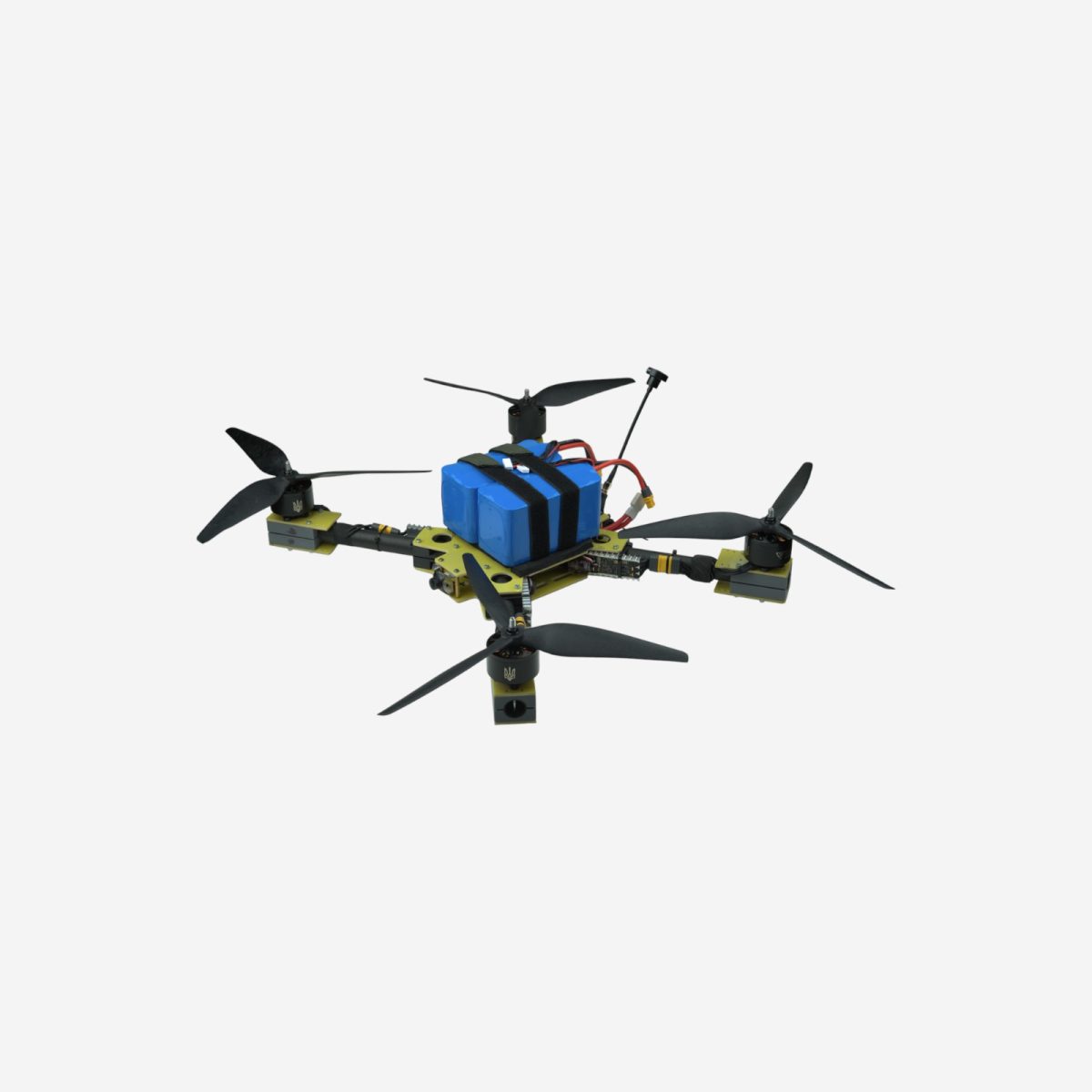

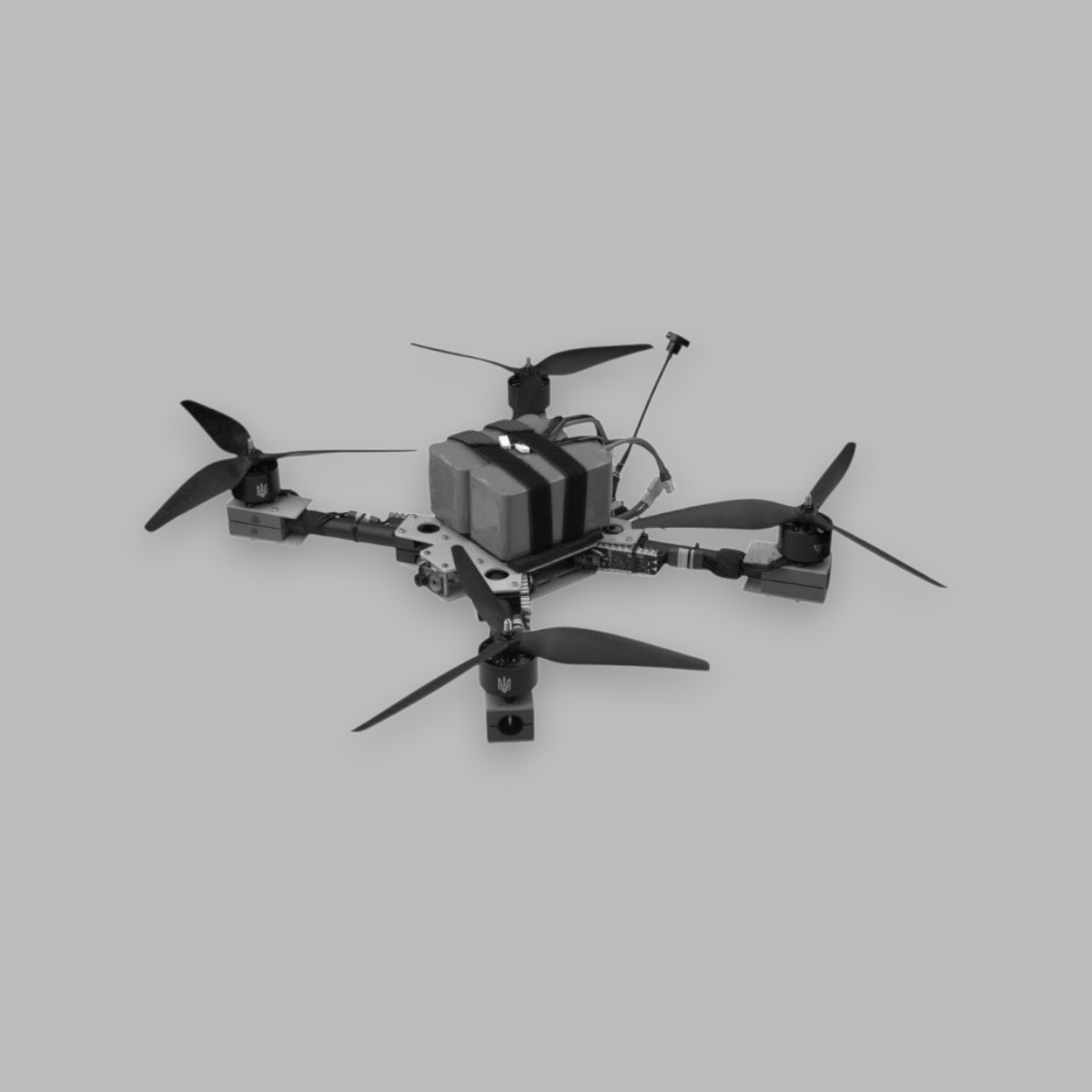

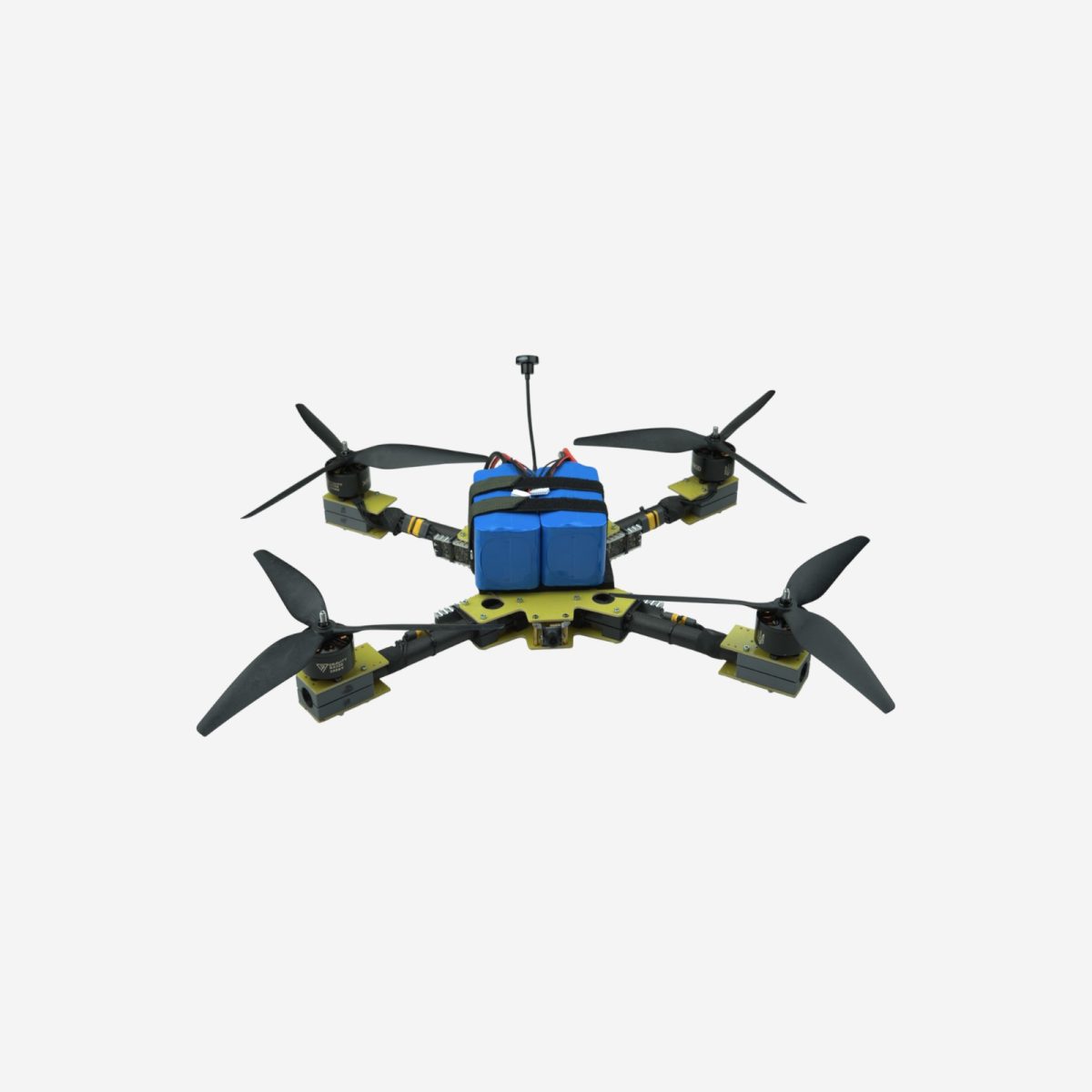

The WINFLY-13 Unmanned Aerial Vehicle (UAV) System is designed to perform a variety of tactical and reconnaissance missions, both day and night, under standard weather conditions. The system includes a high-payload multirotor drone capable of carrying diverse optical-electronic reconnaissance modules, including day, night, thermal, and hybrid vision systems.
This drone is equipped with advanced control and video transmission modules, ensuring reliable long-range performance. Its construction allows for modular upgrades, including an optional initiation board and payload release system. The WINFLY-13 is suitable for experienced operators and can be deployed rapidly, requiring only a few minutes for flight readiness.
The system includes:
-
Unmanned aerial vehicle (UAV)
-
Control station (supplied separately)
-
Signal relay system (supplied separately)
- Accompanying documentation
Technical specifications
| Specification | Value |
|---|---|
| Maximum flight range without ground station | 8 km |
| Maximum flight range with ground station | 20+ km |
| Flight duration | Up to 20 minutes |
| Payload capacity | Up to 5 kg |
| Detection and recognition range for typical targets | 300 m |
| UAV type | Multirotor |
| Available optical-electronic systems | Day / Night / Thermal / Thermal + Night / Analog video |
| Deployment and flight preparation time | 3 minutes |
| Frame | Bumblebee 13 |
| Flight stack | JHEMCU GF30F722 ICM F722 or equivalent |
| Motors | FlashHobby 4320 350kv or equivalent |
| Video transmitter | AKK Ultra Long Range 3W or equivalent |
| Video transmission antenna | Foxeer Pagoda PRO 5.8GHz 150mm or equivalent |
| Radio receiver | BetaFPV SuperD ELRS Diversity 915MHz or equivalent |
| Propellers | HQProp X-Class 13X9X3 or equivalent |
| Battery | 6S3P 15000mAh Samsung 50S – 2 pcs |
| Initiation board and payload release system compatibility | Yes |
