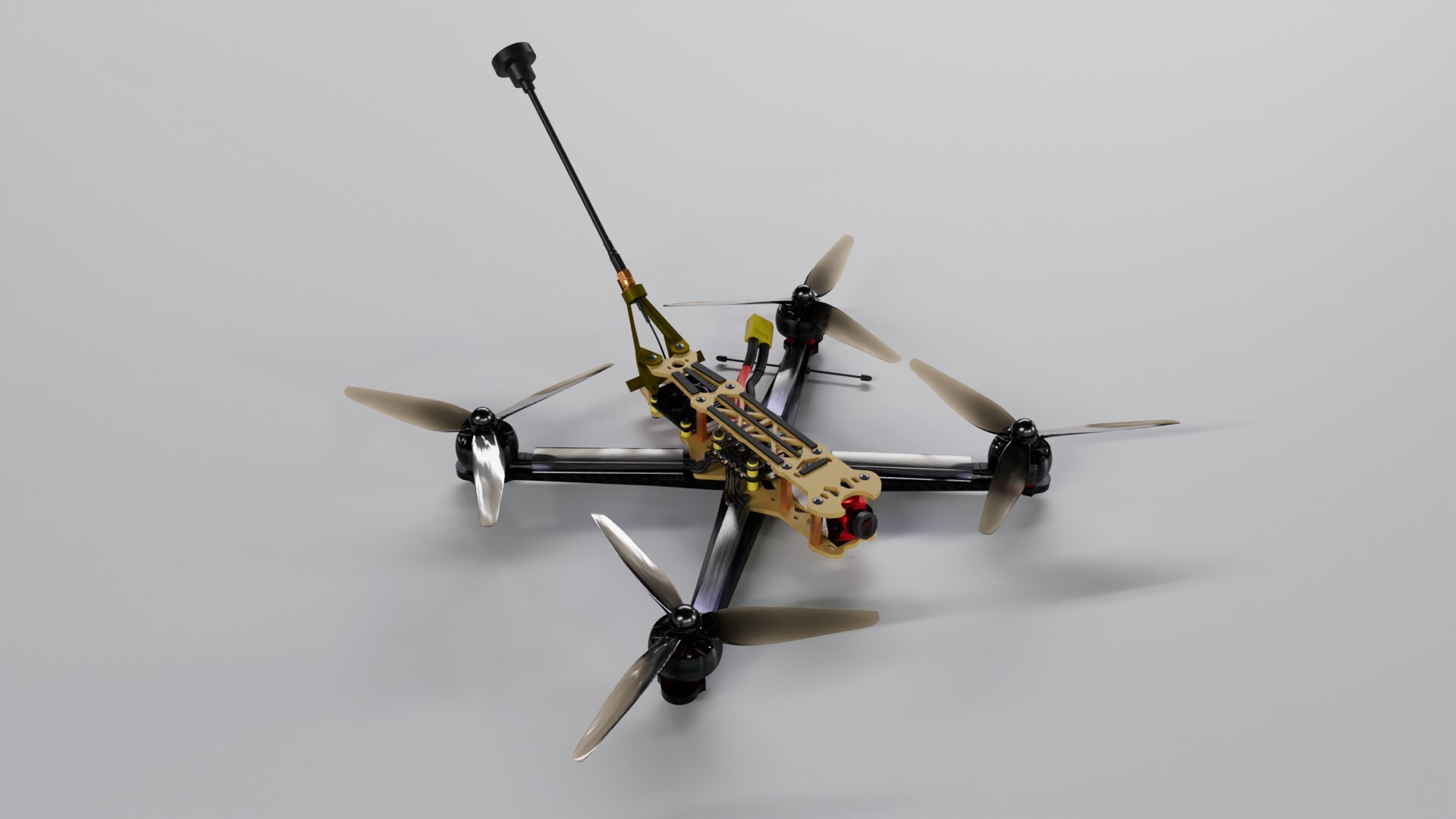

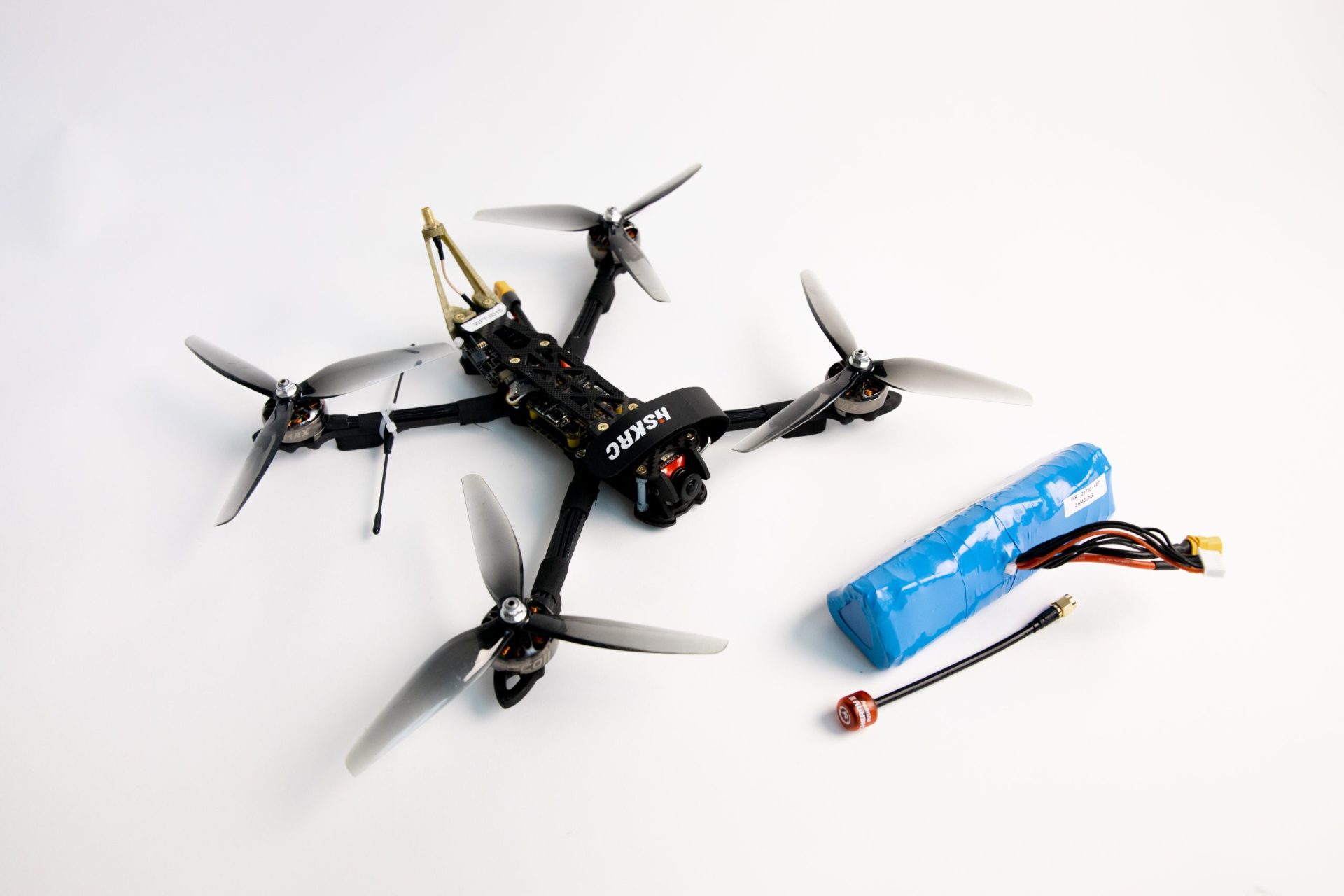

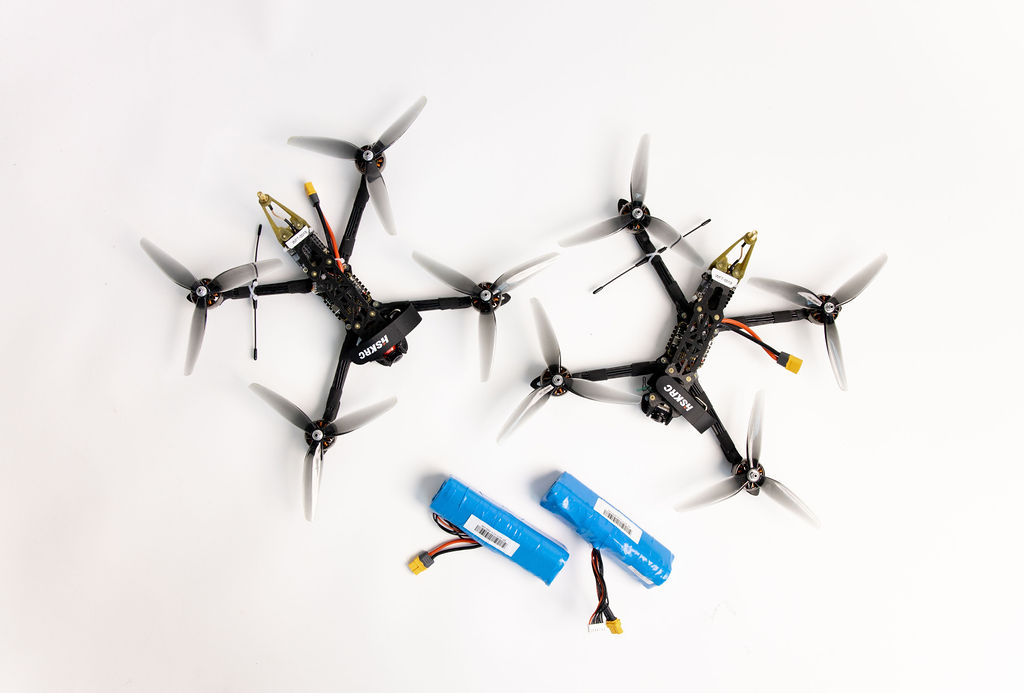

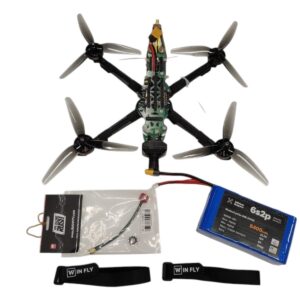

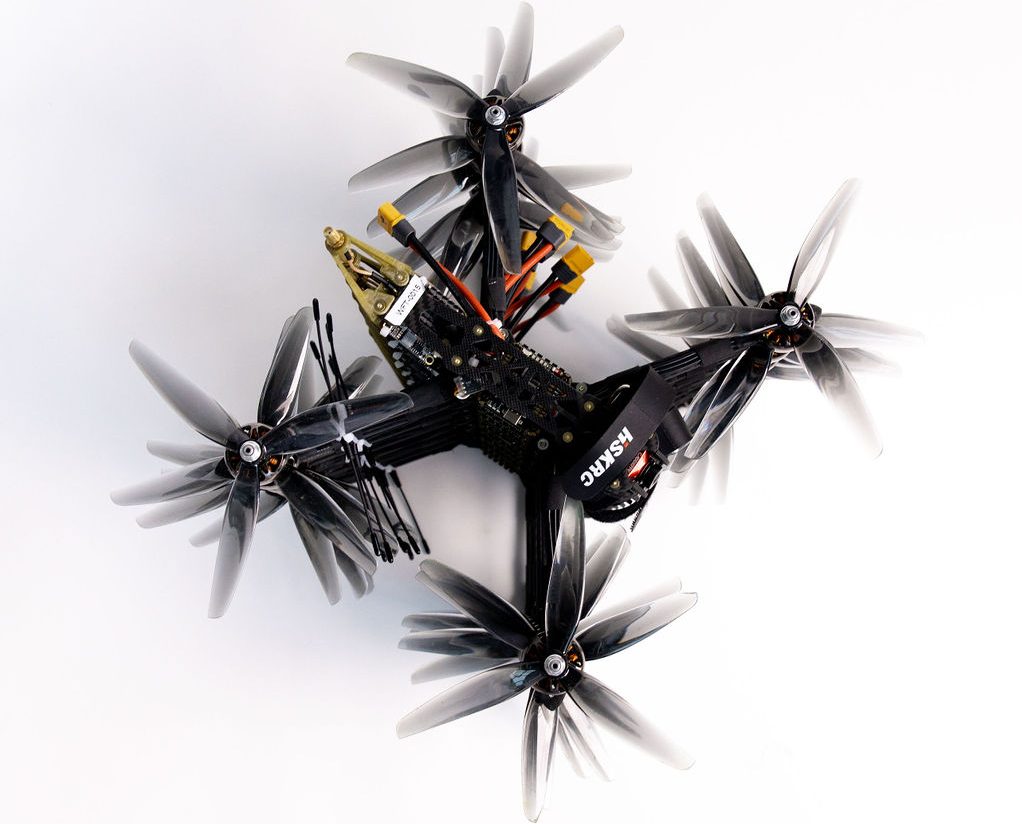

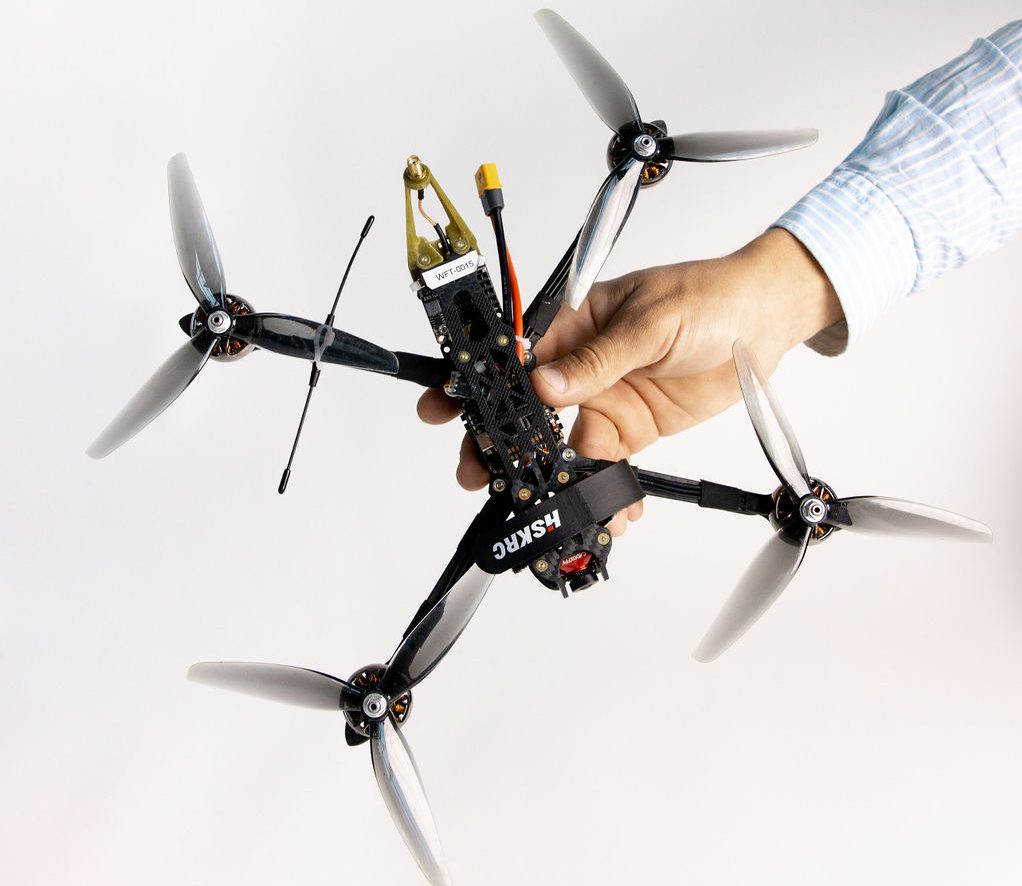

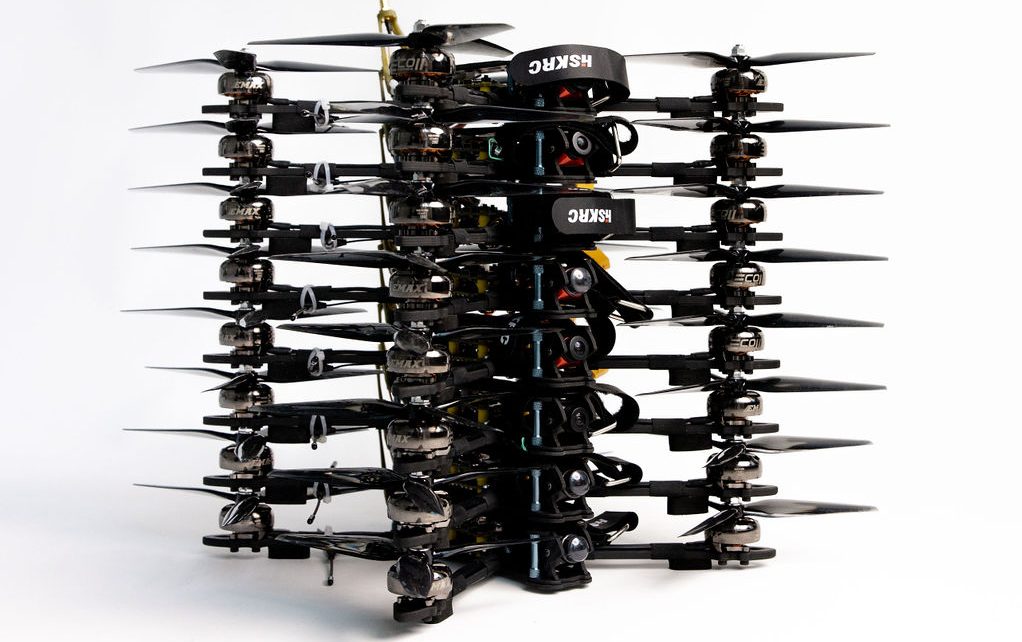

WinFly 7
Product descripton: WinFly 7 by WinFly
The WinFly 7 UAV is designed for daytime and nighttime combat missions targeting both personnel and light-to-heavy armored vehicles under straightforward weather conditions. It is crafted for experienced pilots (minimum 120 hours of flight training) and offers a deployment-ready loitering munition platform capable of intercepting enemy targets at tactical ranges up to 7–19 km when aided by relay systems. The drone supports analog and infrared day/night vision, features a responsive ExpressLRS control link, and is field-deployable in under 3 minutes.
Technical specifications
| Specification | Value |
| Maximum Take-Off Weight (MTOW) | 2.5 kg |
| Maximum Payload Weight | 1.5 kg |
| Dimensions (W × D × H) | 360 × 320 × 50 mm |
| Max Flight Range (no relay) | 7 km |
| Flight Range (with relay) | 19 km |
| Detection/Recognition Range (tank, car, tall figure) | 100 m |
| Tactical Radius | 7–19 km |
| Deployment/Flight Prep Time | ~3 minutes |
| Flight Duration | Up to 25 minutes |
| Time from Launch Arm Suspension to Flight | ~3 minutes |
| Flight Altitude (max / working) | 500 m / 50 m |
| Flight Speeds (min / cruise / max) | 10 / 60 / 100 km/h |
| RMS Target Accuracy | ~1.5 m |
| Camera Options | Caddx Ratel 2 (day) / Custom IR (night) |
| Combat Payload Type | Cumulative explosive (~1.5 kg) |
