WinFly 8
Product descripton: WinFly 8 by WinFly

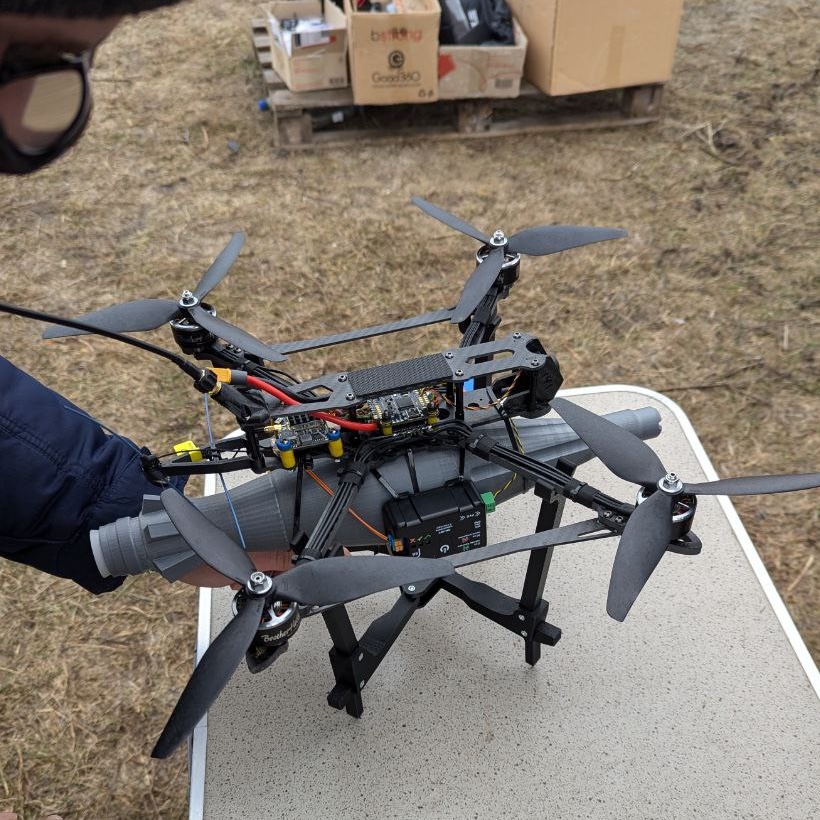

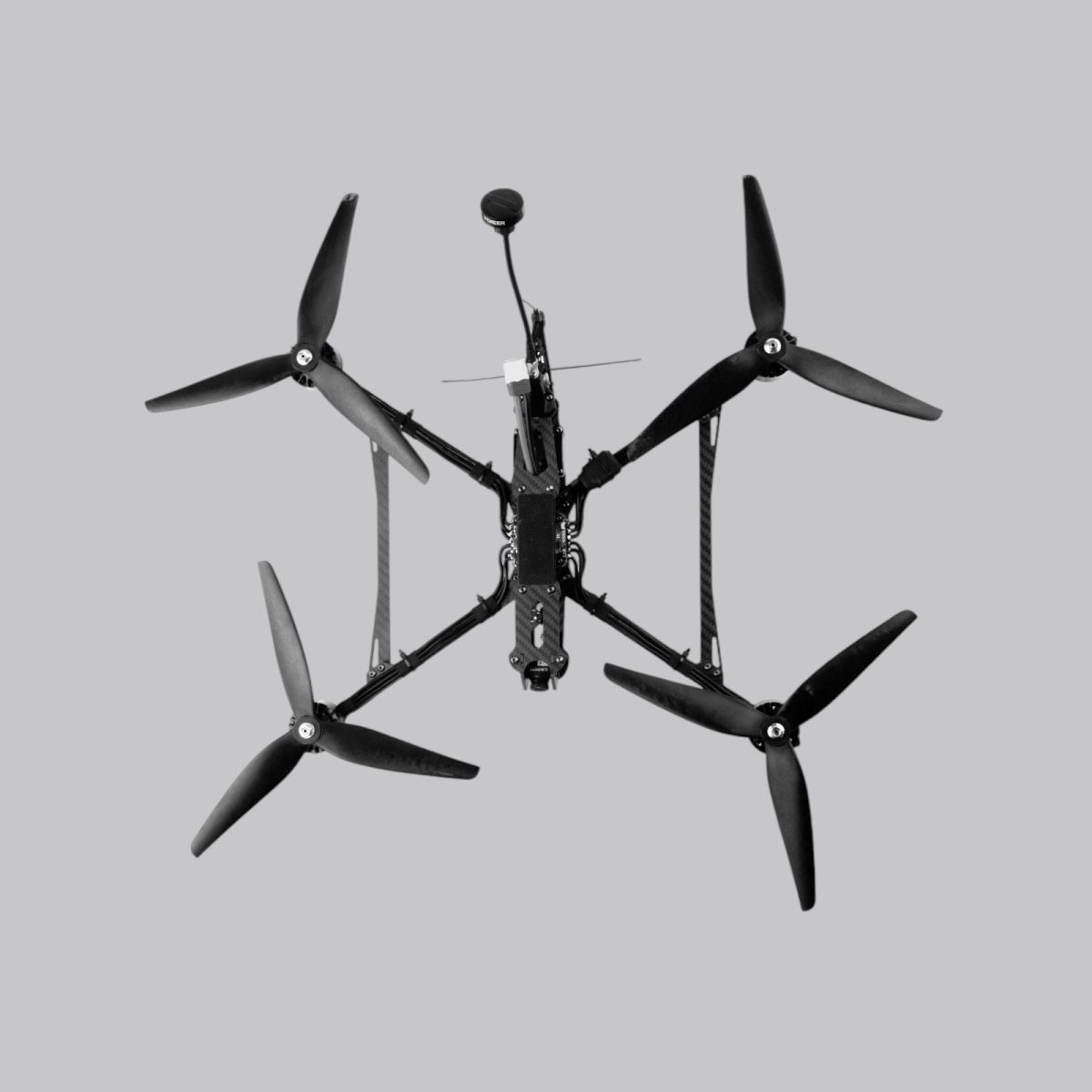

The WINFLY-8 unmanned aerial vehicle is designed to perform combat missions to destroy enemy manpower and lightly and heavily armored targets from the air, day and night, in simple weather conditions.
- Unmanned aerial vehicle
- Management system (sold separately)
- Retransmission complex (sold separately)
- Supporting documentation
The product is codified according to NATO standards!
Technical specifications
| Specification | Value |
| UAV Type | Multicopter |
| UAV Dimensions (W × L × H), mm | 400 × 400 × 130 |
| Maximum Takeoff Weight | 4.6 kg |
| Maximum Payload Weight | 2.6 kg |
| Flight Duration | up to 25 min |
| Maximum Flight Range (without relay) | 7 km |
| Maximum Flight Range (with relay) | 20 km |
| Tactical Operational Range | up to 20 km |
| Maximum Flight Altitude | 1500 m |
| Operational Flight Altitude | 5-500 m |
| Flight Speed – Minimum | 0 km/h |
| Flight Speed – Cruise | 60 km/h |
| Flight Speed – Maximum | 120 km/h |
| Deployment and Flight Preparation Time | 2 min |
| Detection & Recognition Range (tank/vehicle/human figure) | 200 m |
| Available Electro-Optical Tools | Analog video camera (1200–1800 TVL), Thermal imaging camera (256 × 192) |
