ZPX-1 IFF Mode 5 Transponder / Receiver
Product descripton: ZPX-1 IFF Mode 5 Transponder / Receiver by uAvionix Corporation

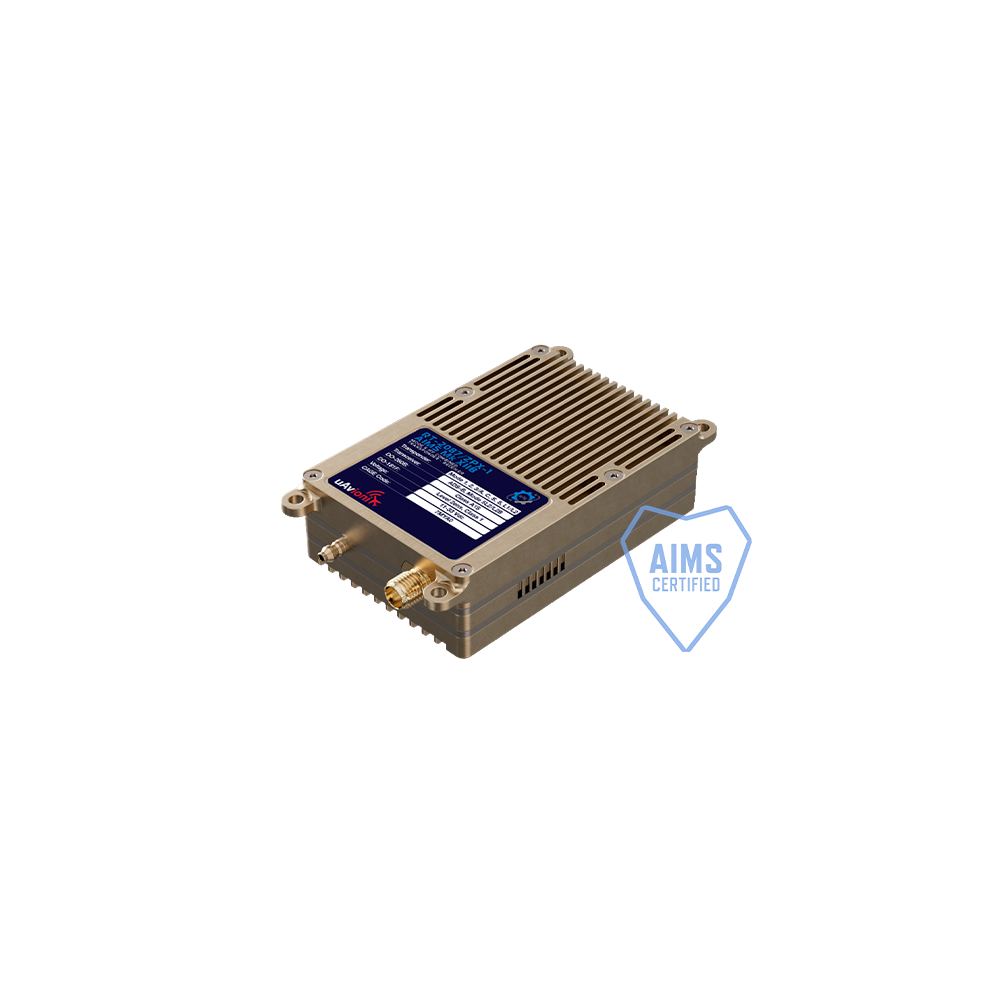

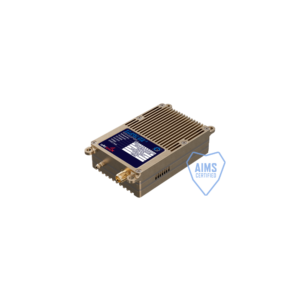

The RT-2087/ZPX-1 is a compact, low-SWaP Combat ID system that meets IFF Transponder and ADS-B requirements for UAS in both military and civilian airspace.
When paired with a micro-crypto like the KIV-79, even Group 2 and larger UAS gain access to NATO-standard IFF encryption. AIMS-certified, the ZPX-1 also enables upgrades such as Mode S Enhanced Surveillance, ADS-B IN, and Mode 5 Level 2/2-B receive capability to support Detect and Avoid functionality—all while maintaining a minimal SWaP footprint ideal for small uncrewed platforms.
Primary Features
Optimized for Efficiency
Designed for high-performance UAS missions, the ZPX-1 delivers a balance of military-grade functionality and a compact footprint, making it suitable for Group 2 and larger UAS platforms as well as long-endurance operations.
Mission-Ready, Simplified
All ZPX systems are compatible with crypto-appliqué and compliant with civil airspace requirements via Mode S / 1090ES ADS-B transponders, streamlining aircraft configurations and deployment.
AIMS Certified for Secure Airspace
The ZPX-1 meets AIMS Mk XIIB and DoD AIMS 17-1000B standards, providing trusted Mode 5 Level 1/2 and Level 2 Broadcast IFF capabilities for secure military airspace operations.
Additional Features
Reliable System Performance
Ensures consistent and dependable operation across all mission profiles.
Adaptable Power Supply
Supports multiple power modes to meet diverse mission requirements.
Durable and Reliable
Engineered to operate in extreme conditions, from -45° to 71° C.
Precision Sensing
High-sensitivity sensors enable accurate reception and transmission of surveillance signals.
Enhanced Surveillance Functions
Supports advanced airspace integration and situational awareness via EHS and ADS-B capabilities.
Broad Operational Range
Capable of performing effectively at both low and high altitudes.
Versatile Connectivity
Multiple interfaces and protocols allow seamless integration with existing systems.
Technical specifications
| Specification | Value |
|---|---|
| Input Voltage/Power | 11–33 VDC 3.5 W Continuous (STBY) 5.5 W Continuous (NORMAL) 6 W Peak (8 ms maximum) |
| Size | 83 x 47 x 21 mm |
| Weight | 91 grams |
| Operating Temperature | -45° to 71° C |
| Transponder | SIF & Mode S MTL @ 1030 MHz MTL (sensitivity): -76 dBm ±2 dB Mode 5 MTL (sensitivity): -80 dBm 1090 MHz Tx Power: 250 W (54 dBm) |
| Receiver Sensitivity | ADS-B Rx MDL: -79 dBm ±2 dB Mode 5 MDL L2/2-B Rx: -84 dBm |
| Altimeter | Range: -1000 to 126,750 ft |
| Control Interface | Baud Rate: 57,600 bps RS-485/-232 Protocol: GDL90+ |
| Position Interface | Baud Rate: 115,200 bps RS-232 Protocol: uAvionix OEM Protocol |
| Mode 5 Level 2/2B and ADS-B IN Traffic | Baud Rate: 115,200 bps RS-232 Protocol: GDL90+ / DoD AIMS 23-901 |
| KIV Interface | AIMS 04-900(A) Option B (KIV-77 / KIV-79) |
| Options | 1030/1090 MHz Transponder Antenna 10/100 Ethernet Adapter uAvionix truFYX SIL 3 Position Source NSM programming for crypto emulator |
