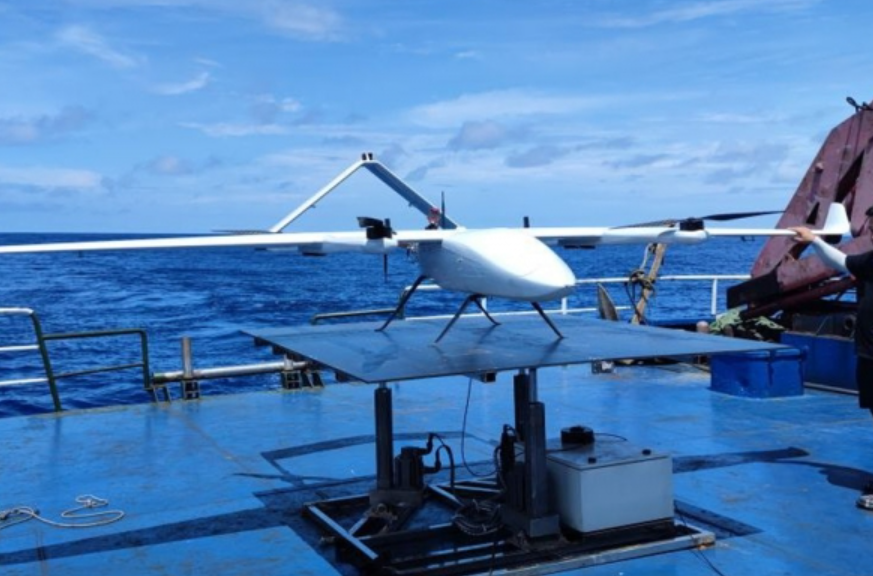

Star-X VTOL-4910HP VTOL UAV
Product descripton: Star-X VTOL-4910HP VTOL UAV by Austars Model
The Star-X VTOL-4910HP is a long-endurance, maritime-focused VTOL UAV designed for industrial and government applications including maritime reconnaissance, inspection, rescue, environmental monitoring, and anti-submarine operations. Optimized in 2023 by TeamAustars, the aircraft features a modular design for fast deployment and quick-release plug-and-play mechanisms for assembly in under five minutes. Its adaptive pitot system allows stable flight in extreme weather conditions, including cold, humid, hot, and winter environments. The VTOL-4910HP supports payloads of 5–20 kg and can be integrated into swarm configurations with four drones controlled by a single station for extended operational coverage (1,000–2,000 km radius). The system accommodates multiple engine options (EFI and Heavy Fuel) and offers optional datalinks, professional/military ground stations, and industrial cameras or PODs.
Technical specifications
| Specification | Value |
|---|---|
| Wingspan | 4,910 mm |
| Length | 2,840 mm |
| Maximum Takeoff Weight (MTOW) | 64 kg |
| Maximum Payload | 5–20 kg |
| Endurance | 12 h (10 h with 5 kg payload tested) |
| Flight Range | 50–200 km (customizable up to transceiver/SATCOM) |
| Cruise Speed | 80–110 km/h |
| Maximum Speed | 130 km/h |
| Maximum Altitude (AMSL) | 3,500–7,000 m |
| Maximum Wind Resistance | 12 m/s |
| Operating Temperature | -10 °C to +45 °C |
| Fuel Tank | 22 L |
| Landing Speed (Car) | 30 km/h |
| Landing Speed (Ship) | 15 knots |
| Engine Options | 120–170 cc EFI (e.g., LID 120cc B2H EFI, DLE130cc EFI, LID 170cc B2G EFI) |
| Optional Swarm Configuration | 4 drones controlled by one station |
| Standard Kit | Airframe, VTOL arm sets, fuel tank, navigation lights, airspeed pitot, front & rear landing gears, transport box |
| Optional Packages | e-Power System Package, industrial HD servos, customized ESC/motors, UAV batteries, avionics, RC controller, datalink, GCS, industrial camera/POD |
| Materials | Composite and carbon fiber (CF version with carbon reinforcement) |
| Features | Modular PNP design, quick assembly, adaptive pitot for extreme weather, vibration damping system |
