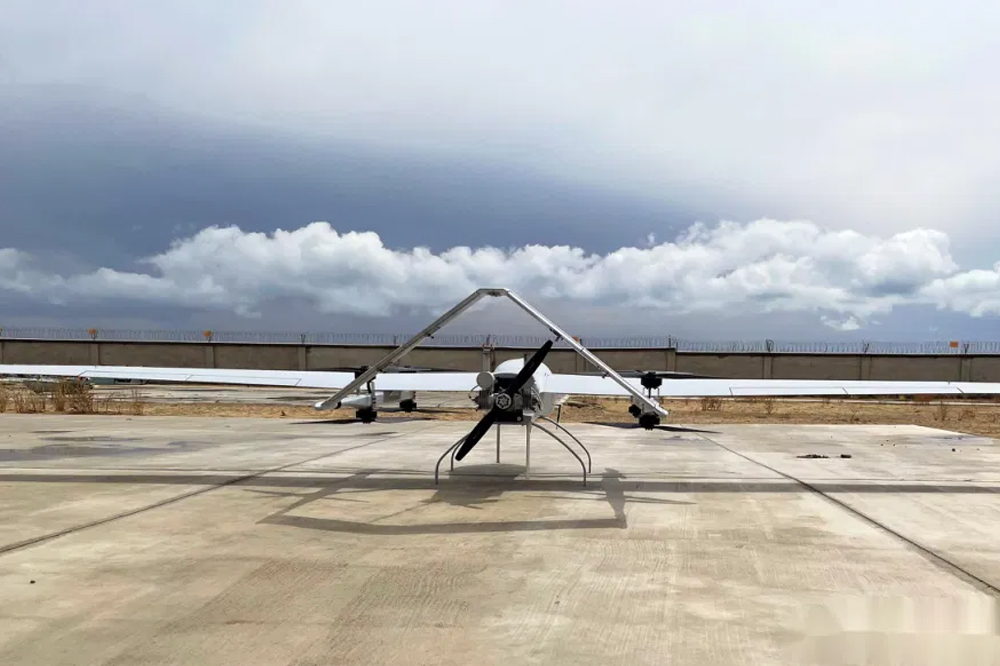

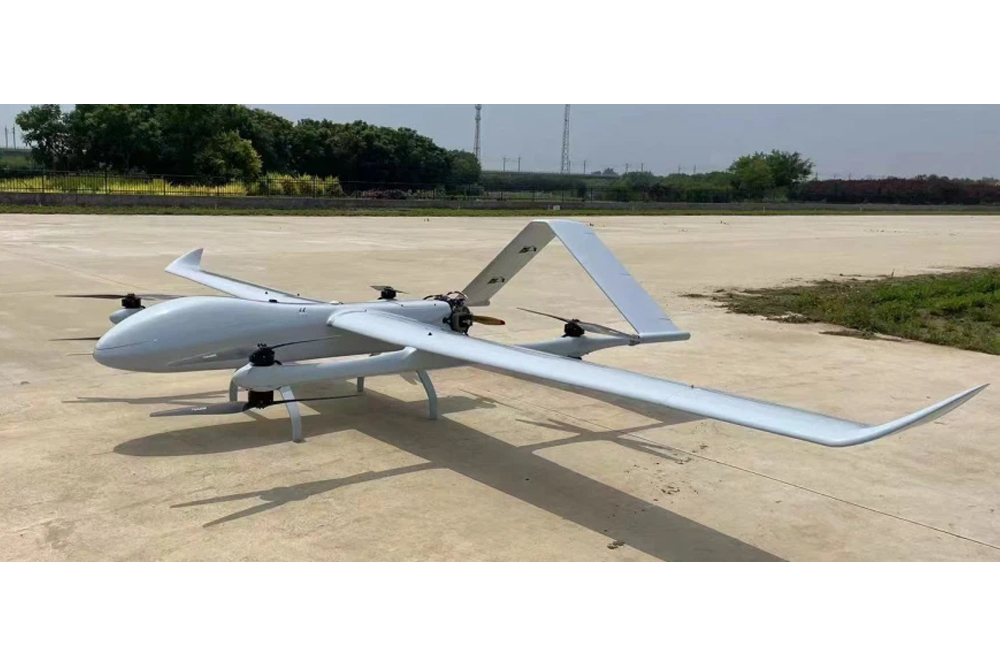

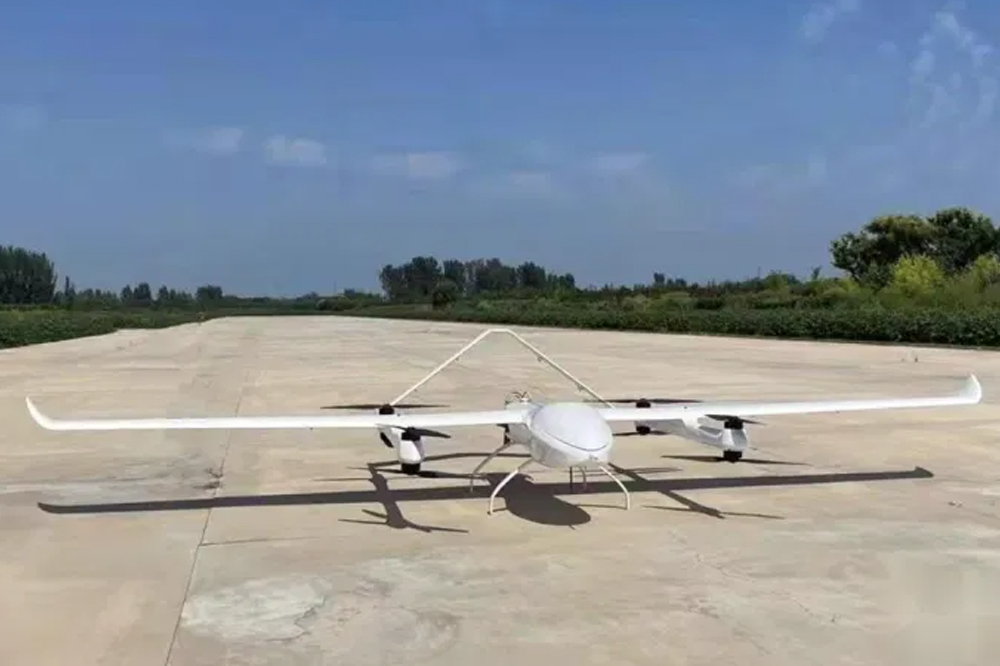

Star-X VTOL-7000HP VTOL UAV
Product descripton: Star-X VTOL-7000HP VTOL UAV by Austars Model
The Star-X VTOL-7000HP is a high-performance X8 coaxial VTOL UAV designed for commercial and industrial applications, including cargo transport, fire rescue, and border reconnaissance. Optimized in 2023 and released in early 2024 by TeamAustars, the aircraft features a robust composite and carbon fiber structure (CF version with reinforced surfaces) for maximum rigidity and long-term durability. With a full fuel tank of 40 L, the VTOL-7000HP can carry up to 80 kg of payload, achieving up to 8 hours endurance and ranges of 600 km (EFI engine) to 700–800 km (heavy fuel engine). Its modular design allows quick deployment, and the platform includes aviation-class components for reliability in demanding operational environments. The UAV is compatible with various industrial-grade engines, payloads, and optional mission systems.
Technical specifications
| Specification | Value |
|---|---|
| Wingspan | 7,000 mm |
| Length | 3,000 mm |
| Maximum Takeoff Weight (MTOW) | 180 kg |
| Maximum Payload | 80 kg |
| Endurance | Up to 8 h |
| Maximum Range | 600 km (EFI engine), 700–800 km (Heavy Fuel engine) |
| Cruise Speed | 120 km/h |
| Maximum Altitude | 4,500–7,000 m (depends on engine option) |
| Fuel Tank | 40 L |
| Engine Options | 250–340 cc UAV engines (e.g., Limbach 275 EFI, Limbach 288 EFI/HFE, LID B2H-290 EFI/HFE, QRS 312 EFI/HF) |
| Height to Ground | 704 mm |

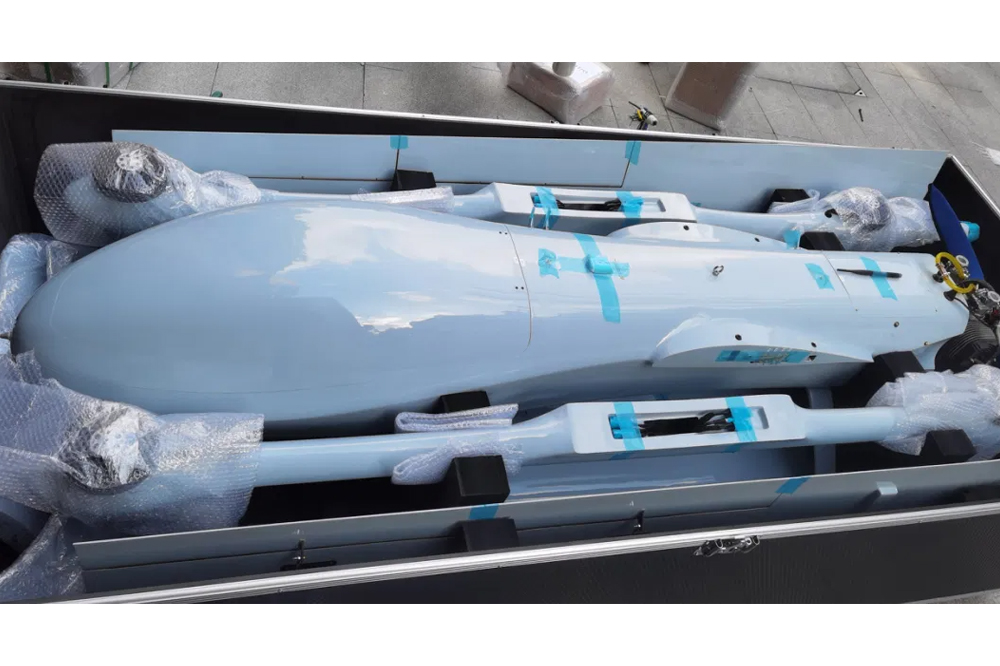

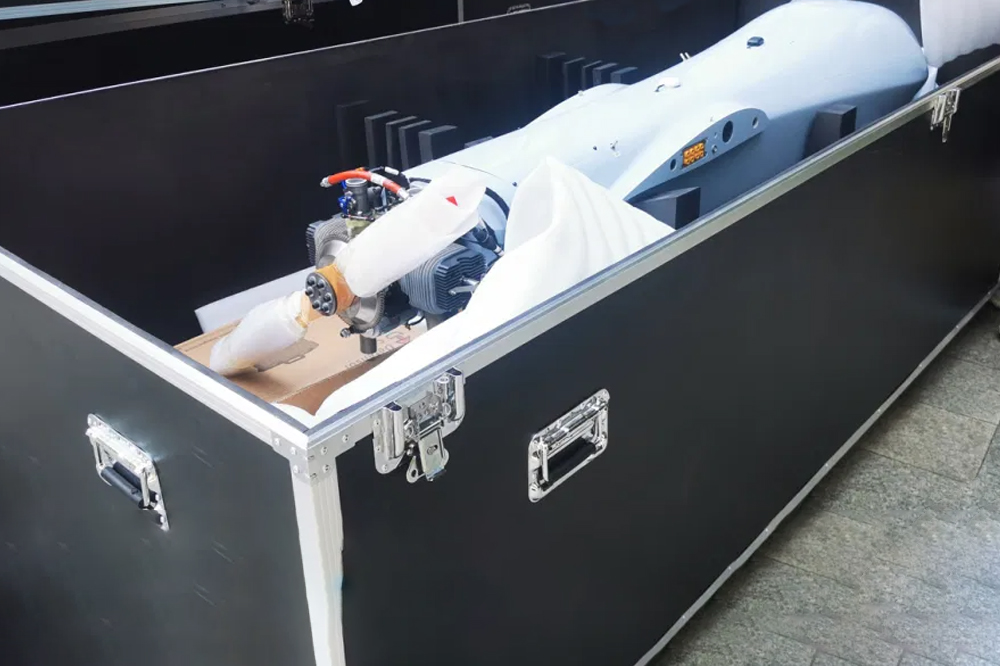

| Standard Kit Includes | Airframe, front & rear cockpit covers, VTOL arm sets, fuel tank, navigation lights, front & rear landing gears |
| Materials | Full composite and carbon fiber (CF version reinforced) |
| Features | Modular design, heavy-lift capacity, long-endurance, compatible with industrial payloads |
